Quick Details
-
Screw Speed (rpm):
-
40 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Faygo Union
-
Voltage:
-
51
-
Dimension(L*W*H):
-
3.6*1.1*2.1
-
Power (kW):
-
12
-
Weight:
-
3000 KG
-
Color:
-
Customer Choice
-
Finished Products:
-
Sheet Pipe
-
Usage:
-
Wide Usage
-
Center height:
-
1050-1100mm
-
marketing type:
-
Oridinary type
-
Keywords:
-
PVC Pipe Extruder Line
-
Test:
-
before delivery
-
Function:
-
Extrution
-
Temperature control:
-
Omron Brand
-
Suitable material:
-
PVC UPVC Mixed Powder
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
22:1
-
Screw diameter (mm):
-
51
-
Screw Speed (rpm):
-
40 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Faygo Union
-
Voltage:
-
51
-
Dimension(L*W*H):
-
3.6*1.1*2.1
-
Power (kW):
-
12
-
Weight:
-
3000 KG
-
Color:
-
Customer Choice
-
Finished Products:
-
Sheet Pipe
-
Usage:
-
Wide Usage
-
Center height:
-
1050-1100mm
-
marketing type:
-
Oridinary type
-
Keywords:
-
PVC Pipe Extruder Line
-
Test:
-
before delivery
-
Function:
-
Extrution
-
Temperature control:
-
Omron Brand
-
Suitable material:
-
PVC UPVC Mixed Powder
Production Introduction

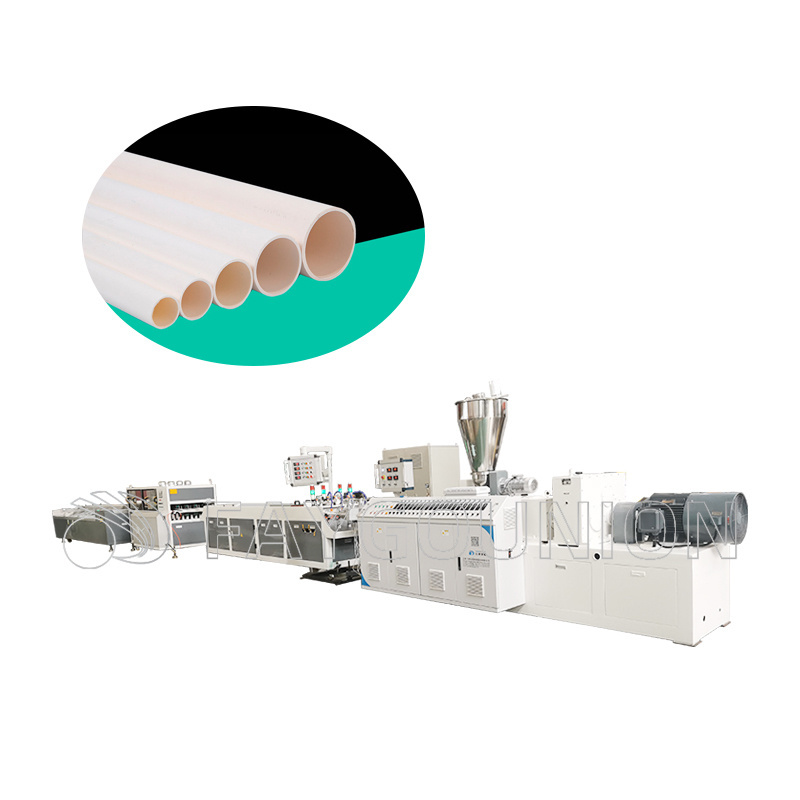

>>PVC Plastic pipe making machine
is mainly used in the production of Agricultural water supply & water discharge system, architectural water supply & discharge system, wire laying system, etc. purposes.
>>
The unit consists of Conical (Parallel) double screw extruder-PVC pipe mold-Vacuum forming tank-Haul-off machine-Cutting machine-Stacker / Belling machine.
>>
And the line can be equipped with Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade pipes.
>>Process Flow:
Screw Loader for Mixer→ Mixer unit→ Screw Loader for Extruder→ Conical Twin Screw Extruder → Mold → Vacuum Calibration Tank → Four claws Haul-off → Planetary Saw Cutter → Belling machine/ Tripping Table → Final Product Inspecting & Packing.
Product Features
Conical Twin Screw Extruder
>>High specific output for mild plasticization of PVC material
>>High melt homogenity even with high-filled material formulations
>>Optimized material feeding system for stable production of PVC-U powder
>>Bimetallic material screw and barrel ensuring long time working without trouble
>>Suitable for PVC-U high-filled pipe production
>>Output range from 150 kg/h~ 900 kg/h
>>Touch screen control panel
>>User friendly software developed by FAYGO
>>AC motor drive by inverter
>>Vertical integrated structured gear box
>>Equipped with degassing zone
Specification
|
Model
|
SJZ-51
|
SJZ-55
|
SJZ-65
|
SJZ-80
|
SJZ-92
|
|
Screw Dia.(mm)
|
51/105
|
55/110
|
65/132
|
80/156
|
92/188
|
|
Max. Rotating speed(rpm)
|
40
|
38
|
38
|
37
|
36
|
|
Main Motor(kw)
|
18.5
|
22
|
37
|
55
|
90
|
|
Capacity(kg/h)
|
80~100
|
100~150
|
150~250
|
250~380
|
380~700
|
|
Center height(mm)
|
1050
|
1050
|
1050
|
1050
|
1100
|
|
Net Weight(kg)
|
3000
|
3500
|
4000
|
5500
|
8000
|
|
L*W*H
|
3.6*1.1*2.1
|
3.6*1.1*2.1
|
4.2*1.1*2.1
|
4.7*1.5*2.4
|
6*1.6*2.5
|
Mold
>>Suitable for PVC-U and CPVC pipe production.
>>Diameter range from Ø16 to Ø1000 mm
>>High melt homogenity.
>>Low pressure built up even with high outputs.
>>Melt channel distribution system.
>>Equipped with seramic heaters.
>>Pipe head carriage for easy movement
>>Pipe heads are designed according to application requirements.
>>Easy maintenance thanks to the optimized and proven designed construction.
>>Diameter range from Ø16 to Ø1000 mm
>>High melt homogenity.
>>Low pressure built up even with high outputs.
>>Melt channel distribution system.
>>Equipped with seramic heaters.
>>Pipe head carriage for easy movement
>>Pipe heads are designed according to application requirements.
>>Easy maintenance thanks to the optimized and proven designed construction.
Vacuum Calibration Tank
>>Suitable for PVC pipe production.
>>Diameter range from Ø16 to Ø1000 mm.
>>Length up to 12000 mm.
>>304 stainless steel with painted outer surface
>>Special water sprays are located on the best position for cooling the pipe efficiently.
>>Special and easy adjusted pipe supports for each pipe diameter.
>>Installed vacuum and water pumps can work without any maintenance for long times.
>>Special cooling baths can be designed for specific extrusion production.
>>Diameter range from Ø16 to Ø1000 mm.
>>Length up to 12000 mm.
>>304 stainless steel with painted outer surface
>>Special water sprays are located on the best position for cooling the pipe efficiently.
>>Special and easy adjusted pipe supports for each pipe diameter.
>>Installed vacuum and water pumps can work without any maintenance for long times.
>>Special cooling baths can be designed for specific extrusion production.
Haul Off Machine
>>Pipe range from Ø16 to Ø1000 mm
>>High pulling force without lose the shape of the pipes
>>Equipped with 2, 3, 4, 6, 8 or 10 caterpillars according to the application
>>Motorized positioning of the lower caterpillars
>>High pulling force without lose the shape of the pipes
>>Equipped with 2, 3, 4, 6, 8 or 10 caterpillars according to the application
>>Motorized positioning of the lower caterpillars
Haul Off Machine
>>Simple operation
>>Completely closed protection for maximum safety
>>Chain conveyors with special rubber pads on chains which do no mark on the pipe.
>>Synchronization with the extruder screw speed allows stable production during changing the production speed
>>Completely closed protection for maximum safety
>>Chain conveyors with special rubber pads on chains which do no mark on the pipe.
>>Synchronization with the extruder screw speed allows stable production during changing the production speed
Planetary Cutting Machine
>>Automatic s
ynchronization
with extrusion speed.
>>Planetary equipped with disk and milling cutter for cut and chamfer.
>>Touch screen control panel
>>User friendly software developed by FAYGO
>>All movements are motorised and controlled by control panel
>>Pipe blocking vices device
>>Type of the cutting unit is chose depend on pipe
>>Less maintenance needs
>>Completely closed and secured machine for maximum safety.
>>Planetary equipped with disk and milling cutter for cut and chamfer.
>>Touch screen control panel
>>User friendly software developed by FAYGO
>>All movements are motorised and controlled by control panel
>>Pipe blocking vices device
>>Type of the cutting unit is chose depend on pipe
>>Less maintenance needs
>>Completely closed and secured machine for maximum safety.
Belling machine
>>Suitable for PVC pipe production.
>>Universal automatic belling machines for 4 different socket types.
>>Diameter range from Ø 20 mm to Ø 1000 mm.
>>Socket forming: smooth (solvent cemented).
>>Socket forming: shaped for insertion of rubber gasket (blowing system).
>>Socket forming: collapsible system.
>>Socket forming: auto-load rubber gasket.
>>Touch screen control panel.
>>User friendly software developed.
>>Automatic s ynchronization with extrusion speed.
>>Pneumatic, hydraulic and motorized movements.
>>High quality belling tools.
>>Universal automatic belling machines for 4 different socket types.
>>Diameter range from Ø 20 mm to Ø 1000 mm.
>>Socket forming: smooth (solvent cemented).
>>Socket forming: shaped for insertion of rubber gasket (blowing system).
>>Socket forming: collapsible system.
>>Socket forming: auto-load rubber gasket.
>>Touch screen control panel.
>>User friendly software developed.
>>Automatic s ynchronization with extrusion speed.
>>Pneumatic, hydraulic and motorized movements.
>>High quality belling tools.
