- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
nylon Pipe
-
Specification:
-
20mm-1400mm
-
Length:
-
500-1000mm
-
Thickness:
-
(OD)50-1800 X (ID)30-1600
-
Standard:
-
Nonstandard
-
Product name:
-

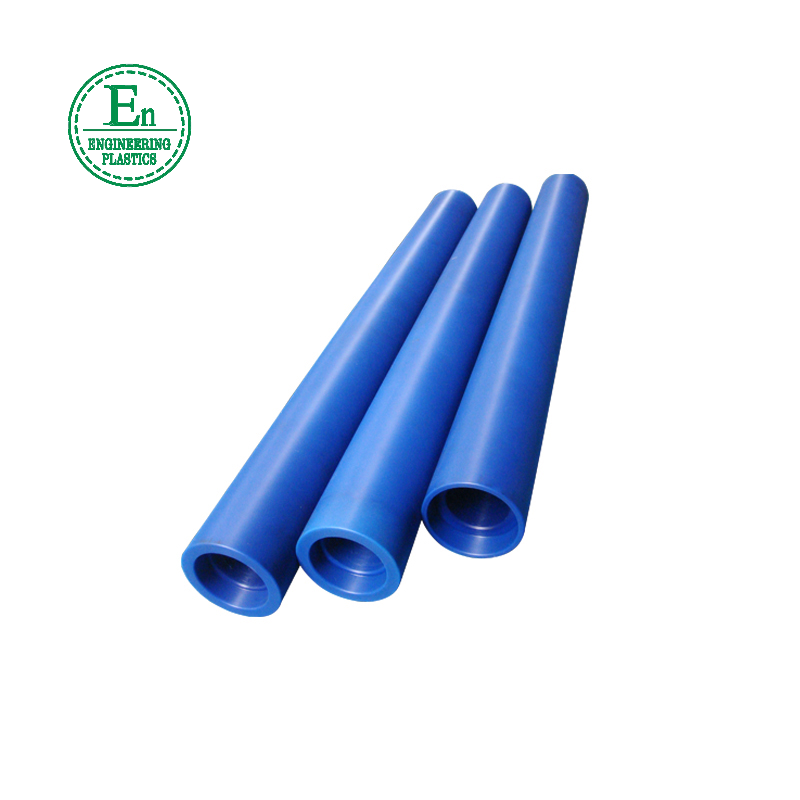

Custom made plastic nylon tube clear plastic MC nylon pipe
-
Color:
-
Natural,White,Black,Green,Blue,Yellow,as your requirement
-
Density:
-
1.2
-
material:
-
nylon
-
diameter:
-
20-150mm
-
Certificate::
-
ISO9001
-
application:
-
Food and beverage light industry,Electronic Industry,etc.
-
free sample:
-
yes
-
service:
-
semi-finished machining
-
shape:
-
parts, bushing,Sheet, Rod, Bar, Tube, Part
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GZ Engineering Plastics
-
Model Number:
-
nylon Pipe
-
Specification:
-
20mm-1400mm
-
Length:
-
500-1000mm
-
Thickness:
-
(OD)50-1800 X (ID)30-1600
-
Standard:
-
Nonstandard
-
Product name:
-
Custom made plastic nylon tube clear plastic MC nylon pipe
-
Color:
-
Natural,White,Black,Green,Blue,Yellow,as your requirement
-
Density:
-
1.2
-
material:
-
nylon
-
diameter:
-
20-150mm
-
Certificate::
-
ISO9001
-
application:
-
Food and beverage light industry,Electronic Industry,etc.
-
free sample:
-
yes
-
service:
-
semi-finished machining
-
shape:
-
parts, bushing,Sheet, Rod, Bar, Tube, Part
product description
MC Nylon，means Monomer Casting Nylon, is a kind of engineering plastics used in comprehensive industries, has been applied almost every industrial field.The caprolactam monomer is first melted, and added catalyst, then poured it inside moulds at atmosphere pressure so as to shape in different castings,such as: rod, plate, tube. The molecule weight of MC Nylon can reach 70,000-100,000/mol, three times than PA6/PA66. Its mechanical properties are much higher than other nylon materials, such as: PA6/PA66. MC Nylon plays a more and more important role in the material list recommended by our country.
Color：Natural、White、Black、Green、Blue、Yellow、Rice Yellow、Gray and so on.
Sheet Size：1000X2000X(Thickness:1-300mm）1220X2440X(Thickness:1-300mm) 、1000X1000X(Thickness:1-300mm）、1220X1220X(Thickness:1-300mm)
Rod Size: Φ10-Φ800X1000mm
Tube Size: (OD)50-1800 X (ID)30-1600 X Length(500-1000mm)
|
/
|
Item No.
|
Unit
|
MC Nylon (Natural)
|
Oil Nylon+Carbon (Black)
|
Oil Nylon (Green)
|
MC901 (Blue)
|
MC Nylon+MSO2 (Light black)
|
|||||||
|
1
|
Density
|
g/cm
3
|
1.15
|
1.15
|
1.35
|
1.15
|
1.16
|
|||||||
|
2
|
Water absorption (23℃ in air)
|
％
|
1.8-2.0
|
1.8-2.0
|
2
|
2.3
|
2.4
|
|||||||
|
3
|
Tensile strength
|
MPa
|
89
|
75.3
|
70
|
81
|
78
|
|||||||
|
4
|
Tensile strain at break
|
％
|
29
|
22.7
|
25
|
35
|
25
|
|||||||
|
5
|
Compressive stress(at 2%nominal strain)
|
MPa
|
51
|
51
|
43
|
47
|
49
|
|||||||
|
6
|
Charpy impact strength (unnotched)
|
KJ/m
2
|
No break
|
No break
|
≥5
|
No BK
|
No break
|
|||||||
|
7
|
Charpy impact strength (notched)
|
KJ/m
2
|
≥5.7 ≥6.4
|
4
|
3.5
|
3.5
|
3.5
|
|||||||
|
8
|
Tensile modulus of elasticity
|
MPa
|
3190
|
3130
|
3000
|
3200
|
3300
|
|||||||
|
9
|
Ball indentation hardness
|
N2
|
164
|
150
|
145
|
160
|
160
|
|||||||
|
10
|
Rockwell hardness
|
-
|
M88
|
M87
|
M82
|
M85
|
M84
|
|||||||
|
Mechanical Properties
|
|
|
|
|
|
|
|
|||||||
Product Description
This improved MC Nylon, has striking blue color, which is better than general PA6/PA66 in the performance of toughness, flexibility, fatigue-resistance and so on. It is the perfect material of gear, gear bar, transmission gear and so on.
MC Nylon added MSO2 can remain the impact-resistance and fatigue-resistance of casting nylon, as well as it can improve the loading capacity and wear-resistance. It has a wide application in making gear, bearing, planet gear, seal circle and so on.
Oil Nylon added carbon, has the very compact and crystal structure, which is better than the general casting nylon in the performance of high mechanical strength, wear-resistance, anti-aging, UV resistance and so on. It is suitable for making the bearing and other wear mechanical parts.
Application field
It can be used in food processing, medical equipment, military industry, mechanical parts and other fields.
CERTIFICATION CERTIFICATE
Companies strictly enforce the ISO9001(2008)international quality certification system,
the product quality conforms to the eu RoHS standard.
professional team
OUR FACTORY
Specializing in the production of "engineering plastic accessories" of high-tech enterprises, the company has a set of imported production equipment and CNC processing equipment, processing means advanced, strong technical force.
OUS STRENGTH
The company has rich experience, strong strength and participated in many high-end exhibitions;Many partners from other countries are visiting
COOPERATION CASE
Cooperate with many well-known companies
