Quick Details
-
Warranty:
-
24 months
-
Brand Name:
-
OEM
-
Model Number:
-
D16R
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
34X29X4CM
-
Panel Material:
-
High Quality Monocrystalline Silicon
-
Max Power:
-
8W(7.2V/1A)
-
Battery:
-
Built in 0/3/6 battery(optional)
-
Li battery Capacity:
-
0/9000/18000Mah
-
Output Volt:
-
Max 12v/1A
-
Solar cell:
-
23% tranfer
-
Working Temperature:
-
-20℃~60℃ / -4℉~140℉
-
Net Weight:
-
550g
-
interface:
-
TypeC/Mirco USB/USB/DC
-
Certificate:
-
CE FCC ROHS MSDS
Quick Details
-
Cell size:
-
26x17cm
-
Type:
-
Double-glass
-
Panel Efficiency:
-
23%
-
Warranty:
-
24 months
-
Brand Name:
-
OEM
-
Model Number:
-
D16R
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
34X29X4CM
-
Panel Material:
-
High Quality Monocrystalline Silicon
-
Max Power:
-
8W(7.2V/1A)
-
Battery:
-
Built in 0/3/6 battery(optional)
-
Li battery Capacity:
-
0/9000/18000Mah
-
Output Volt:
-
Max 12v/1A
-
Solar cell:
-
23% tranfer
-
Working Temperature:
-
-20℃~60℃ / -4℉~140℉
-
Net Weight:
-
550g
-
interface:
-
TypeC/Mirco USB/USB/DC
-
Certificate:
-
CE FCC ROHS MSDS

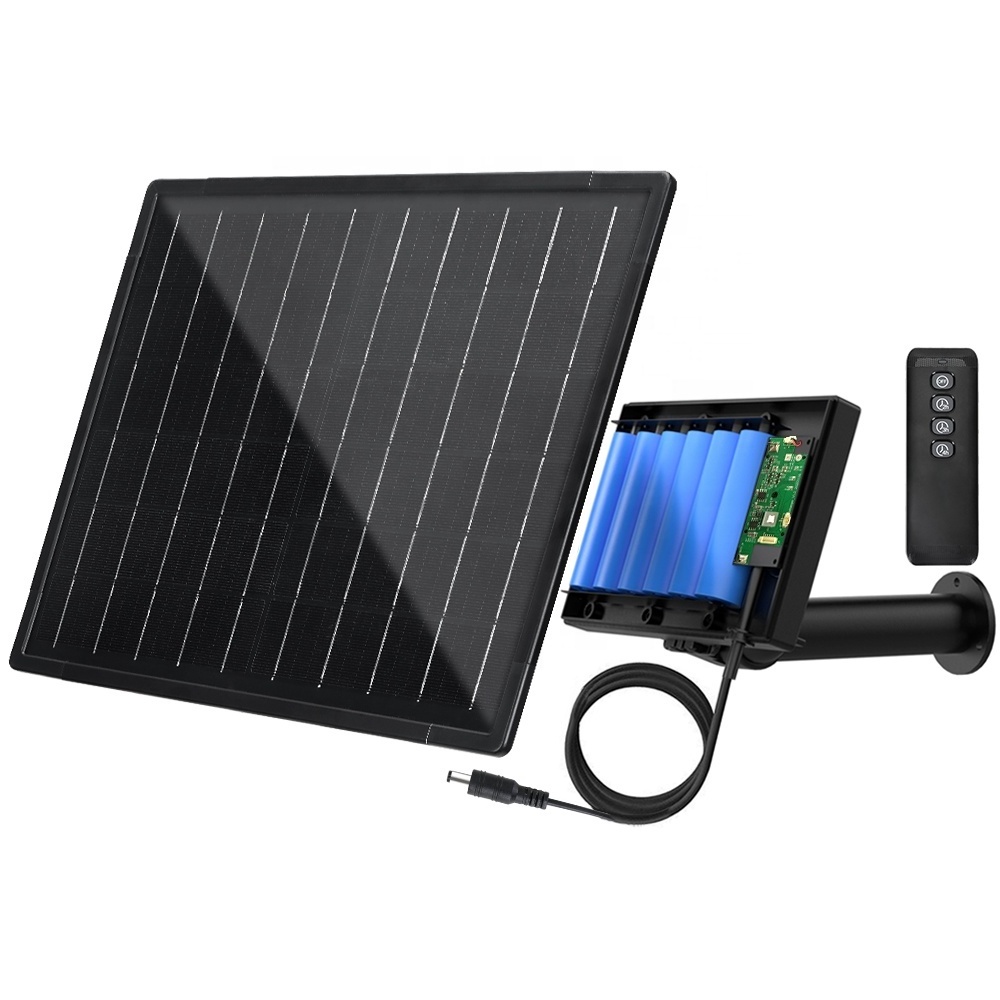

16W Solar Panel Charger 12v Output
Feature:
1)16w solar(7.2v/1A)
2)23% Conversion rate
3)DC 12v Output
4)Many kinds interface
5)Built in 0/9000/18000mAh Capacity(Optional)
Parameter Table
| D16 16W Solar Panel Charger | ||
| Solar Panel | PCE(conversion efficiency) | 23% |
| Working Power | 16W | |
| Working Volt | Max 7.2V/1A | |
| Material | Monocrystalline silicon | |
| Surface | Tempering Glass | |
| Size | 34x29cm | |
| Battery | Battery Power | 0/33.3/66.6 optional |
| Battery Voltage | 3.7V | |
| Capacity | 0/9000/18000mAh optional | |
| Circuit Combination | 0/3/6 18650 batteries in parallel | |
| Battery Removable or not | Yes | |
| Input | Charging time | 12 hours if charging by sunshine |
| Output | Output Voltage |
Max 12v/1A (contact us if you want other output) |
| Circuit Protection | Yes | Short circuit reverse connection protection |
| Overcharging protection | ||
| Interface | Plug |
DC 5.5x2.1mm (contact us if you want other interface) |
| Cable length | 3M | |
| Installation | Tripod Mount (M6 Screw) | |
| LED indicator | indicator Power Capacity and Charging Status | |
| Working Temperature | ‘-20℃~60℃(-4℉~140℉) | |
| Waterproof | IP66 | |
| Remote Control | Yes or No(optional) | |
| Size | Product Size | 34.5x28.5x3.5cm |
| Packing Size | 35x29x4cm | |
| Weight | Product Weight | 1.18kg |
| Packing Weight | 1.32kg | |
| Accessories |
|
16w Solar Panel--1pc
Tripod Bracket--1pc Nail--3sets Remote Control--1pc(optional) Battery--0/3/6pcs(optional) Interface--5pcs(optional) |
| Certification | CE/FCC/Rohs | |
