- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
MAYZUM
-
Model Number:
-
X-MAY05
-
Product name:
-

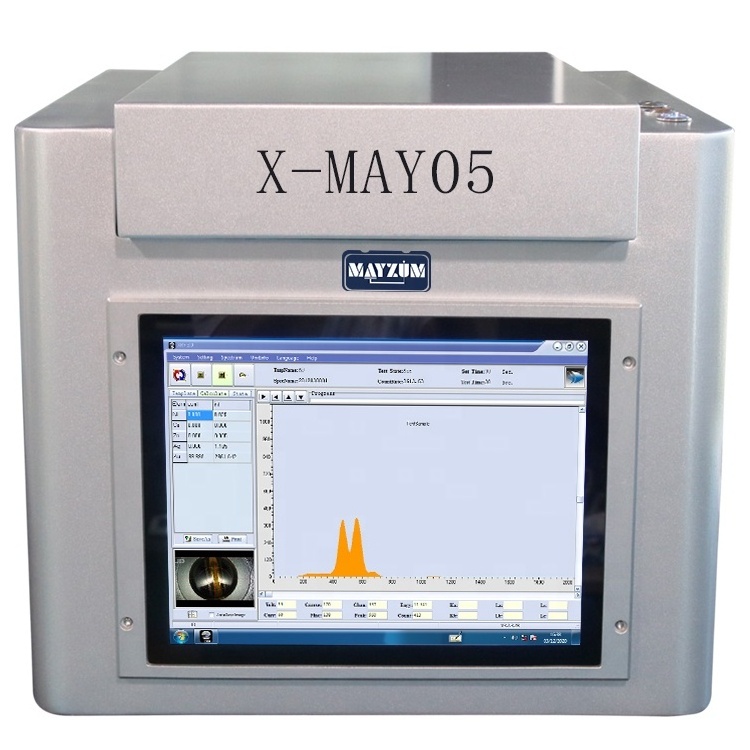

XRF Gold Analyzer
-
Accuracy:
-
RSD ≤ 0.1%
-
Power supply:
-
Default as European Standard AC 100V - 240V
-
Computer system:
-
Windows 7
-
Free shipping:
-
DHL/UPS/FEDEX/TNT/S.F.
-
Value showed:
-
Karat and purity
-
Detector:
-
Proportional Counter tube
-
Measurement Time:
-
10-50 Sec
-
Certification:
-
ISO,CE
Quick Details
-
Warranty:
-
2 years, 2 years,life-long maintenance
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MAYZUM
-
Model Number:
-
X-MAY05
-
Product name:
-
XRF Gold Analyzer
-
Accuracy:
-
RSD ≤ 0.1%
-
Power supply:
-
Default as European Standard AC 100V - 240V
-
Computer system:
-
Windows 7
-
Free shipping:
-
DHL/UPS/FEDEX/TNT/S.F.
-
Value showed:
-
Karat and purity
-
Detector:
-
Proportional Counter tube
-
Measurement Time:
-
10-50 Sec
-
Certification:
-
ISO,CE
Product Description
X Ray XRF Spectrometer Analyzer Testing Machine For Jewelry Gold Precious Metal
Warranty For 2 Years
Original Manufacturer
Free Shipping For NOT Remote areas
One-to-one Remote Operation Guidance
Warm Tips:
The price includes the costs of delivery and insurance, which varies in types. For details, please contact our client service.
The Principle of Energy Dispersive
X Fluorescence Spectrometer
The atomic electron layer is excited by high-energy X-rays, causing the transition of electrons outside the nucleus, resulting inthe release of secondary X-ray energy.
Because the energy released by different elements has different characteristics, the detection system measures these energies andquantities to calculate element content.
The Main Components
High VoltageX-Ray Tube-Detector
Collimator
Primary filter
Former-Amplifier
Main Amplifier
DPP
Control Module
Communication Module
Display System, etc
Collimator
Primary filter
Former-Amplifier
Main Amplifier
DPP
Control Module
Communication Module
Display System, etc
Specification parameters
X Ray XRF Spectrometer Analyzer Testing Machine For Jewelry Gold Precious Metal
Specification parameters of four models
|
Brand
|
MAYZUM
|
|
|
|
||||
|
Model
|
MAY05
|
MAY16
|
MAY72
|
MAY72-Pro
|
||||
|
Price
|
$5480
|
$ 10500
|
$13420
|
$19190
|
||||
|
Detector Type
|
Proportional Counter tube
|
|
Si-pin (USA)
|
SSD（USA）
|
||||
|
Multichannel Analyzer
|
Multi channel simulation
|
|
|
|
||||
|
Sample Chamber Size
|
310 *280 * 60 (mm)
|
380 *380 * 60 (mm)
|
|
|
||||
|
Test Time
|
10sec ~ 50sec
|
|
|
|
||||
|
Measuring Element
|
Au,Ag,Pt,Pd,Cu
|
Au, Ag, Pt, Pd, Cu, Ni,Zn,Rh,Cd,Ru,Fe, Co ,Ir,W.Os,Pb.
|
72 elements from sodium (Na) touranium (U) between all the elements
|
|
||||
|
Analysis Range
|
1ppm to 99.99%
|
|
|
|
||||
|
Accuracy(Content≥96%)
|
0.1%
|
0.05%-0.1%
|
0.03%
|
0.01%
|
||||
|
Density direct reading
|
No
|
Yes. D:0.01g/cm3
|
No
|
|
||||
|
Sample Form
|
Solid, powder, liquid
|
|
|
|
||||
|
Tube Voltage
|
5KV ~ 50KV
|
|
|
|
||||
|
High Voltage Power Supply
|
0 ~ 50KV
|
|
|
|
||||
|
Camera
|
HD camera
|
|
|
|
||||
|
Filters
|
Selectable customized switches
|
|
|
|
||||
|
Analysis Software
|
Qualitative and quantitative analysis software
|
|
|
|
||||
|
Sample Chamber Size(mm)
|
310*280*60
|
290*290*95
|
380*380*60
|
|
||||
|
External Dimensions(mm)
|
400 * 430 * 350
|
410*300*280
|
480 * 480 * 390
|
|
||||
|
Net Weight
|
33Kg
|
30kg
|
38Kg
|
|
||||
|
Gross Weight
|
38Kg
|
35kg
|
47kg
|
|
||||
|
Instruments Environmental Requirements
|
|
|
|
|
||||
|
Ambient Temperature
|
-5 ° C ~ 40 ° C (Suggested that in air conditioning room)
|
|
|
|
||||
|
Relative Humidity
|
15% ~ 90%
|
|
|
|
||||
|
Power Requirements
|
AC 220V ± 5V, 50/ 60 HzNo high power electromagnetic and vibration interference sources nearby
|
|
|
|
||||
Advantages & Characteristics
Detailed Images
X Ray XRF Spectrometer Analyzer Testing Machine For Jewelry Gold Precious Metal
Screenshot of software interface
Applications&Certifications
Applications
Banks; Jewelry industry: Jewelry retailers, jewelry manufacturers;
Precious metal refineries;
Pawn shops ;
Gold and precious metals research lab;
Government quality inspection departments;
Laboratories and tertiary institutions;
Precious metal refineries;
Pawn shops ;
Gold and precious metals research lab;
Government quality inspection departments;
Laboratories and tertiary institutions;
Certification
Our Company
Mayzum (Our brand) specialized in producing and selling professional densitometer for 11 years and we can provide professional density test instrument solution for you
1. Different program functions can be customized according to customer requirements;
2. We can provide OEM service.
3. Looking for brand agent wholesales all over the world.
