Quick Details
-
Product name:
-
Heat Shrink Tubing
-
Color:
-
Black
-
Thickness:
-
0.1-100mm
-
Certification:
-
CE
-
MOQ:
-
100 Meters
-
Packing:
-
Carton
-
Width:
-
8mm-1020mm
-
Usage:
-
Cable Protection
-
Sample:
-
Freely Supplied
-
Delivery:
-
3-6 Days
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
woerhui
-
Model Number:
-
RSFR-VDF175
-
Product name:
-
Heat Shrink Tubing
-
Color:
-
Black
-
Thickness:
-
0.1-100mm
-
Certification:
-
CE
-
MOQ:
-
100 Meters
-
Packing:
-
Carton
-
Width:
-
8mm-1020mm
-
Usage:
-
Cable Protection
-
Sample:
-
Freely Supplied
-
Delivery:
-
3-6 Days

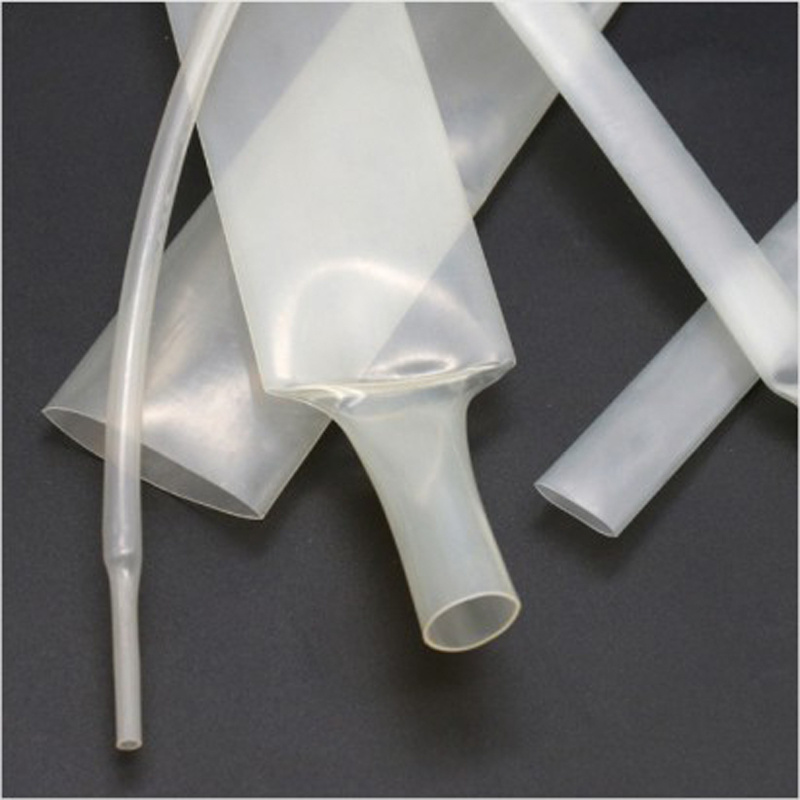

Woerhui THIN WALL PVDF Heat Shrink Tubing
Features
- 2:1 shrink ratio
- Long term resistance to diesel, hydraulic fluids and chemicals
- Semi-rigid
- Flame retardant
- High abrasion and cut resistance
- Meets 23053/18
- Continuous operating temperature:-55℃-175℃
- Shrink temperature:175℃
Dimensions
| Size | Expanded (mm) | Recovered (mm) |
Standard
Package |
Round/Flat | ||
|---|---|---|---|---|---|---|
| Inch | mm | Internal Diameter | Internal Diameter | Wall Thickness | ||
| 3/64 | 1.2 | 1.2 | 0.6 | 0.25±0.10 | 200 | Round |
| 1/16 | 1.6 | 1.6 | 0.8 | 0.25±0.10 | 200 | Round |
| 3/32 | 2.4 | 2.4 | 1.2 | 0.25±0.10 | 200 | Round |
| 1/8 | 3.2 | 3.2 | 1.6 | 0.25±0.10 | 200 | Round |
| 3/16 | 4.8 | 4.8 | 2.4 | 0.25±0.10 | 100 | Round |
| 1/4 | 6.4 | 6.4 | 3.2 | 0.30±0.10 | 100 | Round |
| 3/8 | 9.5 | 9.5 | 4.8 | 0.30±0.10 | 50 | Round |
| 1/2 | 12.7 | 12.7 | 6.4 | 0.30±0.10 | 50 | Round |
| 3/4 | 19.0 | 19.1 | 9.5 | 0.42±0.10 | 50 | Round |
| 1 | 25.4 | 25.4 | 12.7 | 0.50±0.10 | 50 | Round |
| 1-1/2 | 38.1 | 38.1 | 19.0 | 0.50±0.10 | 50 | Round |
Note: 3:1 shrink ratio is available upon request
Technical Data
| Property | Test method | Typical Performance |
|---|---|---|
| Tensile strength(MPa) | ASTM D 2671 | ≥30 |
| Elongation(%) | ASTM D 2671 | ≥150 |
| Tensile | 250℃X168hr | ≥100 |
| Cold Bend | No cracking | ≥220 |
| Flammability | ASTM D 2671 | VW-1 |
| Volume resistivity(Ω.cm) | IEC 60093 | ≥1×1014 |
