1. Speedier Solution
Induction can therefor more parts per hour than alternative processes with rapid and precise heating
2. Quicker Throughput
Batches of parts no longer have to be taken aside for seperate brazing or sent off site.
3. Consistent Performance
Induction heating is controllable and repeatable.
4. Unique Controllability
Induction lets operators videw the brazing process, minimize the risk of oveheating.
5. More productive Environment
6. Compact Footprint
7. No-contact process
Induction produces heat within the base matals and nowhere else. The homogeneous and controlled heat minimizes distortion, and
there is no danger to creat hydrogen embrittlement
- Product Details
- {{item.text}}
Quick Details
-
Working Theory:
-
Electromagnetic Induction Heating
-
Usage:
-
induction brazing, welding, soldering
-
Model Number:
-
WXH-15
-
Electricity Desire:
-
Single Phase 220V, 50/60HZ
-
Max Input Current:
-
38A
-
Cooling Method:
-
Water Cooling
-
Machine Weight:
-
25KG
-
Feature:
-
high efficiecny, high control ability
-
HS Code:
-
8514400090
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Wangxin
-
Weight (KG):
-
27
-
Working Theory:
-
Electromagnetic Induction Heating
-
Usage:
-
induction brazing, welding, soldering
-
Model Number:
-
WXH-15
-
Electricity Desire:
-
Single Phase 220V, 50/60HZ
-
Max Input Current:
-
38A
-
Cooling Method:
-
Water Cooling
-
Machine Weight:
-
25KG
-
Feature:
-
high efficiecny, high control ability
-
HS Code:
-
8514400090

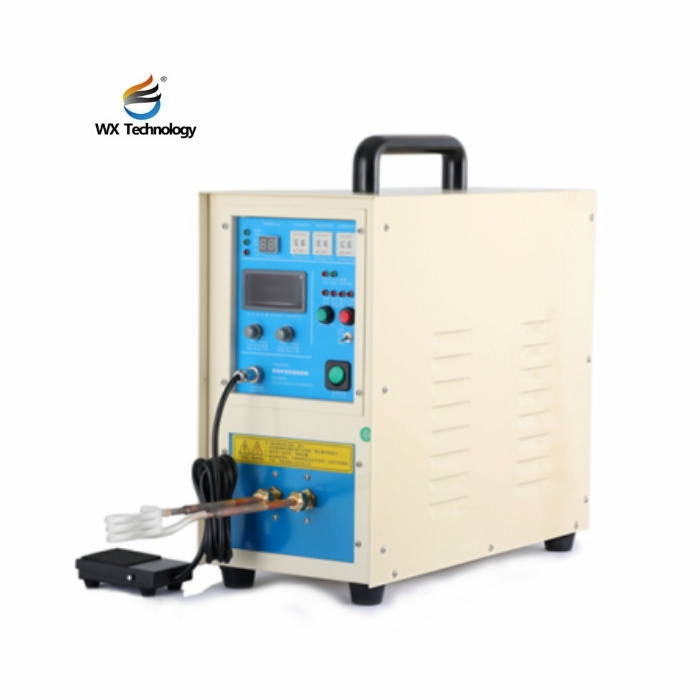

Tool Bit Brazing Welding Induction Soldering Machine Heating Equipment
Product Overview
What is Brazing?
Brazing uses heat and a filler metal (alloy) to join metals. Once melted, the alloy flows between close-fitting base metals (the pieces being joined) by capillary action. This molten filler alloy interacts with a thin layer of the base metal to form a strong, leak-proof joint.
Why induction brazing is better?
Front Elevation
Rear Elevation
Inside Elevation
PRODUCT SPECIFICATIONS
|
Model
|
WXH-15
|
|
Input Power Desire
|
Single Phase 220V, 50/60HZ
|
|
Max Oscillate Power
|
15KVA
|
|
Max Input Current
|
38A
|
|
Frequency
|
30-100KHZ
|
|
Cooling Water Desire
|
>0.2MPa 2-6L/Min
|
|
Duty Cycle
|
100%
|
|
Dimensions (LxWxH)
|
510x210x460mm
|
|
Net Weight
|
25KG
|
PRODUCT CONFIGURATION
Infineon IGBT Module
High Precision Circuit Board
Imported Filter Capacitor
Successful Project
Project in UAE
Project in Indonesia
Project in Russia
Recommend Products
High Frequency Series Machine (Frequency 30-100KHZ)
|
Model
|
Input Voltage
|
Frequency
|
Max Input Current
|
Water Flow For Cooling
|
|
WXH-15/15AB
|
Single Phase 220V, 50/60HZ
|
30-100KHZ
|
37A
|
0.2MPa, 6L/Min
|
|
WXH-25/25AB
|
3 Phase 380V, 50/60HZ
|
30-80KHZ
|
24A
|
0.2MPa, 6L/Min
|
|
WXH-30
|
3 Phase 380V, 50/60HZ
|
30-80KHZ
|
33A
|
0.2MPa, 7L/Min
|
|
WXH-40
|
3 Phase 380V, 50/60HZ
|
30-80KHZ
|
45A
|
0.2MPa, 7L/Min
|
|
WXH-60
|
3 Phase 380V, 50/60HZ
|
30-80KHZ
|
75A
|
0.2MPa, 9L/Min
|
|
WXH-80
|
3 Phase 380V, 50/60HZ
|
30-80KHZ
|
105A
|
0.2MPa, 9L/Min
|
