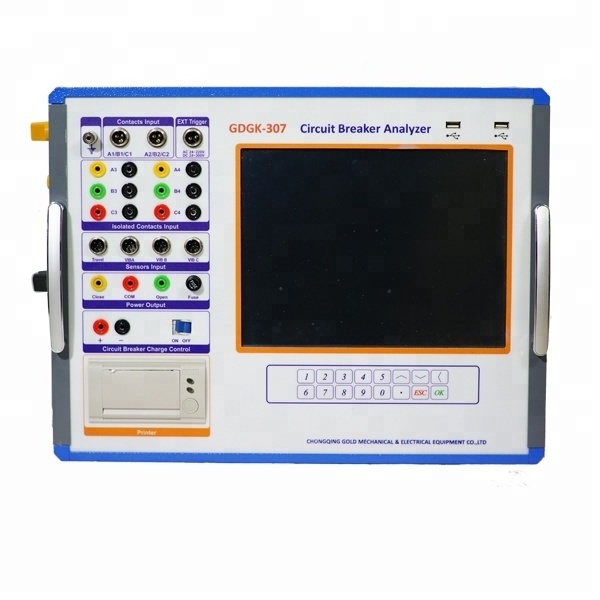

GDGK-307 Electronic Power Circuit Breaker Analyzer Tester

Product Description

General introduction

circuit breaker tester

• GDGK307 High voltage circuit breaker Mechanical Properties Tester is special instrument for power system GIS mechanical properties measuring.
• The high voltage circuit breaker tester takes IPC for the core to sample and data process.
• It has 12.1 LCD to display and 12.1 touch pad for operation.
• Rich experience database makes the tester more intelligence.
• The tester has the characteristic of accurate test data, strong antijamming, easy operation, small size and light weight.

Functions

circuit breaker tester

1) Measurement of closing time, opening time, time spread between poles, time spread between units of one pole, bounces etc.

2) Measurement of closing speed, opening speed and average speed.

3) Measurement of clearance between open contacts, over travel, overshoot travel and total travel.

4) Measurement of closing coil current time curve, opening coil current time curve and the maximum coil current

5) Test travel time curve, speed time curve and acceleration time curve

6) Measurement of pre-insertion resistance value and pre-insertion ion time.

7) Test contact resistance

8) Measurement of dynamic resistance time curve and length for arcing contacts

10) Vibration test, including vibration fingerprint curve acquisition, management, and vibration fingerprint curve automatic matching.

11) CO-t1-CO,O-t-CO-t1-CO,CO rated operating sequence verification test.

12) Drawing Envelopes for reference travel curve and compare travel curve with envelopes

13) Mechanical travel curve automatic compare with saved travel curve

14) Measurement of CO time (close-open time) and OC time (Opening-Closing time)

15) Graphite contact closing time, opening time, dynamic resistance curve measurement

16) Zoom, editors, statistics and analysis for measurement curves.

17)12.1-inch touch screen for control and data input

18) Built-in micro printer for test result printout.

18) Generate WORD format test report automatically (all reports and data can be exported through Flash disk).

Technique index

circuit breaker tester

1) 12 channels for time measurement (3-channel supports both the time contact and resistance contact time, 6-channel isolated contacts for cascaded unit measurement of pole)

2) Time measurement

Range: 4000ms

Error :< 0.1ms

Resolution: 0.01ms

3) Travel measurement according to sensor:

Linear resistance sensor:

Measurement range: 0~250mm; resolution: 0.01mm; error: <0.5mm

Measurement range: 0~25mm; resolution: 0.01mm; error: <0.05mm

Angle resistance sensor:

Measurement range: 0~360°; resolution: 0.01°; error: <0.5°

4) Pre-insertion resistance measurement

Range: 50~5000ohm; error :<1%RDG+2D

5) Dynamic resistance measurement

Test current: 25~100A

Measurement error :< 1%RDG+2D

6) Contact resistance measurement

Range:0--10mohm

Error <0.5%RDG+0.05%FS

Range: 0-2mohm;

Error: <0.5%RDG+2D 7)

Speed measurement

250mm linear resistance scale: 0~20m/s; error: <0.5%RDG+2D

25mm linear resistance scale: 0~20m/s; error: <0.5%RDG+2D

Angle sensor: 0~20m/s; error: <0.5%RDG+2D

Acceleration sensor: 0~20m/s; error: <5%RDG+2D

8) Coil current measurement

Range: 0~20A; resolution: 0.001A; error: <0.01A

9) Vibration measurement

Range: 0~5000G; error: <3%

10) Internal DC power source: voltage: 12~265V; current:0~20A

11) Built-in 8G storage memory and 2 USB interface for data export and external keyboard or mouse connection

12) Power supply: AC220V±10%; 50Hz±10%

13)Working environment: temperature: -10~50℃;  Humidity: <80%

14) Dimension and weight: dimension: 448×260×150mm; weight: 15kg
