Quick Details
-
Productivity:
-
15M³/H
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
DINGYUAN
-
Weight:
-
1200 kg
-
Dimension(L*W*H):
-
2900*1350*1350mm
-
Product name:
-
concrete pump
-
Max Conveying capacity:
-
15m3/H
-
Horizontal Delivery Distance:
-
200M
-
Vertical Delievery Distance:
-
50M
-
Max aggregate size:
-
≤20mm
-
cylinder diameter:
-
140mm
-
Cylinder stroke:
-
650mm
-
hydraulic system:
-
full hydraulic
Quick Details
-
Power Type:
-
Electric
-
Max. vertical conveying distance:
-
60M
-
Max. horizontal conveying distance:
-
150M
-
Productivity:
-
15M³/H
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
DINGYUAN
-
Weight:
-
1200 kg
-
Dimension(L*W*H):
-
2900*1350*1350mm
-
Product name:
-
concrete pump
-
Max Conveying capacity:
-
15m3/H
-
Horizontal Delivery Distance:
-
200M
-
Vertical Delievery Distance:
-
50M
-
Max aggregate size:
-
≤20mm
-
cylinder diameter:
-
140mm
-
Cylinder stroke:
-
650mm
-
hydraulic system:
-
full hydraulic

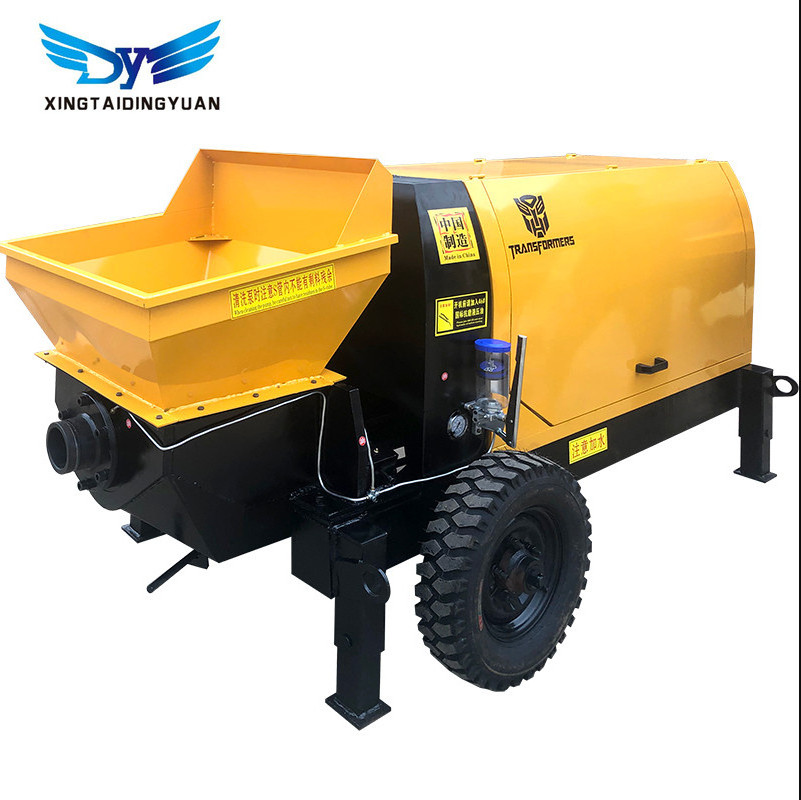

Mobile concrete pump /diesel concrete pump / trailer Concrete Pump
| model | DYHBT-30 |
| Delivery flux | 15m^3/h |
| Delivery prissure | 20mpa |
| The maximum particles | 20mm |
| Bore*Stoke | 140*650mm |
| Motor power | 30kw |
| pipe diameter | 80mm |
| Horizontal Delivery Distance | 200M |
| Vertical Delievery Distance | 80M |
| weight | 1350kg |
| dimension |
2900*1350*1350mm |
1. Help you choose the most suitable machine.
2. C ustomize the machine according to your request.
3. Give you machine’s details and video for help you use the machine more better.
4. Normally the service life of our machines can be 3-5 years.
5. We offer full set of easy spoiled spare parts and tools for back up.
6. We can send our engineer abroad to training customers to operate the machine.
7. Normally We can resolve any problem online together with our customers. If necessary, We can send our engineer over sea.
