Quick Details
-
Model Number:
-
DW26-63
-
Max. Current:
-
63A
-
Mechanical Life:
-
100,000times
-
Contact:
-
Sliver point
-
Certificate:
-
CE ISO9001
-
Product Name:
-
Cam Switch
-
Function:
-
1-0-2 (ON-OFF-ON)
-
Type:
-
Transfer Switch
-
Rated Current:
-
20/25/32/40/63/80/100A
-
Pole:
-
1~4 Poles
-
Standard:
-
GB14048.3 IEC60947-3
-
Application:
-
Motor Switch
Quick Details
-
Max. Voltage:
-
690V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Dixsen
-
Model Number:
-
DW26-63
-
Max. Current:
-
63A
-
Mechanical Life:
-
100,000times
-
Contact:
-
Sliver point
-
Certificate:
-
CE ISO9001
-
Product Name:
-
Cam Switch
-
Function:
-
1-0-2 (ON-OFF-ON)
-
Type:
-
Transfer Switch
-
Rated Current:
-
20/25/32/40/63/80/100A
-
Pole:
-
1~4 Poles
-
Standard:
-
GB14048.3 IEC60947-3
-
Application:
-
Motor Switch

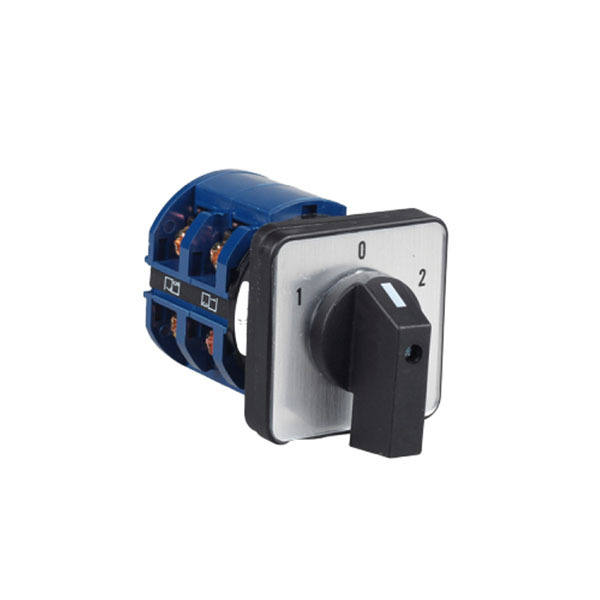

1-0-2 3 Position Rotary Selector Changeover Cam Switch
Banner
Product Description
Motor switch is a kind of Change over Switch, including Reversing Switch, Multi-step Switch, Multispeed Switch, Star delta Switch, etc. Reversing switch directly operate the motor with AC or AC4 duty rating.
| Ref |
DW26-63 |
|
Rated thermal Current(A) |
63A |
|
Rated Insulating Voltage(V) |
690V |
| Rated Working Voltage(V) | 240V, 440V |
| Rated Working Current(A) | |
| AC-21A AC-22A | / |
| AC-23A | 15 A |
| AC-2 | 36 A |
| AC-3 | 57 A |
| AC-4 | 57 A |
| AC-15 | 63 A |
|
|
|
| Rated Control Power(KW) | |
| AC-4 | 15 / 10 KW, 30 / 18.5 KW |
| AC-3 | 18.5 KW, 30 KW |
| AC-2 | 11 / 6 KW, 18.5 / 11 KW |
| AC-23A | 5.5 / 2.4 KW, 7.5 / 4 KW |
