Quick Details
-
Packaging Type:
-
plywood
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Aerospace
-
Dimension(L*W*H):
-
Vary
-
Weight:
-
55 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Filling speed:
-
20-30b/min
-
Filling material:
-
mascara/lipstick/eyeliner/nail polish
-
Control panel:
-
Digital display control panel
-
Hopper material:
-
316L stainless steel
-
Filling system:
-
Pneumatic filling system
-
Filling head system:
-
Anti-leaking filling system
-
Filling Precision:
-
+1% , -1%
-
Discharging method:
-
Positive pressure discharging
-
Certification:
-
TUV/CE
Quick Details
-
Machinery Capacity:
-
Other
-
Packaging Material:
-
Wood
-
Filling Material:
-
Other
-
Packaging Type:
-
plywood
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Aerospace
-
Dimension(L*W*H):
-
Vary
-
Weight:
-
55 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Filling speed:
-
20-30b/min
-
Filling material:
-
mascara/lipstick/eyeliner/nail polish
-
Control panel:
-
Digital display control panel
-
Hopper material:
-
316L stainless steel
-
Filling system:
-
Pneumatic filling system
-
Filling head system:
-
Anti-leaking filling system
-
Filling Precision:
-
+1% , -1%
-
Discharging method:
-
Positive pressure discharging
-
Certification:
-
TUV/CE

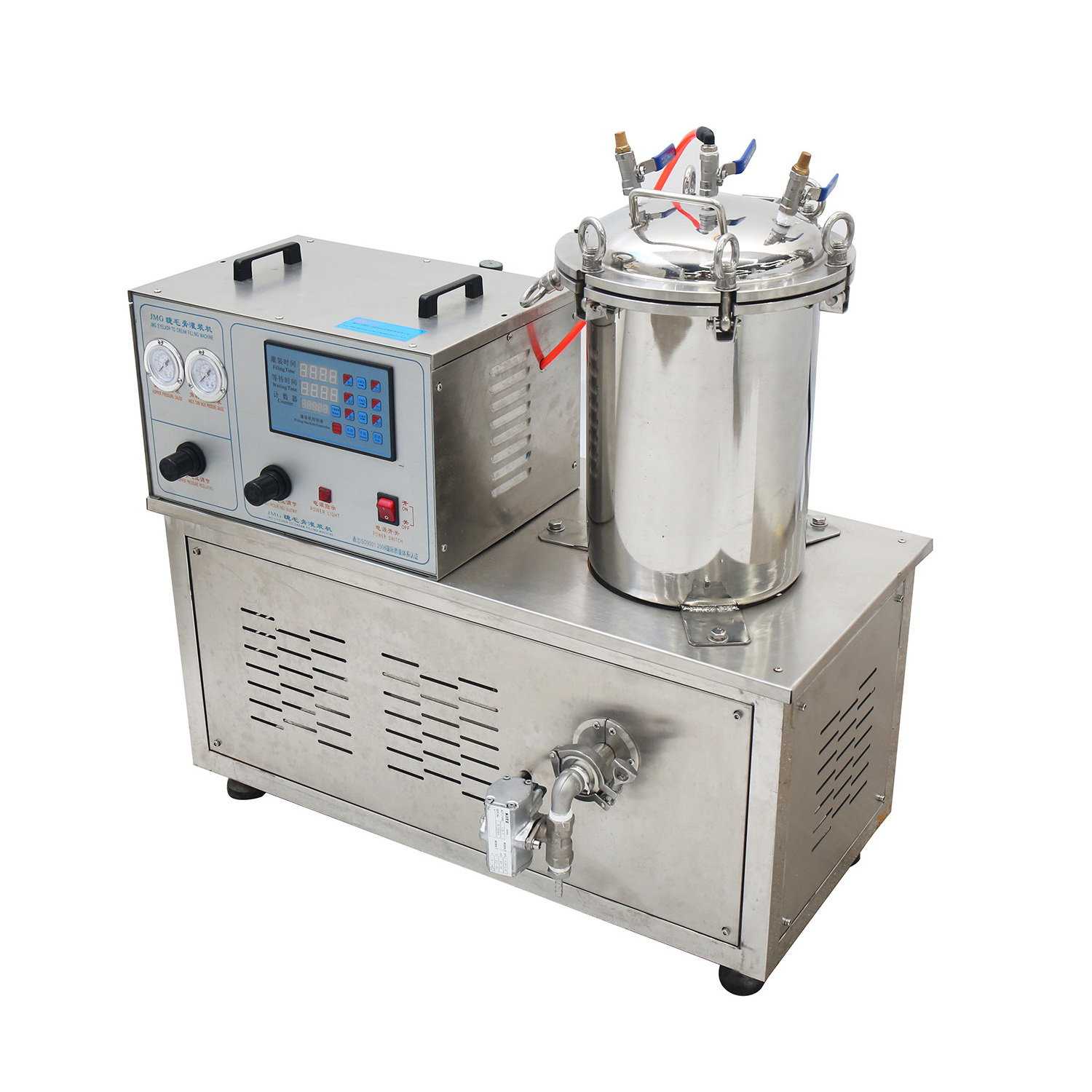

YH- Nail Polish/Mascara Filling Machine
YHGZJ High Viscocity Nail Polish/Mascara Filling Machine Manufacturer
|
Model |
YHF-4 |
|
Filling Scope |
2-50g |
|
Air Pressure Scope |
6kg/cm 2 |
|
Filling Speed |
20-30 B/m |
|
Filling Precision |
+1%,-1% |
|
Hopper |
5L |
Use
Filling the high viscosity product, such as nail polish, lipstick, mascara etc.
Process
Automatic Operation Model
1) Set the filling time and interval time
2) Manual bottle feeding
3) Automatic filling
Manual Operation Model
1) Manual bottle feeding
2) Operate the footstep
3) Filling
Working priciple
1 ) Filling Speed and the filling volume is adjustable . Through adjusting the digital display control panel to set the speed, filling time and the interval time so that control the filling volume.
2) Material contact parts are adopted Stainless Steel 316L , machine body adopt stainless steel 304 , whole machine adopt carry out mirror polish, reach GMP standard.
3) Manual finishing the bottle loading, when pass the interval time, filling head automatic fill.
4) This filling machine adopt positive pressure filling method , high filling accuracy, which is convenient and efficient.
5) The Filling head adopt Anti-Leaking Filling System , avoid leaking and wire drawing.
6) Pneumatic drive . The pneumatic part adopts Taiwan AirTac.
7) Switch function between manual and automatic: when machine is in “automatic” condition, machine will fill continuously with set speed, when it is under “manual” condition, operator step on footplate to realize filling. If stepping footplate continuously, it will change to continuous filling condition.
