Quick Details
-
Max. Resolution:
-
203 Dpi(8 Dot/mm)
-
Brand Name:
-
YHDAA
-
Model Number:
-
YHD-9200
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
YHD-9200
-
Paper width:
-
110mm
-
Resolution:
-
203dpi / 8 Dots
-
Printing Method:
-
Thermal Printing
-
Keyword:
-
thermal label printer
-
Color:
-
black/White
-
Compatible:
-
TSPL/ Esc/POS
-
Reliability Print:
-
100km
-
Interface:
-
Default USB (more interfaces, please contact us)
-
Usage:
-
Print shipping sticker label
Quick Details
-
Interface Type:
-
Default usb
-
Max Paper Size:
-
110mm
-
Black Print Speed:
-
160mm/sec
-
Max. Resolution:
-
203 Dpi(8 Dot/mm)
-
Brand Name:
-
YHDAA
-
Model Number:
-
YHD-9200
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
YHD-9200
-
Paper width:
-
110mm
-
Resolution:
-
203dpi / 8 Dots
-
Printing Method:
-
Thermal Printing
-
Keyword:
-
thermal label printer
-
Color:
-
black/White
-
Compatible:
-
TSPL/ Esc/POS
-
Reliability Print:
-
100km
-
Interface:
-
Default USB (more interfaces, please contact us)
-
Usage:
-
Print shipping sticker label

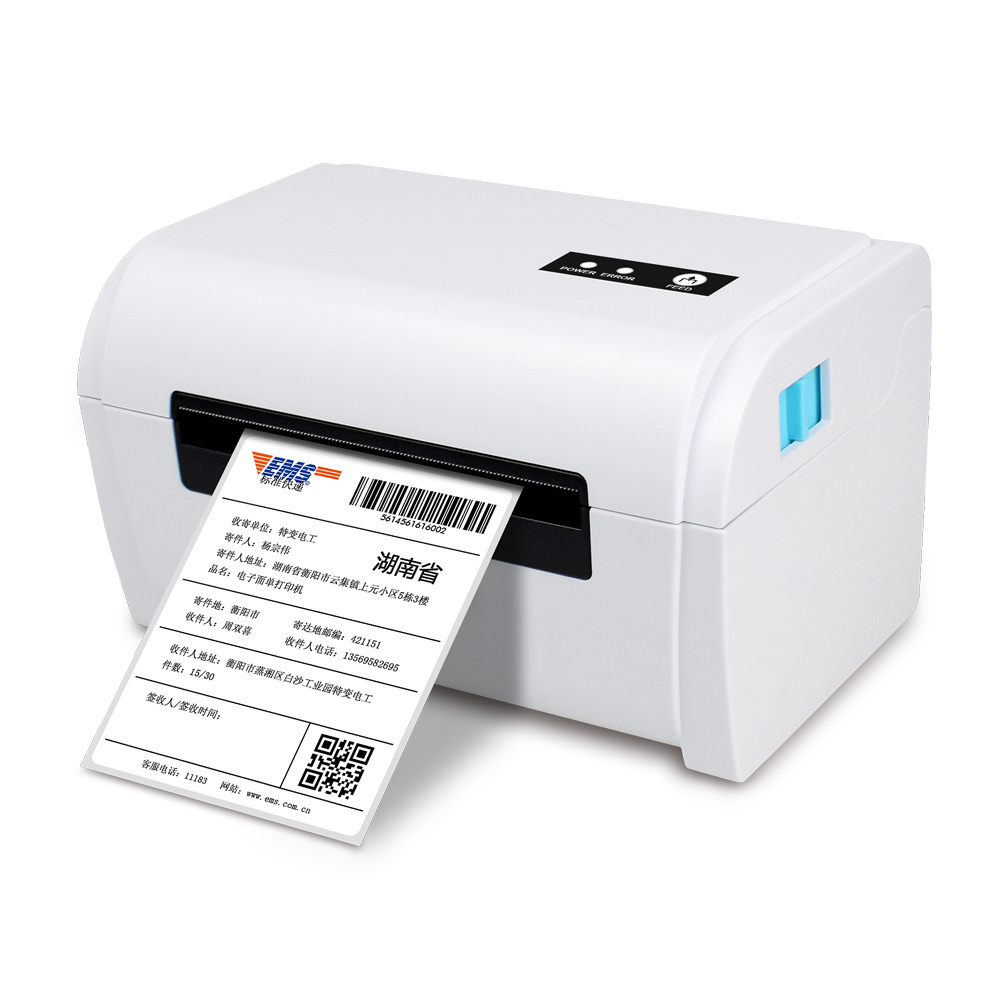

YHD-9200
T hermal Label Barcode P rinter
* Optional interface: USB / USB+ LAN / USB+Blue Tooth.
* Dual Printing Mode: Support thermal paper and thermal label.
* Paper width can be adjusted, support up to 110mm width label paper.
* The label printer features high speed, low noise and clear printing.
* N o need for carbon transfer ribbon, cost saving and convenient.
* Maximum 160mm/5inch per second fast printing speed , 203DPI high resolution.
* Quickly position the paper with a dual media sensor to ensure accurate print position.
* Auto printing temperature control, the machine can offer service time and enjoy longer lifetime.
* Wide application area -- suit for manufacturing and warehousing industry, retail, specimen
marking, post package industry, shelf label, price tag, patient identification, mail delivery label...
|
Product Specification : YHD-9200 Thermal Lable Barcode Printer |
|
|
Interfaces |
USB / USB+ LAN / USB + Blue Tooth
|
|
Print Comand |
CPCL / TSPL command (ESC/POS command) |
|
Print Method |
Thermal Line Printing |
|
Pirnt Speed |
160mm/sec |
|
Resolution |
203 Dpi(8 Dot/mm) |
|
Print Width |
104±0.5mm (Max. 800 points) |
|
Compatible OS |
Window Systems, Android & iOS Operate Systems |
|
Paper |
|
|
Type |
Lable Paper, Tag Paper, Folded Paper, Roll Paper |
|
Width |
110±0.5mm |
|
Paper Thickness |
0.06-0.3mm |
|
Electrical |
|
|
Charging Mode |
External DC24V/ 2.5A |
|
Print Reliability |
10 0km |
|
Physical |
|
|
Dimension |
18 0 *226*147 m m |
|
Unit Weight |
2kg (including accessories) |
|
Color |
White |
|
CTN Dimension |
60 x 40 x 35 cm |
|
CTN Gross Weight |
17kgs |
|
Environmental |
|
|
Temperature |
Working: 0 to 50 ℃ Storage : -20 to 6 0 ℃ |
|
Humidity |
Working: 20%-85% RH Storage : 5 %- 9 5%RH |
|
Mechanical Noise |
less than 60dB (A weighted RMS) |
|
Warantty |
12 months at least |
|
One-dimentional code |
UPC-A/ UPC-E/ JAN13(EAN13)/ JAN8(EAN8)/ CODEBAR/ ITF/ CODE39/ CODE93/ CODE128 |
|
QR code |
QR CODE, PDF417 |
|
Driver |
Win2003, Win XP, Win 7, Win 8, Win 10, MACOS |
