Quick Details
-
Processor Core:
-
Quad Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HYSTOU
-
Model Number:
-
H7 i5-8260U
-
Power:
-
45W
-
Operating System:
-
Win7/10
-
Chipset Type:
-
Intel
-
Product Name:
-
Fanless Indusrtial Mini Pc
-
CPU:
-
Intel Core I5-8260U
-
GPU:
-
Intel UHD Graphics 620
-
Max Memory Size:
-
64GB
-
Memory Types:
-
1*DDR3L SO-DIMM 204 pin
-
Display port:
-
2*HD
-
USB Port:
-
4*USB 3.2 port,4*USB 2.0 port
-
LAN:
-
2* RJ45 Lan Gigabit Ethernet Controller, Realtek 8168/8111
-
System:
-
Support Win 7/10, Linux
-
Size:
-
Package size 308*206*75mm
Quick Details
-
Use:
-
Industrial
-
Hard Drive Type:
-
SSD+HDD
-
Video Memory Type:
-
With the main memory
-
Processor Core:
-
Quad Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HYSTOU
-
Model Number:
-
H7 i5-8260U
-
Power:
-
45W
-
Operating System:
-
Win7/10
-
Chipset Type:
-
Intel
-
Product Name:
-
Fanless Indusrtial Mini Pc
-
CPU:
-
Intel Core I5-8260U
-
GPU:
-
Intel UHD Graphics 620
-
Max Memory Size:
-
64GB
-
Memory Types:
-
1*DDR3L SO-DIMM 204 pin
-
Display port:
-
2*HD
-
USB Port:
-
4*USB 3.2 port,4*USB 2.0 port
-
LAN:
-
2* RJ45 Lan Gigabit Ethernet Controller, Realtek 8168/8111
-
System:
-
Support Win 7/10, Linux
-
Size:
-
Package size 308*206*75mm
Company Introduction
Hystou is a professional manufacturer and exporter of desktop mini PC.OEM and ODM orders are welcomed.
The more you purchase, the cheaper the prlce.
Details Images

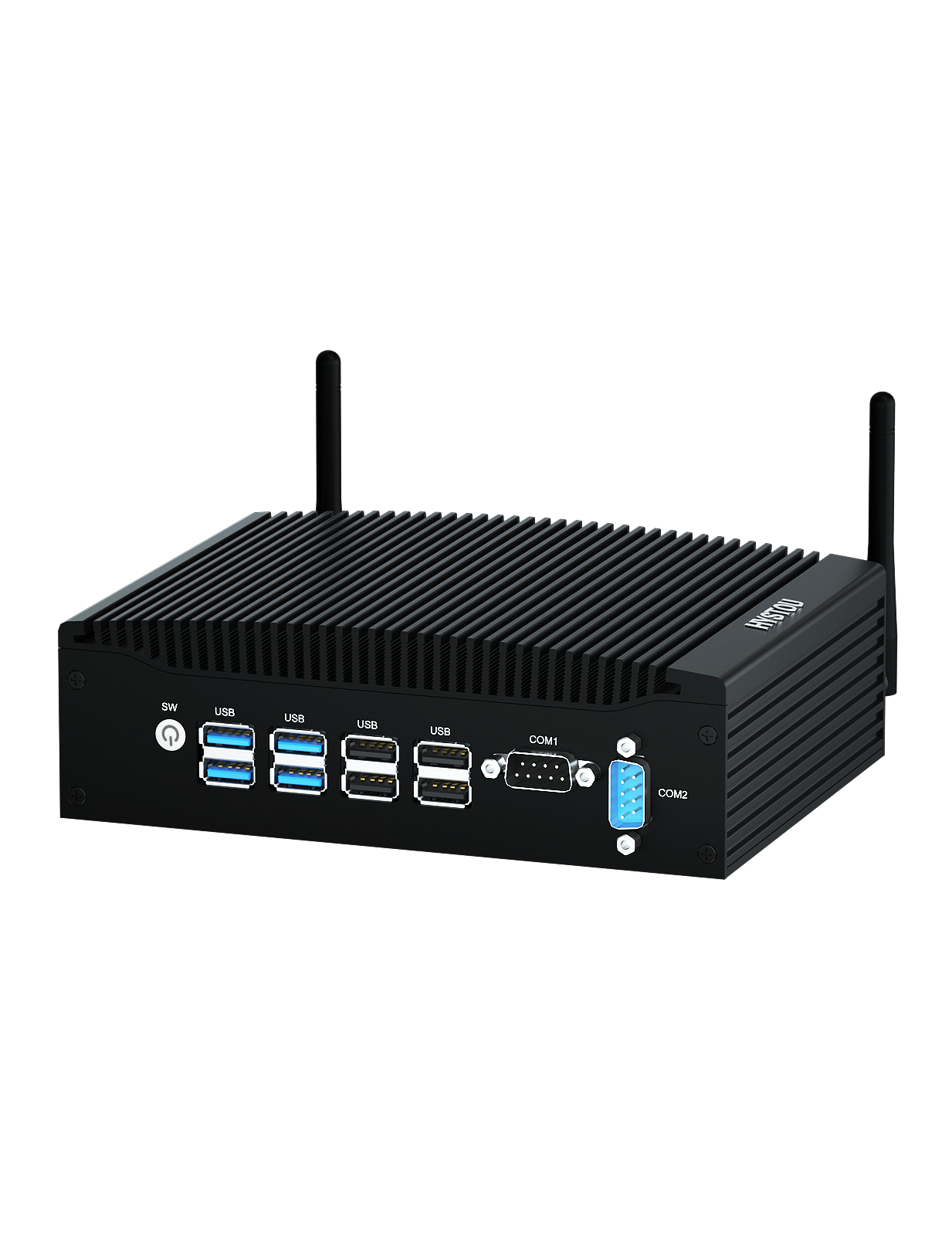

Rich & Diverse Ports
This fanless Industrial pc designed with 4x USB 3.0 port, 4 x USB 2.0 port, 2 x RS232 COM port, 2 x HDMI Dual display output, 2 x Gigabit RJ45 Lan port .Multiple ports enough for most office and family computing requirement.
Fanless Cooling Design & Energy Saving
This mini computer featured by noise-free, fanless design and brushed aluminum shell has excellent durability and heat dissipation, say goodbye to the worry of heat dissipation, compared with the consumption of 150W traditional computers, it helps to save more than 80% of energy for its DC12V 5A power supply and 15W-20W power consumption.
Multiple Displays Support
Using MultiPort to Multiple Monitor support, you can extend your workspace across multiple monitors for more efficient and comfortable productivity experiences.
To beeter use this HYSTOU P12 Desktop Computer
* Q1: How to set up Dual Screen Display?
* A1: Please click and select Start>Settings>System>Display. Your PC should automatically detect your monitor and display yourdesktop. If you don’t see the monitor, select Detect.
* Q2: What is the maximum expansion SSD?
* A2: H7 supports up to 2.5 inch SSD or HDD for expansion
* Q3: How to enter BIOS?
* A3: Press "delete" to enter the BIOS settings; press "F7" to enter the boot options menu (click continuously immediately after booting
* A1: Please click and select Start>Settings>System>Display. Your PC should automatically detect your monitor and display yourdesktop. If you don’t see the monitor, select Detect.
* Q2: What is the maximum expansion SSD?
* A2: H7 supports up to 2.5 inch SSD or HDD for expansion
* Q3: How to enter BIOS?
* A3: Press "delete" to enter the BIOS settings; press "F7" to enter the boot options menu (click continuously immediately after booting
Product Description
|
|
|
|||
|
CPU
|
Intel Core i5-8260U (6M Cache, 4 Cores 8 Threads, Base Frequency 1.60 GHz Turbo Frequency 3.90 GHz)
|
|
||
|
TDP
|
28W
|
|
||
|
CPU Lithography
|
22 nm
|
|
||
|
Memory Specifications
|
|
|
||
|
Max Memory Size
|
64GB
|
|
||
|
Memory Types
|
1*DDR3L SO-DIMM 204 pin
|
|
||
|
Memory Channels
|
Dual Channels
|
|
||
|
ECC Memory
|
Don’t support
|
|
||
|
Storage Specification
|
|
|
||
|
m.2 SSD
|
No M.2 slot
|
|
||
|
SATA
|
1*SATA3.0 Slot for 2.5 inch HDD/SSD
|
|
||
|
mSATA
|
1*mSATA slot
|
|
||
|
Graphics
|
|
|
||
|
Processor Graphics
|
Intel UHD Graphics 620
|
|
||
|
HDMI
|
2*HDMI 4096*2160@30Hz(4K)
|
|
||
|
Power Specification
|
|
|
||
|
Adapter Output
|
DC 12V/5A
|
|
||
|
Adapter Input
|
AC 110-240V, 50/60HZ
|
|
||
|
Consumption
|
45W
|
|
||
|
Auto Power On
|
Support Auto Power On Function
|
|
||
|
In & Out interfaces
|
|
|
||
|
USB Port
|
4*USB 3.0 port,4*USB 2.0 port
|
|
||
|
Audio
|
1*3.5mm MIC in & SPK out
|
|
||
|
Video
|
HDMI 4096*2160@30Hz + HDMI 4096*2160@30Hz 2 Display Output
|
|
||
|
Audio Cards
|
USB Audio Device
|
|
||
|
Lan Port
|
2*RJ45 Lan Gigabit Ethernet Controller, Realtek 8168/8111
|
|
||
|
Com Port
|
2*RS232 Com port
|
|
||
|
Wi-Fi
|
Inside Wifi & Bluetooth Combo
|
|
||
|
Others
|
|
|
||
|
System
|
Support Windows 7/10, Linux
|
|
||
|
BIOS
|
Support AUTO POWER ON,Wake On LAN,PXE
|
|
||
|
MPCIE
|
1*MPCIE,Support Wifi Module(26.80*30mm)
|
|
||
|
Work Environment
|
-10℃--60℃(14F~140F) , 30%--90% Humidity
|
|
||
|
Case Material
|
Full Brushed Aluminum Alloy
|
|
||
|
Dimension
|
PC size 170*126*58mm
Package size 308*206*75mm |
|
||
|
Weight
|
Net 1.1kg; Gross 1.9 kg
|
|
||
Packing&Shipping
PackIng Llst:
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card &user manual
