Quick Details
-
Size:
-
1400x350x980mm
-
Material:
-
2.0mm imported SUS304 Polish 400# Snow line
-
MCBF:
-
5,000,000 Cycles
-
Drive Unit:
-
Brushless servo motor
-
Input:
-
100V-240V
-
Pass rate:
-
35-40 persons/minute
-
Communication intereface:
-
Dry contact, RS485
-
Infrared sensor:
-
5 pairs
-
Environment:
-
-40°C~+70°C
-
Application:
-
Security Access Control Management
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Turboo
-
Model Number:
-
R622
-
Size:
-
1400x350x980mm
-
Material:
-
2.0mm imported SUS304 Polish 400# Snow line
-
MCBF:
-
5,000,000 Cycles
-
Drive Unit:
-
Brushless servo motor
-
Input:
-
100V-240V
-
Pass rate:
-
35-40 persons/minute
-
Communication intereface:
-
Dry contact, RS485
-
Infrared sensor:
-
5 pairs
-
Environment:
-
-40°C~+70°C
-
Application:
-
Security Access Control Management

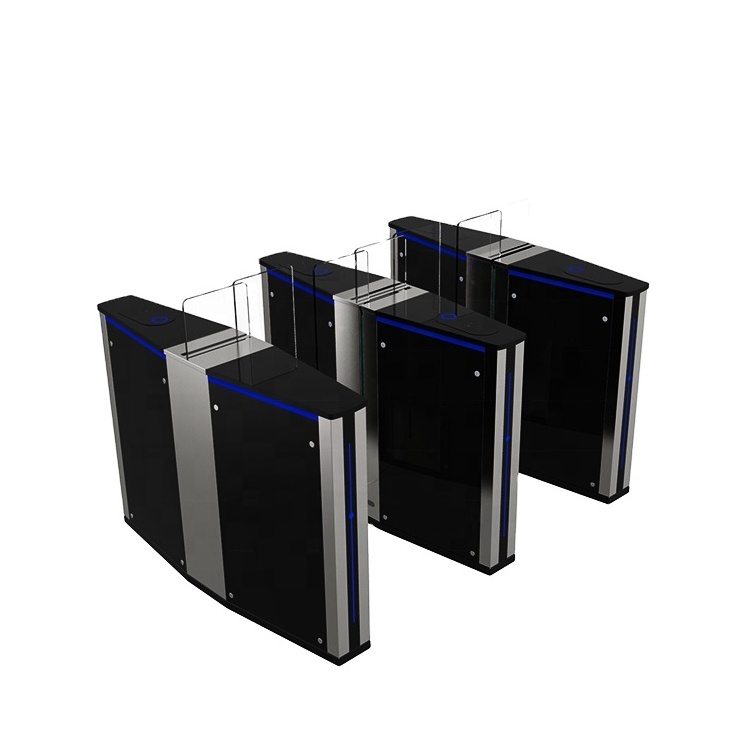

Waist Height Sliding Barrier Gate Turnstile Pedestrian Door Safety Access Control RFID Reader
The automatic waist height offers a reliable and efficient method to ensure only authorized users are allowed access to each area of a building.
The R622 swing barrier gate is an attractive tripod turnstile that is easily capable of handling high volume and abusive conditions. The compact unit makes it simple to construct a multiple lane set-up while the variety in colors allows you to match this turnstile perfectly to your lobby or branding.
Data Sheet
|
Model
|
R622
|
|
Size
|
1400x350x980mm
|
|
Pass Width
|
550mm
|
|
Passage direction
|
Single directional/Bi-directional
|
|
Pass rate
|
30-35 persons/minute
|
|
Operating time
|
0.2 seconds
|
|
Power input
|
AC100-240V,50/60HZ
|
|
Working humidity
|
30%~95%
|
|
Working temperature
|
-40℃~+70℃
|
|
Working environment
|
Indoor
|
|
Communication interface
|
RS485, Dry contact
|
|
Mechanism
|
Brushless servo motor
|
|
MCBF
|
5,000,000 Cycles
|
|
Application
|
Commercial buldings, Hotels, Governemnt Halls, etc
|
