Quick Details
-
Brand Name:
-
Labthink
-
Model Number:
-
C360H Water Vapor Transmission
-
Usage:
-
Moisture Transmission Rate Analyzer
-
Certification:
-
ISO
Quick Details
-
Warranty:
-
12 months
-
Power:
-
Electronic
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Labthink
-
Model Number:
-
C360H Water Vapor Transmission
-
Usage:
-
Moisture Transmission Rate Analyzer
-
Certification:
-
ISO

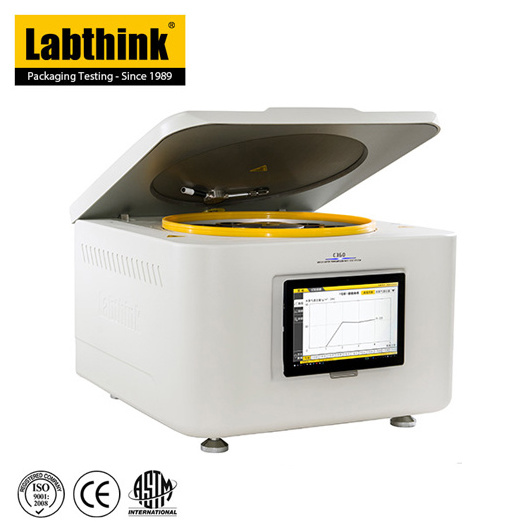

C360H Water Vapor Transmission Rate Test System, is designed and manufactured based on the gravimetric determination method and conforms to the requirements of ASTM E96. This instrument can be used to measure the water vapor transmission rate of barrier materials with high, medium and lower moisture barrier properties with a wide testing range and high testing efficiency. The instrument features Labthink's patented test chamber design with multiple test dishes. C360H is equipped with precision made test dishes, highly accurate balance, embedded professional software which supports automatic controlling of temperature, humidity and flow rate precisely and guarantees the testing sensitivity and repeatability of the test results. C360H is applicable to determination of water vapor permeability of plastic films, sheeting, paper, packages and other packaging materials in food, pharmaceutical, medical apparatus, building materials and consumer goods, etc.
Features
Patented test chamber and test dishes with advanced fluid dynamics and thermodynamic designs.
Labthink's proprietary thermostat technology ensures that the test chamber is precisely temperature controlled and remains stable throughout the test.
Precise and scientific regulation and calculation of testing conditions.
Standards
ASTM E96, ASTM D1653, ISO 2528, TAPPI T464, DIN 53122-1, GB/T 1037, GB/T 16928, YBB 00092003-2015
Applications
Films
Plastic films, plastic composite films, paper-plastic composite films, coextruded films, aluminum coated films, aluminum foil composite films, glass fiber aluminum foil paper composite films and many other film materials
Sheeting
PP, PVC and PVDC sheeting, metal foils, rubber pads and other sheeting materials
Paper and Paper Board
Aluminum coated paper for cigarette, paper aluminum plastic composite film and other paper and paperboards
Textiles and Nonwovens
Textiles and nonwoven fabrics
Construction Materials
Geotextiles, felt, roofing and building materials, vapor barrier membranes, etc.
Aseptic Wound Protection Films and Medical Plasters
|
|
Parameter
|
|
|
Testing Efficiency
|
0.01g/(m2·day) ~ 0.5g/(m2·day)
|
>24 hours
|
|
|
0.0006g/(100in2·day) ~ 0.0323g/(100in2·day)
|
|
|
|
0.5 g/(m2·day)~5 g/(m2·day)
|
12 ~ 24 hours
|
|
|
0.0323g/(100in2·day) ~ 0.3225g/(100in2·day)
|
|
|
|
> 5 g/(m2·day)
|
≤12 hours
|
|
|
> 0.3225 g/(100in2·day)
|
|
|
Max. Test Range
|
Water Method
|
10000/n(1-12)g/(m2·day)
|
|
|
|
645/n(1-6)g/(100in2·day)
|
|
|
Desiccant Method
|
1200g/(m2·day) per piece
|
|
|
|
77g/(100in2·day) per piece
|
|
Test Station
|
|
12
|
|
Test Temperature
|
°C
|
20 ~ 55 ±0.2
|
|
Test Humidity
|
RH
|
10% ~ 90% ±1%
|
|
Additional Functions
|
DataShieldTM Note2
|
Optional
|
|
|
Computer System required by GMP
|
Optional
|
|
|
CFR21 Part11
|
Optional
|
|
|
Specifications
|
|
Specimen Size
|
Φ74mm
|
|
Specimen Thickness
|
≤3mm
|
|
Test Method
|
Desiccant Method / Water Method
|
|
Standard Test Area
|
33cm2
|
|
Carrier Gas
|
Compressed Air
|
|
Drying of Carrier Gas
|
Long Service-life Desiccator (unnecessary to replace inner core)
|
|
Humidifying of Carrier Gas
|
High-efficiency mist-free humidity generator
|
|
Carrier Gas Pressure
|
≥0.6 MPa
|
|
Port Size
|
Φ6mm PU Tubing
|
Note: this is just a sample packaging. We Labthink cares all instruments that we are sending to customers.
Romote Service
Lifelong free of charge! unpacking, Installation, debugging, training, maintainance, etc
Field Service
Include installation, debugging, operation and application training, calibration, repairing
