Quick Details
-
Mounting Type:
-
Ceiling Mounted
-
Description:
-

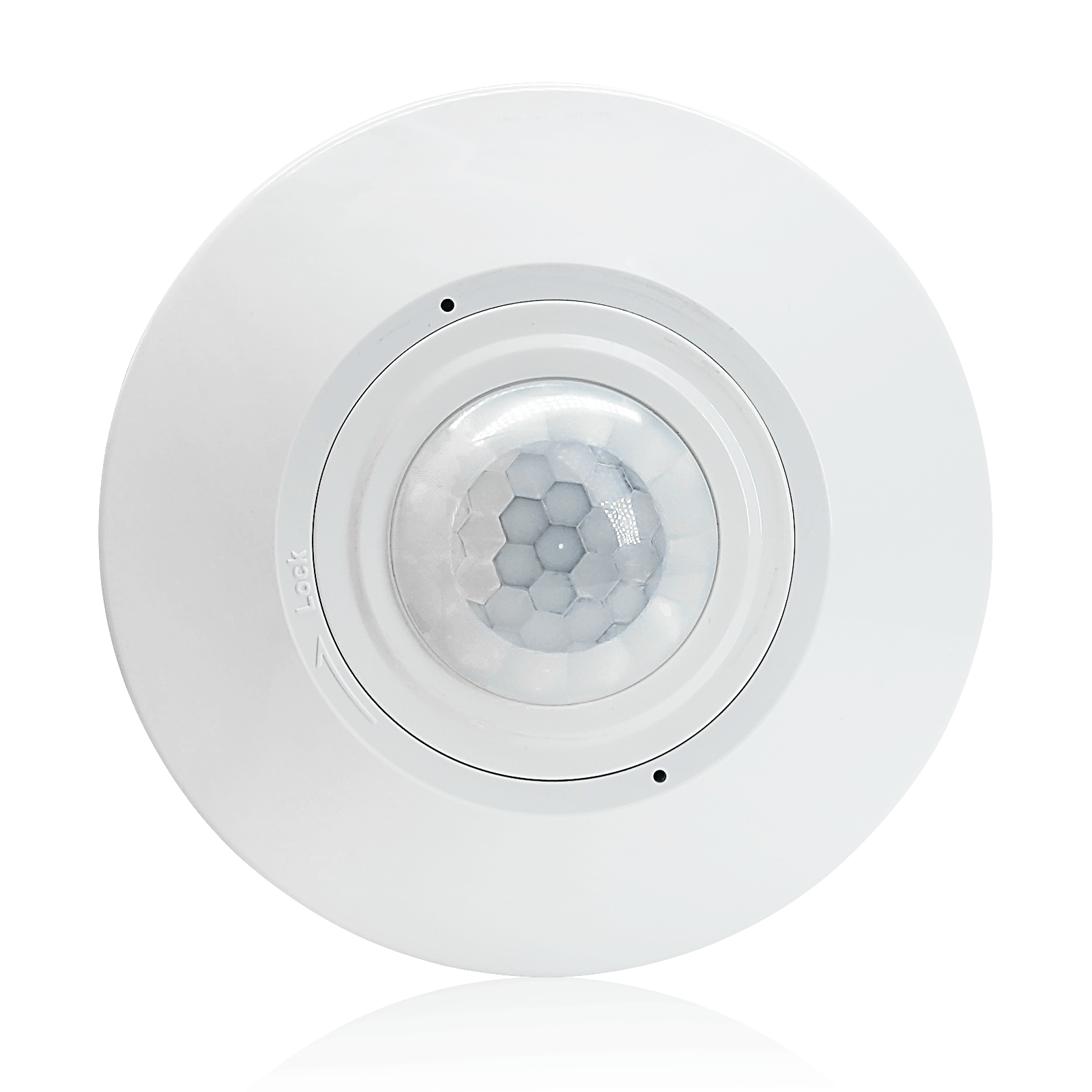

Ceiling Mounted 110V 220V 230V, 360 degree ceiling motion sensor RZ036
-
Model Number:
-
RZ036-10A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rayzeek
-
Theory:
-
pir inductive
-
Output:
-
same as input
-
Product Type:
-
ceiling mounted 360 degree motion sensor switch for light control
-
Input Voltage:
-
100VAC~265VAC
-
Detection Diameter:
-
8-12m(<27℃)
-
Load current:
-
≤10A
-
Installation Height:
-
2.5~3.5M
-
Detection Range:
-
360°
-
Rated load for incandescent or halogen:
-
500W/110VAC, 1100W/220VAC
-
Rated load for fluorescent or ballast:
-
250W/110VAC, 500W/220VAC
-
Working Humidity:
-
<90%RH
-
Working Temperature:
-
-10~+40℃
Quick Details
-
Usage:
-
light control auto turn on off
-
Series:
-
PIR Motion Sensor Switch
-
Features:
-
Ceiling Mounted PIR Motion Sensor Switch
-
Mounting Type:
-
Ceiling Mounted
-
Description:
-
Ceiling Mounted 110V 220V 230V, 360 degree ceiling motion sensor RZ036
-
Model Number:
-
RZ036-10A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rayzeek
-
Theory:
-
pir inductive
-
Output:
-
same as input
-
Product Type:
-
ceiling mounted 360 degree motion sensor switch for light control
-
Input Voltage:
-
100VAC~265VAC
-
Detection Diameter:
-
8-12m(<27℃)
-
Load current:
-
≤10A
-
Installation Height:
-
2.5~3.5M
-
Detection Range:
-
360°
-
Rated load for incandescent or halogen:
-
500W/110VAC, 1100W/220VAC
-
Rated load for fluorescent or ballast:
-
250W/110VAC, 500W/220VAC
-
Working Humidity:
-
<90%RH
-
Working Temperature:
-
-10~+40℃
|
Item No.:
|
RZ036-10A
|
|
Product Type
|
ceiling mounted 360 degree motion sensor switch for light control
|
|
Input Voltage
|
100VAC~265VAC
|
|
Output Voltage
|
Same as input voltage
|
|
Load current
|
≤10A
|
|
Installation Height
|
2.5~3.5M
|
|
Detection Range
|
360°
|
|
Detection Diameter
|
8~12M (<27 degree centigrade)
|
|
Detection Speed
|
0.6~1.5m/s
|
|
Rated load for incandescent or halogen
|
500W/110VAC, 1100W/220VAC
|
|
Rated load for fluorescent or ballast
|
250W/110VAC, 500W/220VAC
|
|
Sensitivity
|
High, low sensitivity adjustable.
|
|
Time Delay
|
1min. 15s, 30s, 3min, 5min, 10min, 30min adjustable.
|
|
Light Sensor
|
25Lux. Off, 15lux, 35lux optional.
|
|
Working Humidity
|
<90%RH
|
|
Working Temperature
|
'-10°C~40°C
|
