Quick Details
-
Power Source:
-
Gas
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SINOPTS
-
Model Number:
-
SNER-4801
-
Product name:
-
Energy regulator
-
Rated current:
-
16A
-
Life Time:
-
10000 cycles
-
Material:
-
Ceramics
-
Voltage:
-
250V/110V
-
Feature:
-
Eco-Friendly
-
Customization:
-
Support
-
Max Temperature:
-
T125
Quick Details
-
After-sales Service Provided:
-
Return and Replacement
-
Warranty:
-
1 Year
-
Application:
-
Hotel, Household
-
Power Source:
-
Gas
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SINOPTS
-
Model Number:
-
SNER-4801
-
Product name:
-
Energy regulator
-
Rated current:
-
16A
-
Life Time:
-
10000 cycles
-
Material:
-
Ceramics
-
Voltage:
-
250V/110V
-
Feature:
-
Eco-Friendly
-
Customization:
-
Support
-
Max Temperature:
-
T125
Product Description

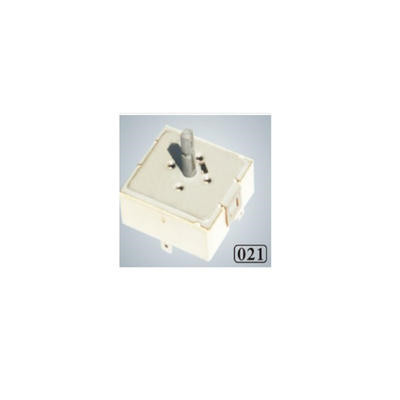

Infinite Energy Regulator For Electric Ceramic Stove
Angle of energy regulator
Mechanical: 360 °, At 0 ° There are two pole off positions at
Electrical: angle 75 ° The angle is 285 ° The maximum position at the time of operation( The maximum other angle is 208.5 °
Available on request)
Installation: Center ¼ BSPP bushing with centering bolt. Two M4, 28mm screw mounting brackets can be provided on request
Rating: 12a 230V resistive, SPDT + open pilot contact. Other contact configurations (SPST, SPDT without pilot, double circuit,
etc. can be provided on request)
Maximum ambient temperature: 125 ° C/257 ° F
Certification: UL / CE
|
Rated current
|
16A
|
|
Rated voltage
|
250V/110V
|
|
Type
|
Oven Parts
|
|
Product name
|
Energy regulator
|
|
Material
|
Ceramics
|
|
Max Temperature
|
T125
|
|
Life Time
|
10000 cycles
|
|
Feature
|
Eco-Friendly
|
