Quick Details
-
Finish:
-
Satin Chrome
-
Function:
-
Storeroom
-
Door Thickness:
-
38-50 mm
-
Key:
-
2 pcs Brass SC4 keys
-
Weight:
-
2.1KG
-
Warranty:
-
1 Million Life Cycles
-
Suitable for:
-
Commercial Building, Office, Shopping Mall
-
Packing:
-
White Box
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
0A1XA4
-
Material:
-
Zinc alloy
-
Finish:
-
Satin Chrome
-
Function:
-
Storeroom
-
Door Thickness:
-
38-50 mm
-
Key:
-
2 pcs Brass SC4 keys
-
Weight:
-
2.1KG
-
Warranty:
-
1 Million Life Cycles
-
Suitable for:
-
Commercial Building, Office, Shopping Mall
-
Packing:
-
White Box
Product Description

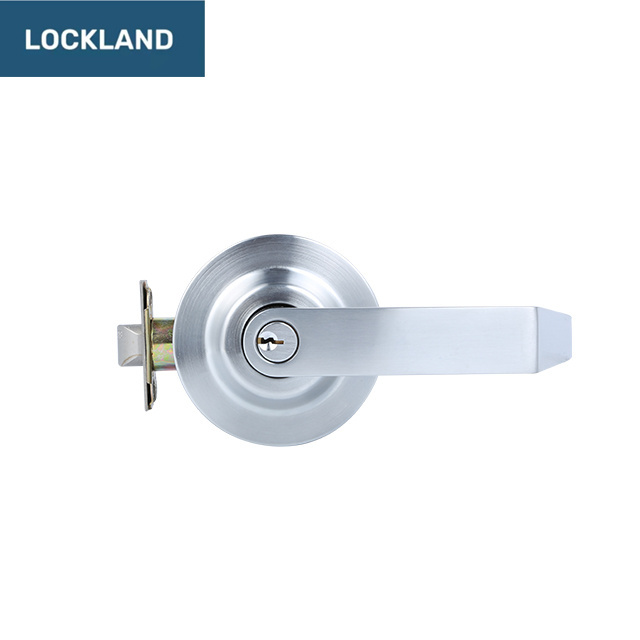

ANSI Grade 1 Commercial Lever set
|
Product Name
|
ANSI G1 Lever set
|
Function
|
Storeroom
|
|
Item NO.
|
0A1XA4
|
Colour
|
Satin Chrome
|
|
Material
|
Zinc Alloy
|
Place of Product
|
Guangdong Province,China
|
|
Key
|
2 pcs Brass Keys
|
Weight
|
2.1 kg
|
|
Free Wheeling
|
Yes
|
Certification
|
ANSI G1, UL 3 h
|
Product Features
* Meets ANSI 156.2 grade 1 requirements.
* UL listed chrome plated latch bolt.
* Lock cylinder: 6 pin solid brass "C" keyway standard.
* Fixed throughbolts for added security.
* Clutch function helps deter from breaking the mechanism. This means that when the lever is locked, it still will turn freely without retracting the latch.
* Cold rolled steel and zinc dichromated finish for rust resistance.
* ADA Compliant.
* 10 year limited mechanical warranty with a 1 year limited finish warranty.
* UL listed chrome plated latch bolt.
* Lock cylinder: 6 pin solid brass "C" keyway standard.
* Fixed throughbolts for added security.
* Clutch function helps deter from breaking the mechanism. This means that when the lever is locked, it still will turn freely without retracting the latch.
* Cold rolled steel and zinc dichromated finish for rust resistance.
* ADA Compliant.
* 10 year limited mechanical warranty with a 1 year limited finish warranty.
Details Images
Available Functions: for 0A1XA1 Series Commercial Lever
* Single Dummy: For use as a pull or to match trim, one (1) side.
* Communicating: Latch bolt operated by inside lever. Blank plate outside.
* Passage (Hall or Closet)(ANSI F75): Latchbolt operated by lever from either side at all times. For doors that don't need
locking.
* Privacy (Bedroom or Bathroom)(ANSI F76): Latchbolt operated by lever from either side or emergency release in outside lever.
Outside locked by push button on inside lever. Outside lever unlocked by emergency release in outside lever, rotating inside lever or closing door.
* Keyed Entry (ANSI F81): Outside lever locked by push/turn button inside. When outside lever is locked by push button inside - key from outside or rotating inside lever unlocks outside lever. When outside lever is locked by pushing and turning the button inside - key from outside or rotating inside lever retracts the latch but does not unlock outside lever.
* Classroom (ANSI F84): Outside lever locked and unlocked by key. Inside lever always unlocked.
* Storeroom (ANSI F86): Outside lever fixed. Entry by key only. Inside lever always free (unlocked).
Suitable for Different Doors
