Quick Details
-
Application:
-
High-tech electronics
-
Width:
-
Custom, 7--610mm
-
Grade:
-
Alloy
-
Model Number:
-
C17200,C17500
-
Brand Name:
-
DLX
-
Place of Origin:
-
Jiangsu
-
Product Name:
-

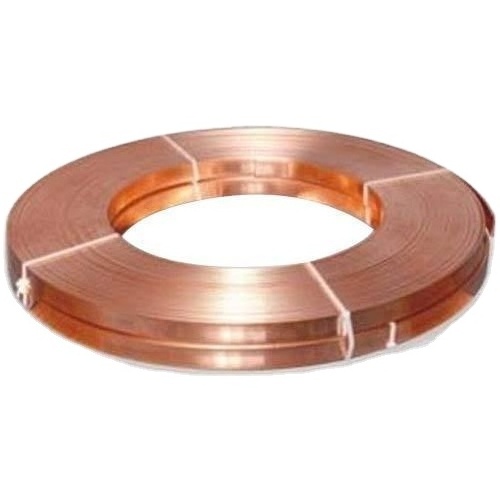

beryllium copper strip
-
Shape:
-
Strip Coil Roll
-
Surface:
-
Bright
-
Type:
-
Plate Coil
-
Thickness:
-
0.035- 2.5mm
-
Hardness:
-
1/2H
-
Payment Term:
-
30%TT+70% Balance
-
Delivery Time:
-
7-15 Days
-
Payment terms:
-
30%TT+70% Balance
Quick Details
-
Material:
-
Red Copper
-
Cu (Min):
-
60
-
Alloy Or Not:
-
Is Alloy
-
Application:
-
High-tech electronics
-
Width:
-
Custom, 7--610mm
-
Grade:
-
Alloy
-
Model Number:
-
C17200,C17500
-
Brand Name:
-
DLX
-
Place of Origin:
-
Jiangsu
-
Product Name:
-
beryllium copper strip
-
Shape:
-
Strip Coil Roll
-
Surface:
-
Bright
-
Type:
-
Plate Coil
-
Thickness:
-
0.035- 2.5mm
-
Hardness:
-
1/2H
-
Payment Term:
-
30%TT+70% Balance
-
Delivery Time:
-
7-15 Days
-
Payment terms:
-
30%TT+70% Balance
Products Description
C17200 C17500 C5191 Copper Beryllium Foil/Strip Phosphorus Bronze Coil Price Per Kg
1. Grade: C17200 Beryllium Copper Alloy Strip/Coil/Foil
2. Size: Wall Thickness: 1mm-200mm
3. Standard: JIS ASTM DIN EN ISO
4. Certification: ISO9001, SGS, ROHS
With the assistance of our advanced technology, we offer quality range of Copper Strips and Plate. Manufactured using finest grade of raw material our array is widely used in numerous industries for excellent finish, corrosion resistance and durability. We even custom design these strips and flats as per client specific requirement.
2. Size: Wall Thickness: 1mm-200mm
3. Standard: JIS ASTM DIN EN ISO
4. Certification: ISO9001, SGS, ROHS
With the assistance of our advanced technology, we offer quality range of Copper Strips and Plate. Manufactured using finest grade of raw material our array is widely used in numerous industries for excellent finish, corrosion resistance and durability. We even custom design these strips and flats as per client specific requirement.
Specification
|
Grade
|
State
|
|
Heat Treatment
|
Tensile Strength
|
Yield Strength
|
Elongation
|
Fatigue Hardness
|
Vickers Hardness
|
|
|
HTC17200
|
1/4H
|
|
--
|
56-62
|
42-57
|
20-45
|
22-25
|
121-185
|
|
|
|
1/2H
|
|
--
|
59-71
|
52-67
|
12-30
|
22-27
|
176-216
|
|
|
|
H
|
|
--
|
70-85
|
63-81
|
2-18
|
25-27
|
216-287
|
|
|
|
AT
|
|
3 hr 315'C
|
116-138
|
98-124
|
3-15
|
28-32
|
353-413
|
|
|
|
1/4HT
|
|
2 hr 315'C
|
123-145
|
105-131
|
3-10
|
28-32
|
353-424
|
|
|
|
1/2HT
|
|
2 hr 315'C
|
130-152
|
112-138
|
1-8
|
30-33
|
373-435
|
|
|
|
HT
|
|
2 hr 315'C
|
133-155
|
116-145
|
1-6
|
32-35
|
373-446
|
|
|
Product Name
|
CuBe2 C17200 C17500 Copper strip beryllium copper price per kg
|
|
Material
|
C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920,
C10930,C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300, C12500,C14200,C14420,C14500,C14510,C14520,C14530,C17200,C19200, C21000,C23000,C26000,C27000,C27400,C28000,C33000,C33200,C37000, C44300,C44400,C44500,C60800,C63020,C65500,C68700,C70400,C70620, C71000,C71500,C71520,C71640,C72200,etc |
|
Shape
|
Strip
|
|
Standard
|
ASTM B187/B187M-03,JIS H3250-2006,EN 12163-98,,GB/T 4423-2007,etc.
|
|
Grade
|
C17200
|
|
Chemical Comp. (%)
|
ASTM
|
|
Surface
|
Mill,polished,bright,Hairline,brush,checkered,,mirror,antique,sand blast
,etching,etc. |
|
Used
|
Electrical Industry: Electrical Switch and Relay Blades, Fuse Clips, Switch Parts, Relay parts, Connectors, Spring Connectors,
Contact Bridges, Belleville Washers, Navigational Instruments, Clips Fasteners: Washers, Fasteners, Lock Washers, Retaining Rings, Roll Pins, Screws, Bolts Industrial: Pumps, Springs, Electrochemical, Shafts, Non Sparking Safety Tools, Flexible Metal Hose, Housings for Instruments, Bearings, Bushings, Valve Seats, Valve Stems, Diaphragms, Springs, Welding Equipment, Rolling Mill Parts, Spline Shafts, Pump Parts, Valves, Bourdon Tubes, Wear Plates on Heavy Equipment. |
Recommend Products
About Us
CHANGZHOU DLX ALLOY CO, LTD was established in 2002 and has got Iso9001 International Quality Management System Certificate and SGS Certificate. Our factory is professional in researching and producing special alloy material. From melting, drawing, heat treatment, finishing and testing .We offer nickel-based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, precision alloy, FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate.
1.Raw material
2.Smelting
3.Drawing
4.Rolling
5.Annealing
6.Finished Product
7.Detection
8.Packing
9.Shipping
Customized service
FAQ
What is your working time?
Monday-Saturday : 7:30AM-17:00PM (Beijing time, GMT+08.00)
We have public holiday during May.1-3, Oct.1-7 and Chinese New Year holiday . Pls email us during our holiday if u have any question.
Do you provide free samples?
Yes, we can provide a free sample for testing,buyer should bear all the shipping costs.
What is your payment terms?
T/T,L/C,D/A,D/P,Western Union,MoneyGram,Paypal
What is the lead time?
Usually sample lead time is 7 days after payment has been confirmed.
