- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Gamic
-
Model Number:
-
GUF120A-W
-
Accuracy:
-
±1%
-
Pipe size:
-
DN32-DN6000
-
Medium temperature:
-
-30~160°C
-
Signal output:
-
Analog, pulse, relay output optional
-
Pow supply:
-
DC8~36V or AC85~264V (optional)
-
Display:
-
LCD
-
Flow rate:
-
0~±7m/s
-
Mounting:
-
Remote wall-mounted
-
Power consumption:
-
1.5W
-
KW:
-

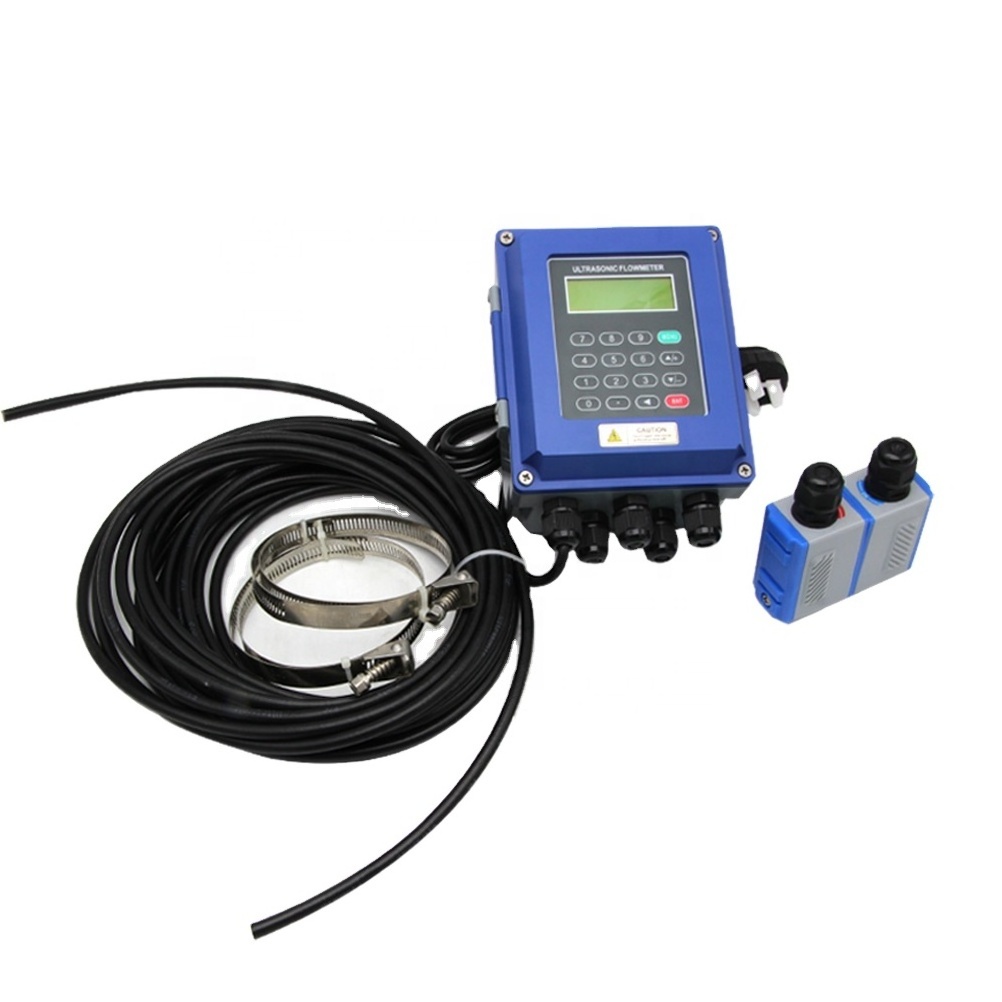

GUF120A-W Digital Ultrasonic Water Flowmeter With Modbus RTU
Quick Details
-
Type:
-
Variable Area Water Flowmeters
-
Warranty:
-
1YEARS
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Gamic
-
Model Number:
-
GUF120A-W
-
Accuracy:
-
±1%
-
Pipe size:
-
DN32-DN6000
-
Medium temperature:
-
-30~160°C
-
Signal output:
-
Analog, pulse, relay output optional
-
Pow supply:
-
DC8~36V or AC85~264V (optional)
-
Display:
-
LCD
-
Flow rate:
-
0~±7m/s
-
Mounting:
-
Remote wall-mounted
-
Power consumption:
-
1.5W
-
KW:
-
GUF120A-W Digital Ultrasonic Water Flowmeter With Modbus RTU
Products Description
What is a ultrasonic flow meter used for?
The ultrasonic flowmeter uses the time difference principle of ultrasonic wave propagation in the medium to measure the flow rate.It is mainly used to measure liquid, such as ultra-pure liquid, chemical, raw sewage, reclaimed water, cooling water, river water, plant sewage, etc.
Get an Instant Quote Now !
You need more than just a single ultrasonic flowmeter, you need a veteran supplier who has been in the field for 10+ years to build your brand and grow your profits. Let GAIMC help you achieve business success.
Features
What are the advantages of our ultrasonic flow meter?
1.
Linearity: 0.5%, Repeatability: 0.2%, Accuracy:±1%
2.
Easy to operate.
3.
Several type transducers for selection, measuring pipe size is from DN15mm to DN6000mm
4.
Adopt low voltage, multi-pulse technology to improve accuracy, useful life and reliability.
5.
Powerful Recording Function, record the totalizer data of the last 64 days/64 monthes/5 years.
Details Images
Consumers deserve a better ultrasonic flowmeter.
With more than 10 years experience in ultrasound, we are well established on the market as a specialist solutions provider in the field of ultrasonic technologies.With a strong research and development department and flexible manufacture, all under one roof, we are your ideal partner for customer-specific solutions. Together with you, our client, we analyse your exact measurement and metering requirements, The short distances between our various departments guarantee a smooth and reliable transition from development to serial production without any loss of knowledge.
Product Parameters
|
Principle
|
Transit- time ultrasonic flowmeter
|
|
Medium
|
Water
|
|
Diameter
|
DN15~6000mm
|
|
Output
|
4~20mA, pulse, Relay
|
|
Data Interface
|
Insulate Rs485 serial interface, upgrade the flowmeter software by computer, support the MODBUS
|
|
Pipe Material
|
Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed
|
|
Flowrate
|
0~±7m/s,Forward and backward measurement
|
|
Protection grade
|
Host:IP67;flow sensor:IP68
|
|
Power Supply
|
DC8~36V or AC85~264V
|
|
Installation
|
Clamp on (No need cut pipe), Insertion, pipe type
|
Application & Customer Photos
Where can you use a ultrasonic flow meter?
The wall-mounting flow meter can be applied to a wide range of pipe flow measurements. Applicable liquids include pure liquids as well as liquid with small quantity of tiny particles.
Water (hot water, chilled water, city water, sea water, waste water, etc.);
With the highest of quality at fair prices. Please contact us to discuss your project. We look forward to hearing from you.
