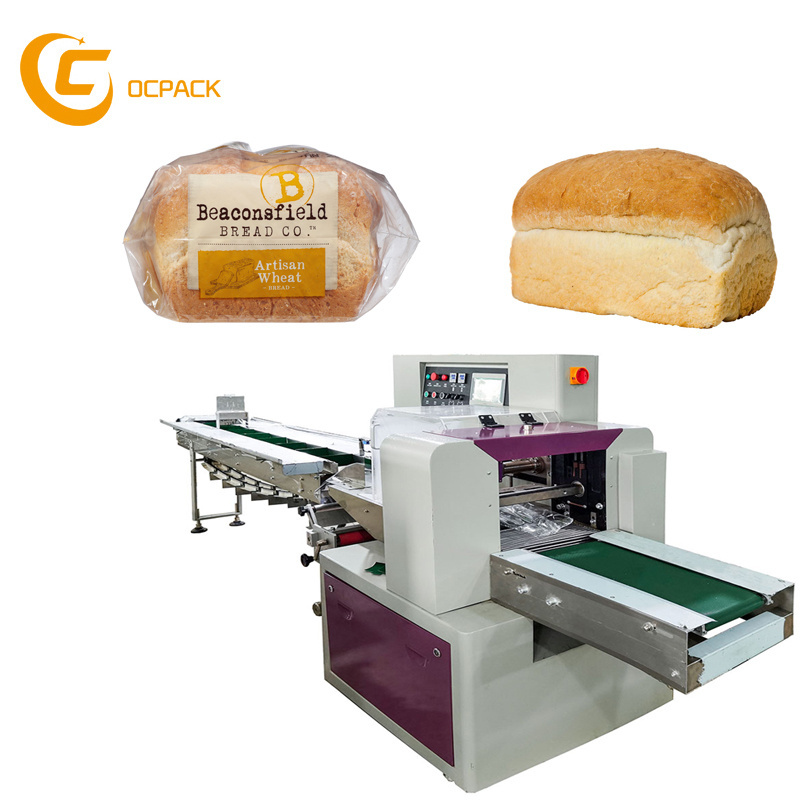

High speed industrial horizontal pita bread bag packaging machine

High speed industrial horizontal pita bread bag packaging machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $6000

≥3 Sets

US $5500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight (KG):: 500

Voltage:: 220-380V

Place of Origin:: Guangdong, China

Brand Name:: OCPACK

Dimension(L*W*H):: (L)3770*(W)670*(H)1450mm

After-sales Service Provided:: Engineers available to service machinery overseas

Modle packaging type:: Food Triple Biscuit Packaging Machine Alfajores Candy Packing Machine

Products heigh:: Max.55mm

Packing speed:: 50-230bags/min

Film roll width:: Max.250mm

Film roll length:: Max.280mm

The biggest roll diameter:: Max.300mm

Packaging film material:: OPP/CPP,OPP/CE,MST/PE, PET ETC.

Power:: 220V,50/60HZ,2.4KVA

Net weight/Gross Weight:: 850kg/950kg

Quick Details

Function:: FILLING, Labeling, Sealing, SLITTING, Wrapping

Packaging Type:: Bags, CANS, case, Film, Foil, Pouch, Stand-up Pouch

Packaging Material:: Paper, Plastic, Heat-sealing film

Weight (KG):: 500

Voltage:: 220-380V

Place of Origin:: Guangdong, China

Brand Name:: OCPACK

Dimension(L*W*H):: (L)3770*(W)670*(H)1450mm

After-sales Service Provided:: Engineers available to service machinery overseas

Modle packaging type:: Food Triple Biscuit Packaging Machine Alfajores Candy Packing Machine

Products heigh:: Max.55mm

Packing speed:: 50-230bags/min

Film roll width:: Max.250mm

Film roll length:: Max.280mm

The biggest roll diameter:: Max.300mm

Packaging film material:: OPP/CPP,OPP/CE,MST/PE, PET ETC.

Power:: 220V,50/60HZ,2.4KVA

Net weight/Gross Weight:: 850kg/950kg

Products Description

Technical specifications
Type	OC-250B	OC-350B	OC-450B
Film width	Max.250mm	Max.350mm	Max.450mm
Bag length	65~190mm/120mm~280mm			130~450mm
Bag width	30~110mm	50~160mm	50~180mm
Product height	Max.40mm	Max.45mm	Max.80mm
Film roll diameter	Max.320mm
Packing rate	40~230bags/min			30~180bags/min
Machine weight	410KG	490KG	550KG

Application

>What do you want to pack?

Suitable for packing regular objects, such as bread, biscuits, moon cakes, cereal bars, ice cream,

Vegetables, chocolate, rusks,tableware, lollipops, etc.

Optional Devices

The packaging machine has date coding,fills the package with nitrogen,makes the linking bag,makes the easy tearing and pinches the package.

Machine display

Smart screen

Brand: Weinview or customized according to your needs

Language: You can choose seven languages,

For example: English, Russian,Spanish, French,etc . You can also customize the language as needed.

Function: You can set and change the weight of the packaging material and the length of the bag

Material conveyor belt

* 304 Stainless steel fader type, PVC Belt, fader and plastic tray.

*Conveyor used food grade 304 stainless steel to ensure the good safely.

*The function of anti-aircraft bag can be added to keep materials in the packaging. When there is no material, the machine can automatically stop or alarm.

Bag maker

*The bag making machine is made of 304 stainless steel and driven by a servo.

*The packaging film ispulled into the bag making machine by friction.

*The packaging is simple and beautiful, with a humanized design. Different bag making equipment can be replaced according to different bag widths. One machine can pack bags of various widths.

Cutting & sealing parts

*It is Stainless steel of material to making it will than the irol will be strong more, he life can using more then 2 years.
*According the products to choice the single knife or double knife. *Customized sealing patterns and notch or automatic punching
device. * Positioned with two screws, it is easy to replace,and it is easier to clean with a copper brush.
