Quick Details
-
Coil Number:
-
AUTOTRANSFORMER
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
COMPERE
-
Model Number:
-
KP-YCT-T24
-
Product name:
-
Split Core Current Transformer for electrical loading monitoring
-
Output:
-
5A
-
Accuracy class:
-
1.0/0.5/0.2
-
Frequency:
-
50Hz/60Hz
-
Rated current:
-
50A 100A 150A 200A 250A 300A/5A
-
Insatallation type:
-
Clamp-on current transformer
-
Standard:
-
IEC61869-1 / IEC61869-3
-
Coil number:
-
Customized
-
Material:
-
ABS cooper wire
-
Color:
-
Black
Quick Details
-
Use:
-
current
-
Phase:
-
Three
-
Coil Structure:
-
TOROIDAL
-
Coil Number:
-
AUTOTRANSFORMER
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
COMPERE
-
Model Number:
-
KP-YCT-T24
-
Product name:
-
Split Core Current Transformer for electrical loading monitoring
-
Output:
-
5A
-
Accuracy class:
-
1.0/0.5/0.2
-
Frequency:
-
50Hz/60Hz
-
Rated current:
-
50A 100A 150A 200A 250A 300A/5A
-
Insatallation type:
-
Clamp-on current transformer
-
Standard:
-
IEC61869-1 / IEC61869-3
-
Coil number:
-
Customized
-
Material:
-
ABS cooper wire
-
Color:
-
Black

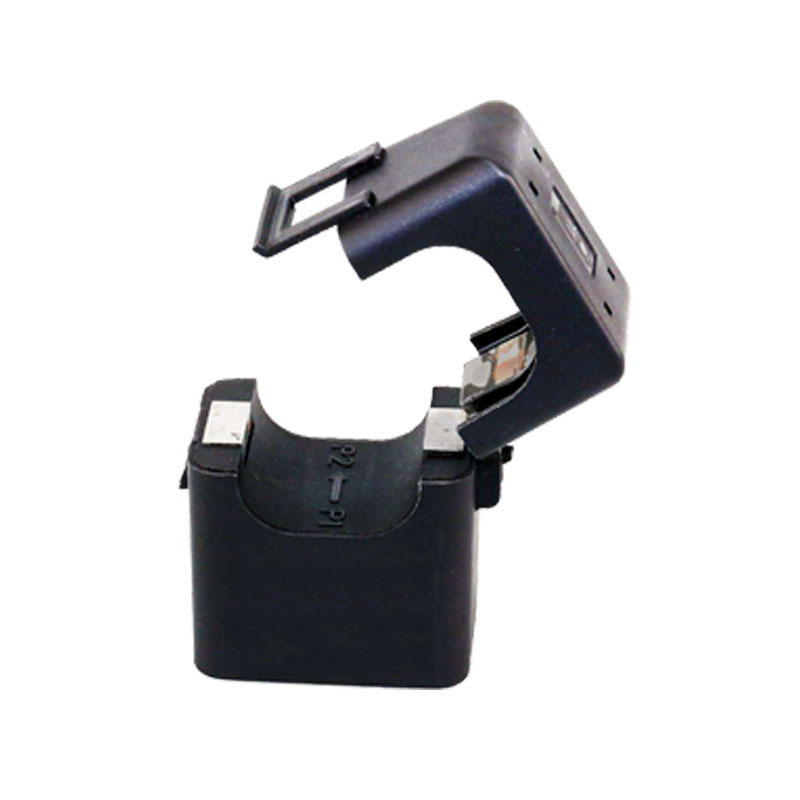

Split CT 100A/5A AC Three Phase Toroidal Indoor Split-Core E-meter Current Transformer
Details Images
Main features of Split core current transformer
1. Open-close type installation, easy to install and disassemble.
2. Stable performance, light weight, multiple core size for option, 10/16/24/36/50mm.
3. Open-close type installation, no to need to cut off the power.
1. Open-close type installation, easy to install and disassemble.
2. Stable performance, light weight, multiple core size for option, 10/16/24/36/50mm.
3. Open-close type installation, no to need to cut off the power.
Product Paramenters
|
ITEM MODEL
|
rated input current
|
rated output current
|
length of stay
|
Nonlinearity error (5%-120%)
|
|
|
|
|
|
|
|
F(I)%
|
δ(I)°
|
|
|
KP-YCT-T36
|
0~600A
|
0~200mA Customized
|
2464 Sheathed cable
|
≤1.5%
|
≤1°
|
|
|
KP-YCT-T36
100A/5A
|
100A
|
5A
|
2.5 square/1m
|
≤0.5%
|
≤0.7%
|
|
|
KP-YCT-T36
150A/5A |
150A
|
5A
|
2.5 square/1m
|
≤0.5%
|
≤0.5%
|
|
|
KP-YCT-T36
200A/5A |
200A
|
5A
|
2.5 square/1m
|
≤0.5%
|
≤0.2%
|
|
|
KP-YCT-T36
250A/5A |
250A
|
5A
|
2.5 square/1m
|
≤0.5%
|
≤0.2%
|
|
|
KP-YCT-T36
300A/5A |
300A
|
5A
|
2.5 square/1m
|
≤0.5%
|
≤0.2%
|
|
|
KP-YCT-T36
400A/5A |
400A
|
5A
|
2.5 square/1m
|
≤0.5%
|
≤0.2%
|
|
|
KP-YCT-T36
500A/5A |
500A
|
5A
|
2.5 square/1m
|
≤0.5%
|
≤0.2%
|
|
|
KP-YCT-T36
600A/5A |
600A
|
5A
|
2.5 square/1m
|
≤0.5%
|
≤0.2%
|
|
|
|
|
|
|
|
|
|
