Quick Details
-
Driving force:
-
electric or diesel driven or hydraulic
-
Standard or Nonstandard:
-
Standard
-
Power:
-
37KW
-
Pressure:
-
Max 3Mpa
-
Flow:
-
Max 850L/min
-
Pump Speed:
-
82times/min
-
Stroke:
-
180mm
-
Cylinder diameter:
-
150mm
-
Application:
-
transfer water, mud, and other flushing fluids
Quick Details
-
Brand Name:
-
Wodetec
-
Type:
-
Mud Pump, Horizontal double cylinder reciprocating double action piston Mud Pump
-
Model Number:
-
BW850/2
-
Driving force:
-
electric or diesel driven or hydraulic
-
Standard or Nonstandard:
-
Standard
-
Power:
-
37KW
-
Pressure:
-
Max 3Mpa
-
Flow:
-
Max 850L/min
-
Pump Speed:
-
82times/min
-
Stroke:
-
180mm
-
Cylinder diameter:
-
150mm
-
Application:
-
transfer water, mud, and other flushing fluids
Product Description
BW-850/2 Mud Pump is a
horizontal double-cylinder double-action piston pump
. It has the advantages of compact construction, light weight, readily movable and easy to be operated etc. The pump can be driven by
electric motor or diesel engine
according to the requirement of the customer in order.
electric motor mud pump

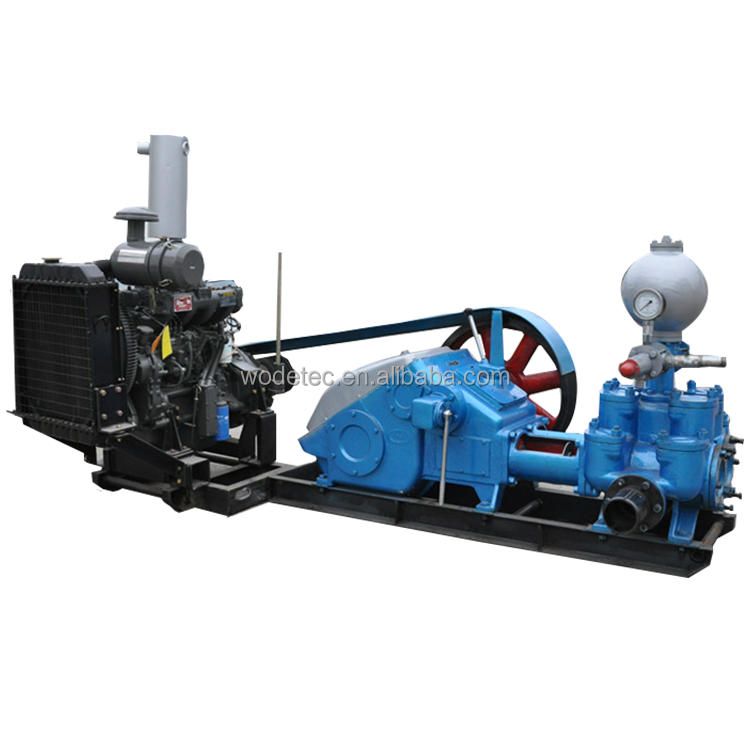

diesel engine mud pump
Technical Data
|
Type
|
BW850/2 mud pump(
electric motor
)
|
|
|
|
Cylinder diameter (mm)
|
150
|
|
|
|
Stroke (mm)
|
180
|
|
|
|
Pump speed (times/min)
|
82
|
58
|
|
|
Flow (L/min)
|
850
|
600
|
|
|
Pressure (MPa)
|
2
|
3
|
|
|
Outlet pipe diameter(mm)
|
64
|
|
|
|
Inlet pipe diameter(mm)
|
127
|
|
|
|
Power(kw)
|
37
|
|
|
|
Size (mm)
|
2000*1030*1400
|
|
|
|
Weight (kg)
|
1500
|
|
|
|
Type
|
BW850/2 mud pump（
diesel engine
）
|
|
|
|
Cylinder diameter (mm)
|
150
|
|
|
|
Stroke (mm)
|
180
|
|
|
|
Pump speed (r/min)
|
82
|
58
|
|
|
Flow (L/min)
|
850
|
600
|
|
|
Pressure (MPa)
|
2
|
3
|
|
|
Input speed(r/min)
|
470
|
|
|
|
Discharge hose diameter(mm)
|
65
|
|
|
|
Inlet hose diameter(mm)
|
125
|
|
|
|
Dynamic force
|
diesel engine R4105
|
|
|
|
Size (mm)
|
2400*1650*1450
|
|
|
|
Weight (kg)
|
1775
|
|
|
BW850/2 Mud Pump Advantage
1. Multi-speed shift gears for variable displacement.
2. Lightweight structure, easy to move.
3. Easy to operate.
Product Display
Product Application
BW850/2 mud pump is widely used to
transfer water, mud, and other flushing fluids
when drilling in water well, and oil and gas well areas, such as mining, drilling, coal, railway, highway, water conservancy, hydropower, and bridges. It can be also used for high-rise buildings, and foundation reinforcement works.
