Quick Details
-
Brand Name:
-
ZHONGLIAN
-
Voltage:
-
380V 50HZ
-
Power:
-
70kw
-
Dimension(L*W*H):
-
20*3.2*3m
-
Weight:
-
18 kg
-
TYPE:
-
full-servo automatic
-
Speed:
-
100-600psc/min
-
Application:
-
baby diaper making machine
-
certificates:
-
CE, ISO
-
servo motor:
-
Mitsubishi or Siemens
-
product style:
-
I shape diapers
-
cutter:
-
D2 or M7
-
install capacity:
-
320kw
-
weight:
-
38t
-
Electrical:
-
Schneider or customed
Quick Details
-
Production Capacity:
-
100 pcs/min
-
Processing Type:
-
baby diaper making machine
-
Place of Origin:
-
China
-
Brand Name:
-
ZHONGLIAN
-
Voltage:
-
380V 50HZ
-
Power:
-
70kw
-
Dimension(L*W*H):
-
20*3.2*3m
-
Weight:
-
18 kg
-
TYPE:
-
full-servo automatic
-
Speed:
-
100-600psc/min
-
Application:
-
baby diaper making machine
-
certificates:
-
CE, ISO
-
servo motor:
-
Mitsubishi or Siemens
-
product style:
-
I shape diapers
-
cutter:
-
D2 or M7
-
install capacity:
-
320kw
-
weight:
-
38t
-
Electrical:
-
Schneider or customed

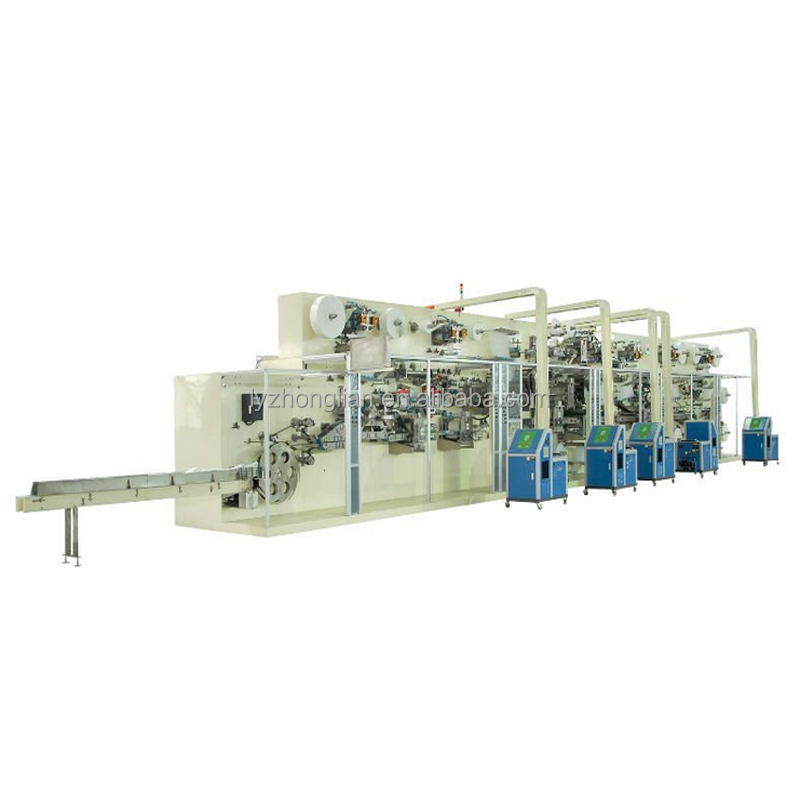

China factory price automatic Full servo baby diaper making machine price with CE certification (I shape)
Main functions and features:
1. Baby diaper machine motors can convert frequency automatically.Driving system consists of synchronous belt (Optibelt, made in Germany) and round arc gear combined with gear case;The key parts adopt NSK,BEM bearings (made in Japan and Germany) for smooth transmission, Japanese Mitsubishi and German Siemens electronics make the machine more stable, prolonging the life lifetime.The functions are complete. It can produce diapers of economic type and high-grade type.It can produce four types of products(XL,L,M,S) with a few parts being easily changed.
2. Baby diaper machine has top sheet no woven, back sheet PE film, elastic waist, frontal waist tape and side waist tape devices.
3. Baby diaper machine has leg cuff and leak proof devices.
4. Baby diaper machine frequency converter controlling feeding device for fluff pulp and SAP.
5. Baby diaper machine has urgent stop unit.
6. Baby diaper machine products can be double-folded or tri-folded arranging-out.
7. Baby diaper machine raw materials mechanical unwinding system.
8. Baby diaper machine can also produce 3 sizes of diaper pads.
9. Baby diaper machine Diaper stacker is included and link with the main machine .
Main technician parameters:
|
1 |
Design speed |
400/500/650/800pcss / min |
|
2 |
Working speed |
300/400/550/650pcs/min |
|
3 |
Qualified rate
|
≥ 97% ( exclude the wastage due to the glue applicators and materials splicing joint) |
|
4 |
Efficiency |
≥ 85% |
|
5 |
installation capacity |
≥205KW |
|
7 |
Electricity |
380V ±5%,50HZ |
|
8 |
Wire |
Three phases four wires 380V/50Hz (ground wire) 3X120mm³+1X50mm³+1X25mm³ |
|
9 |
Air pressure |
6 kg/cm2 ≥0.6mpa |
|
10 |
Total weight |
82tons |
|
11 |
Machine size |
30 × 10 × 5 M(L×W×H) |
|
12 |
Working space |
35 ×10× 7 M (L×W×H) |
|
13 |
Machine color |
R ice white, can be changed by order |
|
14 |
Product size |
S, M , L , XL |
|
1 5 |
Containers |
6 X40HQ |
