Quick Details
-
Channel:
-
16/32/48/63 E1
-
Interfaces:
-
STM-1 SHD
-
Concurrent Calls:
-
512to 2016 concurrent calls
-
lls Per Second (cps):
-
130
-
Protocol:
-
ISDN PRI, SS7, SIP UDP/TCP
-
Fax:
-
Fax over IP (T.38 and Pass-through)
-
SIP Trunks:
-
Multiple SIP trunks
-
Managemet:
-
DINSTAR Cloud Management
-
PSR:
-
Dual Power Supply redundancy
-
Hot stand-by:
-
Dual Mainboard hot stand by
Quick Details
-
Type:
-
VoIP Gateway
-
Brand Name:
-
DINSTAR
-
Place of Origin:
-
Guangdong, China
-
Channel:
-
16/32/48/63 E1
-
Interfaces:
-
STM-1 SHD
-
Concurrent Calls:
-
512to 2016 concurrent calls
-
lls Per Second (cps):
-
130
-
Protocol:
-
ISDN PRI, SS7, SIP UDP/TCP
-
Fax:
-
Fax over IP (T.38 and Pass-through)
-
SIP Trunks:
-
Multiple SIP trunks
-
Managemet:
-
DINSTAR Cloud Management
-
PSR:
-
Dual Power Supply redundancy
-
Hot stand-by:
-
Dual Mainboard hot stand by
Products Description
MTG3000
HIGH DENSITY DIGITAL VOIP GATEWAY
MTG3000 is a carrier-grade Digital VoIP gateway, scalable from 16 to 63 ports E1/T1 with STM-1 interface. It provides
carrier-grade VoIP and FoIP services, as well as value-added functions such as modem and voice recognition. With highly
maintainable, manageable and operable features, it offers a high performace, reliable communication network for users.
MTG3000 supports a wide-range of signaling protocols, realizing the interconnection between SIP and traditional signals like ISDN
PRI / SS7, utilizing efficiency of trunking resources while ensuring voice quality. With multiple voice codes, secure signal
encryption and smart voice recognition technology, MTG3000 is ideal for a variety of applications of services providers and
telecom operators.
|
MTG Series
|
Model Options
|
Description
|
|
MTG200
|
MTG200-1E1
MTG200-2E1 MTG200-4E1 |
1E1/1T1, 30 Calls
2E1/1T1, 60 Calls 4E1/1T1, 120 Calls on G.711, 60 calls G.723, G.729 |
|
MTG1000B
|
MTG1000B-1E1
MTG1000B-2E1 |
1E1/1T1, 30 Calls
2E1/1T1, 60 Calls |
|
MTG2000
|
MTG2000-4E1
MTG2000-8E1 MTG2000-12E1 MTG2000-16E1 MTG2000-20E1 |
4E1/1T1, 120 Calls
8E1/1T1, 240 Calls 12E1/1T1, 360 Calls 16E1/1T1, 480 Calls 20E1/1T1, 600 Calls |
|
MTG3000
|
MTG3000-16E1
MTG3000-32E1 MTG3000-48E1 MTG3000-63E1 |
STM-1, 512Calls
STM-1, 1024 Calls STM-1, 1536 Calls STM-1, 2016 Calls |
Details Images

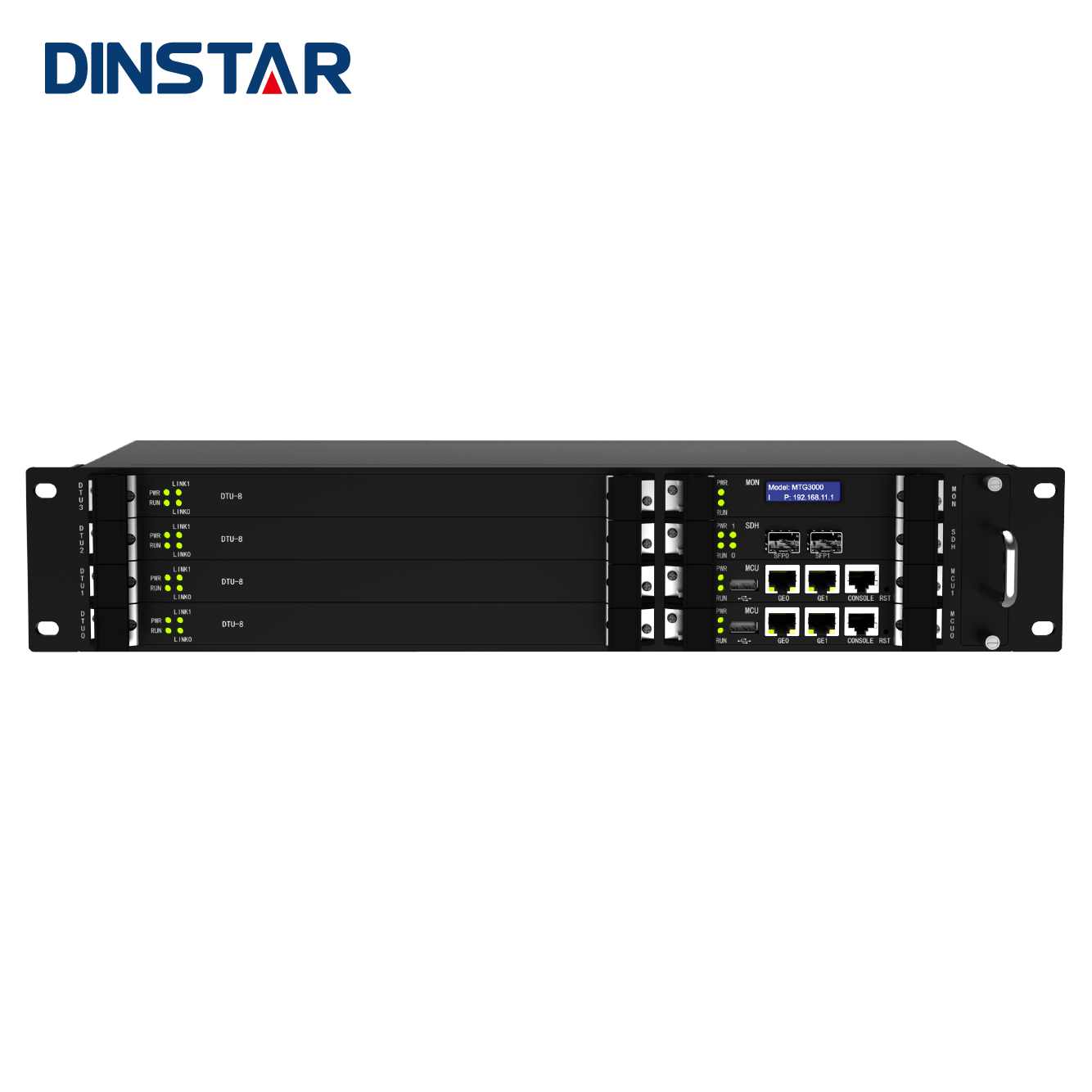

Front
Back
key features
Carrier grade hardware design, 1+1 power supply and MCU, hot plug High-integrated structure, STM-1 155M (63*E1) in 2U size Support flexible dialing rules and operations, allowing users to customize dialing rules according to different working environments Support multiple coding standards:G.711A/U, G.723.1, G.729A/B and iLBC High compatibility, interoperable with PBX of Avaya, NEC and Alcatel, and also leading soft-switch of Huawei,Ciscoand ZTE etc.
Project Scenario
Product Paramenters
Physical Interfaces
• SDH Interfaces
2* Standard LC SDH, 155M
1+1 Redundancy Channels Protection
Master/Slave Clock Source
• Main Control Unit(MCU)
1+1 Redundancy, Hot Plug
• Digital Processing Unit (DTU)
4* DTU Maximum
Support 512 Voice Channels Each Board
• Ethernet Interface
GE1: 10/100/1000 BaseT Adaptive Ethernet
GE0: 10/100/1000 BaseT Adaptive Ethernet
• Serial Port
1* RS232, 115200bps
PSTN
• ISDN PRI
23B+D(T1),30B+D(E1),NT or TE
ITU-T Q.921, ITU-T Q.931, Q.Sig
• Signal 7/SS7
ITU-T, ANSI，ITU-CHINA
MTP1/MTP2/MTP3, TUP/ISUP
• E1 Frame Type
DF,MF_CRC,MF
• Line Code
HDB3
• Clock Source
Local/Remote Clock Source
Voice Capabilities
• Codecs:G.711a/μ law,G.723.1,
G.729A/B, iLBC, AMR
• Silence Suppression
• Comfort Noise
• Voice Activity Detection
• Echo Cancellation (G.168),with up to
128ms
• Adaptive Dynamic Buffer
• Voice ,Fax Gain Control
• FAX:T.38 and Pass-through
• Support Modem/POS
• DTMF Mode: RFC2833/Signal/Inband
• Clear Channel/Clear Mode
VoIP Protocol
• SIP v2.0 (UDP/TCP),RFC3261
SDP,RTP(RFC2833), RFC3262,
3263,3264,3265,3515,2976,3311
• RTP/RTCP, RFC2198, 1889
• SIP-T,RFC3372, RFC3204, RFC3398
• SIP Trunk Work Mode :Peer/Access
• SIP/IMS Registration :with up to 256 SIP
Accounts
• NAT: Dynamic NAT, Rport
Software Features
•Local/Transparent Ring Back Tone
•OverlappingDialing
•Dialing Rules，with up to 2000
•PSTNgroupbyE1portorE1Timeslot
•IPTrunk Group Configuration
•Voice Codecs Group
•Caller and Called Number White Lists
•Caller and Called Number Black Lists
•Access Rule Lists
•IP Trunk Priority
•RTP and Signaling Encryption （VOS RC4)
Maintenance
•Web GUI Configuration
•Data Backup/Restore
•PSTNCall Statistics
•SIPTrunk Call Statistics
•Firmware Upgrade via TFTP/FTP/Web
•Network Capture
•SNMP v2
•Syslog: Debug, Info, Error, Warning , Notice
•Call History Records via Syslog
•NTPSynchronization
•Centralized Management System
Call Features
•Flexible Route Methods
PSTN-PSTN, PSTN-IP, IP-PSTN
•Intelligent Routing Rules
•Call Routing base on Time
•Call Routing base on Caller/Called Prefixes
•256 Route Rules for each Direction
•Caller and Called Number Manipulation
Environmental
•Redundant Power Supply
•Power Supply: 100-240VAC, 50-60 Hz
•Power Consumption:110W
•Operating Temperature:0 ℃~ 45 ℃
Storage Temperature: -20 ℃~80 ℃
•Humidity:10%-90% Non-Condensing
•Dimensions(W/D/H): 437*320*88mm(2U)
•Unit Weight: 6.5kg
•Compliance: CE, FCC,CCC
