Quick Details
-
Brand Name:
-
QXL
-
Model Number:
-
QXEMF
-
Certification:
-
CCC
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
-
Warranty:
-
1 year
-
Place of Origin:
-
China
-
Brand Name:
-
QXL
-
Model Number:
-
QXEMF
-
Certification:
-
CCC
Product Overview
Introduction

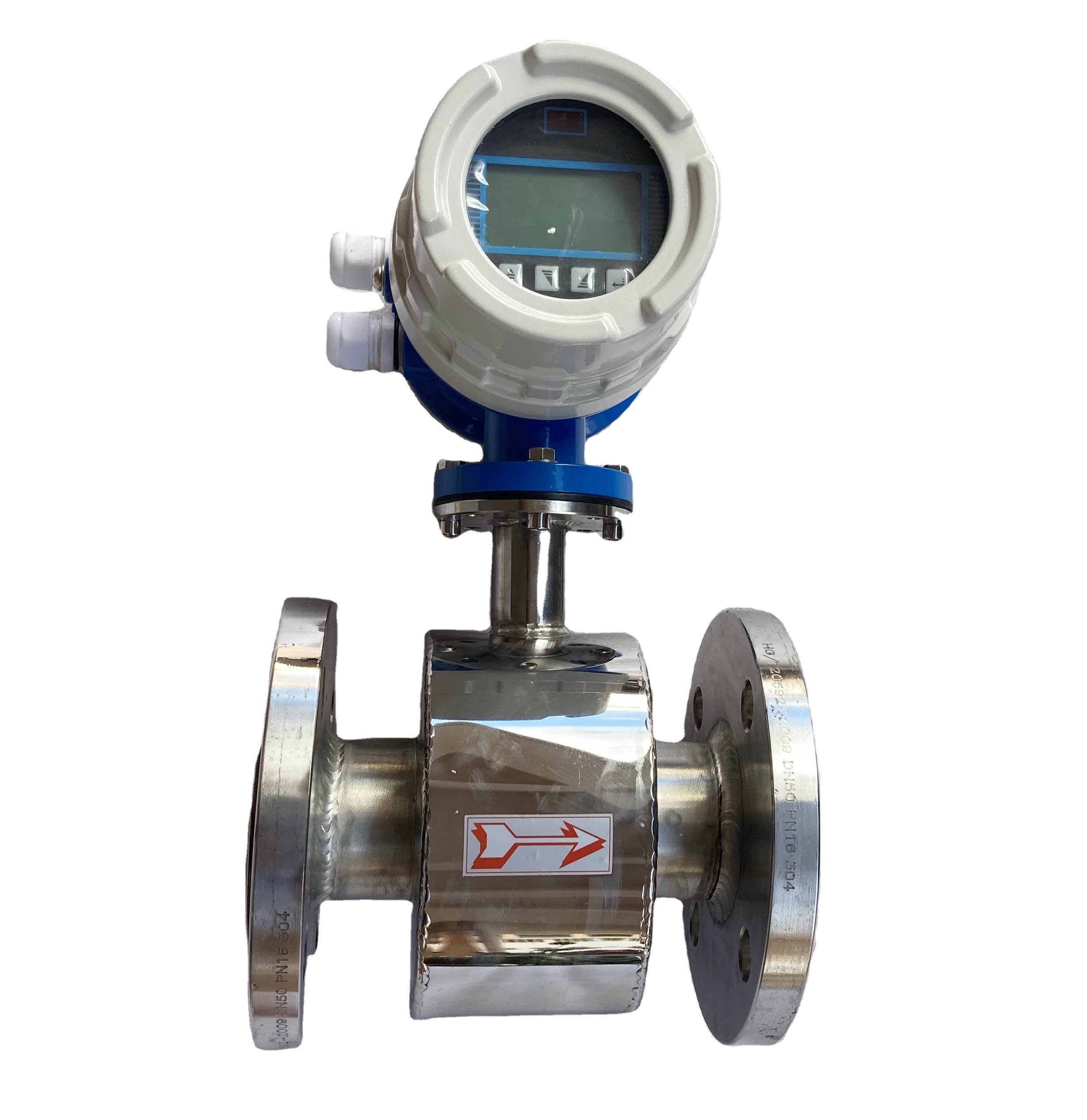

QXFL-DG series electromagnetic flowmeters follow the Faraday law of electromagnetic induction. They can be used to accurately measure the flow rate of liquids which are electrical conducting, caustic, and mixed with liquids and solids. They are widely used throughout industries of petroleum, chemical engineering, pharmacology, papermaking, electric power, environmental protection and so forth. Their antiknock level is ExdII BT4.
SUS 304 Smart Electromagnetic flow meter sewage Pipeline hydraulic diesel magnetic flowmeter liquid water stainless steel
1- Zero pressure losing;
2- High accuracy, Stable performance, high level of anti-vibration and anti-jamming, wide measuring dimensions.
3- Corrosion protection, abrasion resistant;
4-life long time.
- Size: DN10~DN600 (PTFE) ; DN40~DN1200 (NBR)
- Standard pressure: PN1.0MPa~40MPa;
- Accuracy: ±0.5%~±1.0%;
- Supply power: 85 to 250VAC (45 to 63Hz), 16 to 36VDC;
- Signal output: Current Output: 4~20mA;
- Frequency Output: 0~5000Hz with photoelectric isolation;
- Pulse Output: 0.001~1.000m3/cp, 0.001~1.000 Ltr/cp, 0.001~1.000USG/cp,0.001~1.000 UKG/cp;
- Alarm Output: Upper Alarm-ALMH, Lower Alarm-ALML with photoelectric isolation;
- Communications: RS-232 without galvanic isolation, RS-485 with Galvanic isolation;
- Ambient temperature: -10~60;
- Relative humidity: ≤85%RH;
- Atmospheric pressure: 86KPa~106KPa;
- Applicable Fluid: electrically conducting liquid;
- Fluid temperature:-25~ +65 and -25~ +180;
- Electrical conductivity: 5us/cm.
1- Zero pressure losing;
2- High accuracy, Stable performance, high level of anti-vibration and anti-jamming, wide measuring dimensions.
3- Corrosion protection, abrasion resistant;
4-life long time.
Specifications
:
- Size: DN10~DN600 (PTFE) ; DN40~DN1200 (NBR)
- Standard pressure: PN1.0MPa~40MPa;
- Accuracy: ±0.5%~±1.0%;
- Supply power: 85 to 250VAC (45 to 63Hz), 16 to 36VDC;
- Signal output: Current Output: 4~20mA;
- Frequency Output: 0~5000Hz with photoelectric isolation;
- Pulse Output: 0.001~1.000m3/cp, 0.001~1.000 Ltr/cp, 0.001~1.000USG/cp,0.001~1.000 UKG/cp;
- Alarm Output: Upper Alarm-ALMH, Lower Alarm-ALML with photoelectric isolation;
- Communications: RS-232 without galvanic isolation, RS-485 with Galvanic isolation;
- Ambient temperature: -10~60;
- Relative humidity: ≤85%RH;
- Atmospheric pressure: 86KPa~106KPa;
- Applicable Fluid: electrically conducting liquid;
- Fluid temperature:-25~ +65 and -25~ +180;
- Electrical conductivity: 5us/cm.
