Quick Details
-
Place of Origin:
-
Henan, China
-
Model Number:
-
304 / 304L / 316 / 316L Stainless Steel Wire Mesh
-
Brand Name:
-
Xinmingde
-
Mesh Length:
-
30 m rolls or cut to length, minimum 2 m
-
Mesh Type:
-
Rolls and sheets are available
Quick Details
-
Material:
-
STAINLESS STEEL WIRE
-
Type:
-
Weave Wire Mesh
-
Application:
-
Filters
-
Place of Origin:
-
Henan, China
-
Model Number:
-
304 / 304L / 316 / 316L Stainless Steel Wire Mesh
-
Brand Name:
-
Xinmingde
-
Mesh Length:
-
30 m rolls or cut to length, minimum 2 m
-
Mesh Type:
-
Rolls and sheets are available
Product Overview
More materials available:
Copper, Brass, Bronze, Inconel, Monel, Nickel, Titanium, etc
Specification customization:
Wire Diameter, Mesh Count, Weave type

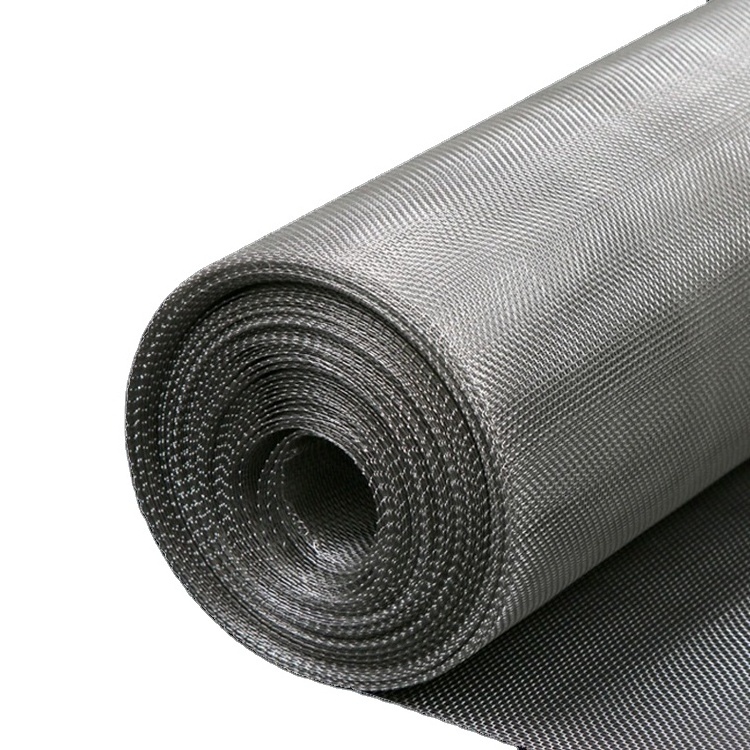

Woven wire mesh is available on the roll or cut to size
Provide fine and strict packaging to ensure that the goods will not be damaged
Woven wire mesh is available on the roll or cut to size
Provide fine and strict packaging to ensure that the goods will not be damaged
|
Product Name
|
Woven Wire Mesh, Wire Cloth
|
|
Wire Diameter Range
|
0.02 - 6.30mm
|
|
|
Plain Weave
Twill Weave Dutch or 'Hollander' Weave Plain Dutch Weave Twill Dutch Weave Reverse Dutch Weave Multiplex Weave |
|
Mesh Width
|
Standard less than 2000 mm
|
|
Mesh Length
|
30m rolls or cut to length, minimum 2m
|
|
Mesh Type
|
Rolls and sheets are available
|
Weave Types
Wire Mesh
can provide many different weaves to meet different application needs. the weave styles mainly depend on the mesh and wire diameter specifications of the woven mesh. are the show of some common styles we weave here
Recommend Products
FEATURES AT A GLANCE
Plain weave
can be woven up to 400 mesh.
Twill weave
can be woven from 30-635mesh.
Common Width :0.914m,1.0m,1.22m,1.5m,Special requirement can be customized.
Characteristics of stainless Steel Wire Mesh :
Acid-resisting,alkali-resisting and anti-corrosion
High strength,good tension toughness and abrasion performance,durable in use.
resistance to high temperature oxidation
Highly polished, no need to do any surface treatment,with convenient and simple maintenance.
Common Width :0.914m,1.0m,1.22m,1.5m,Special requirement can be customized.
Characteristics of stainless Steel Wire Mesh :
Acid-resisting,alkali-resisting and anti-corrosion
High strength,good tension toughness and abrasion performance,durable in use.
resistance to high temperature oxidation
Highly polished, no need to do any surface treatment,with convenient and simple maintenance.
Mesh, Mesh Count, and Micron Size
Mesh Count and Micron Size are some of the important terms in the wire mesh industry. The Mesh count is calculated by the number of the holes in an inch of mesh, so the smaller is the woven holes the bigger is the number of holes. The Micron Size refers to the size of the holes measured in microns. (The term micron is actually a commonly used shorthand for micrometer. )
In order to make it easier for people to understand the number of the holes of the wire mesh, these two specifications are usually used together. This is the key component of specifying the wire mesh. The Mesh Count determines the filtering performance and function of the wire mesh.
PRODUCT SPECIFICATIONS
|
Stainless Steel Wire Mesh
|
|
|
|
|
|
|||||
|
Mesh/inch
|
Wire Diameter
|
Aperture
|
Mesh/inch
|
Wire diameter
|
Aperture
|
|||||
|
|
(mm)
|
(mm)
|
|
(mm)
|
(mm)
|
|||||
|
2mesh
|
1.8
|
10.9
|
60mesh
|
0.15
|
0.273
|
|||||
|
3mesh
|
1.6
|
6.866
|
70mesh
|
0.14
|
0.223
|
|||||
|
4mesh
|
1.2
|
5.15
|
80mesh
|
0.12
|
0.198
|
|||||
|
5mesh
|
0.91
|
4.17
|
90mesh
|
0.11
|
0.172
|
|||||
|
6mesh
|
0.8
|
3.433
|
100mesh
|
0.1
|
0.154
|
|||||
|
8mesh
|
0.6
|
2.575
|
120mesh
|
0.08
|
0.132
|
|||||
|
10mesh
|
0.55
|
1.99
|
140mesh
|
0.07
|
0.111
|
|||||
|
12mesh
|
0.5
|
1.616
|
150mesh
|
0.065
|
0.104
|
|||||
|
14mesh
|
0.45
|
1.362
|
160mesh
|
0.065
|
0.094
|
|||||
|
16mesh
|
0.4
|
1.188
|
180mesh
|
0.053
|
0.088
|
|||||
|
18mesh
|
0.35
|
1.06
|
200mesh
|
0.053
|
0.074
|
|||||
|
20mesh
|
0.3
|
0.97
|
250mesh
|
0.04
|
0.061
|
|||||
|
26mesh
|
0.28
|
0.696
|
300mesh
|
0.035
|
0.049
|
|||||
|
30mesh
|
0.25
|
0.596
|
325mesh
|
0.03
|
0.048
|
|||||
|
40mesh
|
0.21
|
0.425
|
350mesh
|
0.03
|
0.042
|
|||||
|
50mesh
|
0.19
|
0.318
|
400mesh
|
0.025
|
0.0385
|
|||||
|
Width of Stainless Steel Wire Mesh: 0.6m-8m
|
|
|
|
|
|
|||||
Mesh by Application
Perfectly suited for a wide array of architectural and functional purposes, stainless steel wire mesh is used in various industries. The petroleum, chemical environmental protection, mining, aerospace, papermaking, electronic, metallurgical, food and pharmaceutical industries all utilize woven wire mesh.
一 . Photovoltaic panels: home use, commercial use, agricultural use, transportation use, military use
二. Semiconductor circuit boards: used in computers, household appliances, digital electronics, electrical, communications, transportation, medical, aerospace and many other fields.
三. Automotive power batteries (battery materials): mainly concentrated in the fields of automobiles, aerospace, logistics, medical care, industry.
四. Cathode materials: mainly lithium iron phosphate and ternary materials
五. Anode materials: used in consumer electronics, new energy vehicles, energy storage equipment and other fields
六. 3D printing materials: 3D printing technology can be used in the aerospace field for fixtures, part production, and processing of composite materials.
The above are some of the applications of wire mesh we listed. In fact, woven wire mesh has a seemingly infinite range of
applications. Because it has many irreplaceable features and advantages, there can be few industries where wire mesh does not have a part to play.
applications. Because it has many irreplaceable features and advantages, there can be few industries where wire mesh does not have a part to play.
Wire mesh offers many benefits including:
-Widest range filtration, from over 6-inch aperture down to 1-micron nominal.
-Widest range filtration, from over 6-inch aperture down to 1-micron nominal.
-High open area/flow rate.
-Closely controlled, accurate apertures.
-Smooth surface - screening surface has no sharp edges, burrs or acute angles.
-Very high-temperature tolerance (variable according to metal selected).
-Usable under high pressure.
-Flexible - ideal for forming rigid concave / convex shapes.
-Control of chemical/acid/ corrosion resistance using different metals.
-Special aperture requirements can be met without high tooling costs.
