- Product Details
- {{item.text}}
Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
260 mm
-
Travel (Y Axis)(mm):
-
500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Camelcnc
-
Voltage:
-
220V,AC50/60hz,single phase
-
Weight (KG):
-
250
-
Name:
-
mini cnc wood lathe
-
Model:
-
CA-26
-
Working Voltage:
-
220V,AC50/60hz,single phase
-
Control system:
-
Professional 4 axis beads making
-
Weight:
-
250kg
-
max process length:
-
500mm
-
orbit:
-
Square guide orbit
-
After-sales Service Provided:
-
Online support
Quick Details
-
Working Table Size(mm):
-
1100*800*700mm
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
260 mm
-
Travel (Y Axis)(mm):
-
500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Camelcnc
-
Voltage:
-
220V,AC50/60hz,single phase
-
Weight (KG):
-
250
-
Name:
-
mini cnc wood lathe
-
Model:
-
CA-26
-
Working Voltage:
-
220V,AC50/60hz,single phase
-
Control system:
-
Professional 4 axis beads making
-
Weight:
-
250kg
-
max process length:
-
500mm
-
orbit:
-
Square guide orbit
-
After-sales Service Provided:
-
Online support
Product Description

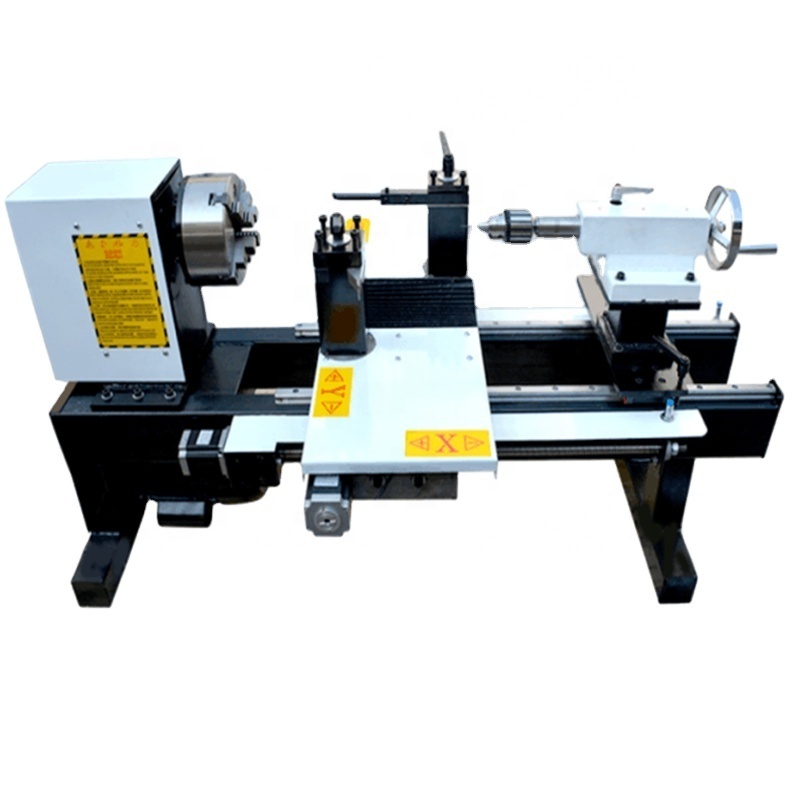

CAMEL CNC CA-26 wood make mini cnc wood lathe
Application
Bead, barrel, all kinds of Buddha head pagoda, gourd pendant, hoist pieces, rhinoceros-horn, cup, bowl, whip, cigarette holder,eggs, ashtray, scroll painting head, wooden handle etc
Operate way:
1.Input required drawing in the software
2.Set Bead diameter, select the shape, size.
3.No programming, easy to use.
4.You can also design your own style, drawing of contour line, also can support BMP, JPG etc format
2.Set Bead diameter, select the shape, size.
3.No programming, easy to use.
4.You can also design your own style, drawing of contour line, also can support BMP, JPG etc format
Cutter lifespan:
Adopt super hard alloy CNC cutter, no wear for turning and milling red wood.
Such as processing 3000 pieces Lobular red sandal wood whose with diameter 2cm, no need changing cutter.
Such as processing 3000 pieces Lobular red sandal wood whose with diameter 2cm, no need changing cutter.
Processing speed:
For example:
1.2 size beads shall prevail, Lobular Rosewood automatic Hole, 38 seconds per piece , 30 seconds without holes.
2.Phoebe play hole turning 25 seconds per piece,19 seconds without punching;
3.5cm diameter handball, 2 minutes one piece.
4.5cm diameter and 11cm length hand-grip gourd needs 5 minutes
1.2 size beads shall prevail, Lobular Rosewood automatic Hole, 38 seconds per piece , 30 seconds without holes.
2.Phoebe play hole turning 25 seconds per piece,19 seconds without punching;
3.5cm diameter handball, 2 minutes one piece.
4.5cm diameter and 11cm length hand-grip gourd needs 5 minutes
Features
1.Computer numerical controlled
2. 600 kinds drawing gallery special for round beads
3. Professional wood beads machine control system, easy to operate
4. Super quality wood lathe cutter special for any kind of wood, with long lifespan
5. Imported square guide rail and high precision ball screw transmission
6. high precision and stable working performance
2. 600 kinds drawing gallery special for round beads
3. Professional wood beads machine control system, easy to operate
4. Super quality wood lathe cutter special for any kind of wood, with long lifespan
5. Imported square guide rail and high precision ball screw transmission
6. high precision and stable working performance
Specification
|
Description
|
Parameter
|
|
max process length
|
500mm
|
|
process beads diameter
|
3-260mm
|
|
machine size
|
1100*800*700mm
|
|
transmission way
|
Ball screw with imported bearings
|
|
orbit
|
Square guide orbit
|
|
Interface
|
internet wire
|
|
system
|
Professional 4 axis beads making
|
|
Surroundings for software
|
windows98/2000/XP/WIN7/WIN8
|
|
Power
|
1.5KW
|
|
Working voltage
|
AC220V 50/60Hz
|
|
Drawing software
|
AUTOCAD
|
|
Drawing format
|
*.dxf
|
|
Driving system
|
Stepper motor and driver
|
|
cutter
|
Super hard alloy wood lathe cutter
|
Details Images
Some designs from Drawing Gallery for reference:
Sample
