- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
5years
-
Brand Name:
-
Sungold
-
Model Number:
-
HP-D-4*100W
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
900*590*90mm
-
Product name:
-
400W folding solar panel
-
Solar cell:
-
Mono
-
Weight:
-
12.6kg
-
Junction Box:
-
IP67
-
Maximum System Voltage:
-
200VDC
-
Operating Temperature(℃):
-
-10℃~60℃
-
Cells Efficiency(%):
-
22.6%
-
Certificate:
-
CE ROHS
Quick Details
-
Cell size:
-
210mmx210mm
-
Type:
-
PERC, A grade solar cells
-
Panel Efficiency:
-
22.6%
-
Warranty:
-
5years
-
Brand Name:
-
Sungold
-
Model Number:
-
HP-D-4*100W
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
900*590*90mm
-
Product name:
-
400W folding solar panel
-
Solar cell:
-
Mono
-
Weight:
-
12.6kg
-
Junction Box:
-
IP67
-
Maximum System Voltage:
-
200VDC
-
Operating Temperature(℃):
-
-10℃~60℃
-
Cells Efficiency(%):
-
22.6%
-
Certificate:
-
CE ROHS

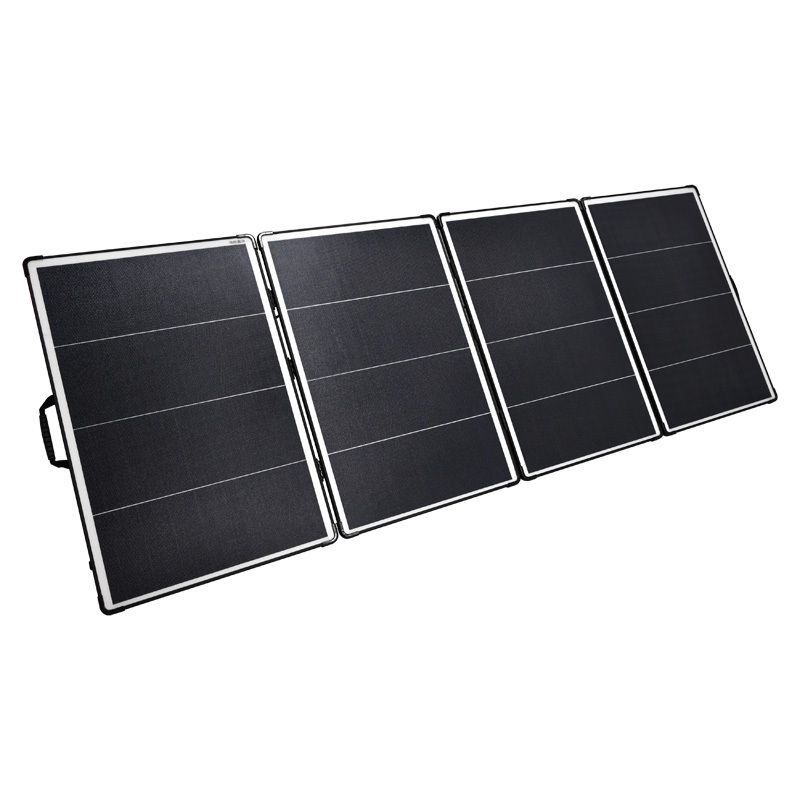

IP67 ETFE portable foldable 200W 300W 400W folding solar panel for powerstation or microinverter solar
Product Parameters
|
Specifications -LVP series
|
|
|
|
|
|
|||||
|
Component Model
|
HP 2*100W
|
HP 3*100W
|
HP 4*100W
|
|
|
|||||
|
Maximum power
|
200W
|
300W
|
400W
|
|
|
|||||
|
Open cicuit voltage(Voc)
|
21.5
|
21.5
|
43.1
|
|
|
|||||
|
Curent(lmp)
|
10.99
|
16.49
|
10.96
|
|
|
|||||
|
Operating voltage(Vmp)
|
18.2
|
18.2
|
36.5
|
|
|
|||||
|
Short-circuit current(Isc)
|
11.65
|
17.47
|
11.62
|
|
|
|||||
|
Cells Efficiency(%)
|
22.6%
|
22.6%
|
22.6%
|
|
|
|||||
|
Operating Temperature(℃):
|
（-10℃~60℃）
|
|
|
|
|
|||||
|
Power temperature coefficient
|
—0.43%/℃
|
|
|
|
|
|||||
|
Voltage temperature coefficient
|
—0.34%/℃
|
|
|
|
|
|||||
|
Current temperature coefficient
|
—0.55%/℃
|
|
|
|
|
|||||
|
Output power tolerance
|
±3%
|
|
|
|
|
|||||
|
Cell effciency
|
22.6%
|
|
|
|
|
|||||
|
Life
|
10 years
|
|
|
|
|
|||||
|
Warranty
|
5 years
|
|
|
|
|
|||||
|
Maximnum system voltagea
|
60V DC
|
|
|
|
|
|||||
|
Junction box
|
IP65 or IP67 rated
|
|
|
|
|
|||||
|
Folding size
|
900*590*50mm
|
900*590*70mm
|
900*590*90mm
|
|
|
|||||
|
Weight
|
5.88kg
|
9.04kg
|
12.6kg
|
|
|
|||||
|
Measured at STC Condition: irradiance: 1000W /m㎡-AM1.5 Spectrum-Temperature: 25℃
|
|
|
|
|
|
|||||
|
Electrical parameters may vary by ±3%
|
|
|
|
|
|
|||||
Product Details
Client Feedback
About Us
Shenzhen Sungold Solar Co., LItd
Sungold Advantages:
-The professional producing experience of solar panel for 13 years
Accumulating the experience for more than a decade,Sungold has become a company with mature technology and management system
-Outstanding quality
With the certificates of ISO, RoHS, CE, etc. We professionally provide high quality products with automated production line.
-Professional techniques and service
Every Sungold product is crafted according to the needs of customer, also, the service we do is all for customer.
-The professional producing experience of solar panel for 13 years
Accumulating the experience for more than a decade,Sungold has become a company with mature technology and management system
-Outstanding quality
With the certificates of ISO, RoHS, CE, etc. We professionally provide high quality products with automated production line.
-Professional techniques and service
Every Sungold product is crafted according to the needs of customer, also, the service we do is all for customer.
Exhibition & Certificate
Logistics Transportation
FAQ
1)Q:The price is too expensive,why?
We choose the best material to make. All SunPower A grade cells are imported from the USA, and we insist on the development of quality.
2)Q:What is the payment term?
100% T/T in advance 30% T/T in advance balance before shipment when your order over 10000usd
3)Q:Why is the delivery time too long?
It depends on your quality of order and product type: If you only need a sample, we can send you soon.
4)Q:What is mono and poly panels?
The panel adopts mono-crystalline and poly-crystalline cells.
5)Q:What is the different between mono and poly?
The cells conversion efficiency is different. The mono cell is higher than poly one. Mono is 20.6%, and poly is 18.3%, so mono panel is more expensive than poly panel.
6)Q: What is the warranty of the panel?
Mono panel and poly panel has 10 years warranty. Flexible panel has 1 year warranty and 5 year service time. Customers told a panel was bought in 2012 is still working.
7)Q: What is the package of the flexible panel?
1 pcs is put in a bubble bag and one carton and 10pcs are put in bigger carton, then wooden pallet.
8)Q: How many workers in Sungold?
Almost 300.
9)Q: Do you have any certificates on the panels?
CE, ROHS and ISO.
10)Q: Can you do OEM for my panels?
Yes, we support OEM and ODM.
