Quick Details
-
Power:
-
50.25kw
-
Dimension(L*W*H):
-
11693*13060*17245mm
-
Weight:
-
12000 kg
-
Product name:
-
Concrete Batching Plant
-
Type:
-
HZS25
-
Work cycle time:
-
72s
-
Concrete Mixer Model:
-
JS500
-
Batching Machine Model:
-
PLD800
-
control mode:
-
automatic
-
Application:
-
Building Site
-
Certification:
-
ISO9001
-
After Warranty Service:
-
Online support
-
After-sales Service Provided:
-
Online support
Quick Details
-
Machine Type:
-
Production line
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Huaning
-
Power:
-
50.25kw
-
Dimension(L*W*H):
-
11693*13060*17245mm
-
Weight:
-
12000 kg
-
Product name:
-
Concrete Batching Plant
-
Type:
-
HZS25
-
Work cycle time:
-
72s
-
Concrete Mixer Model:
-
JS500
-
Batching Machine Model:
-
PLD800
-
control mode:
-
automatic
-
Application:
-
Building Site
-
Certification:
-
ISO9001
-
After Warranty Service:
-
Online support
-
After-sales Service Provided:
-
Online support

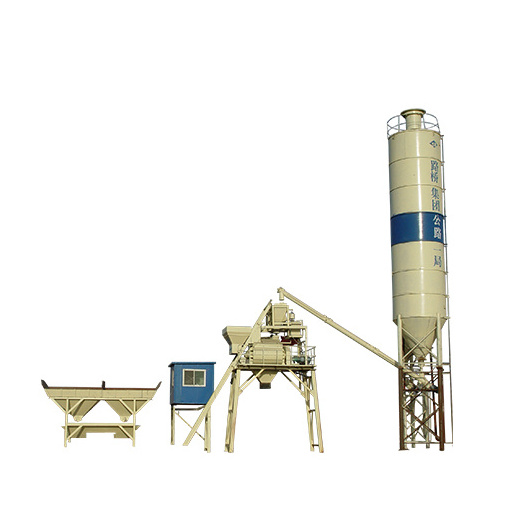

Concrete Batching Plant on Sale can be used for industry, construction, road, railway, bridge, water conservation, ports, and so on. Working as the concrete mixing equipment, it can meet the raquirements for different forms and specifications.
HZS series Concrete Batching Plant on Sale is composed of feeding system,mixing system,electrical syatem and auxiliary equipents(such as air compressor,water pump etc.),fea-tured by high-precision computer control.And aslo there are manual system,automatic head-drop compensation and aggregate moisture compensation.
| Model | HZS25 | |
| The whole station | Max.Productivity | 25m³/h |
| Discharge Height | 1.5-3.8m | |
| Working Cycle | 72s | |
| Dimension (LxWXH) | 11693x13060x17245mm | |
| Power | 50.25kw | |
| Concrete Mixer | JS500 | |
| Batching Machine | PLD800 | |
| Pneumatic System | Air Compressor Model | 1.0-7 |
| Nominal Displacement | 1.67m³/h | |
| Rated Discharge Pressure | 0.8mpa | |
| Motor Power | 5.5kw | |
| Measurment Accuracy of Weighing system | Aggregate | ±2% |
| Cement | ±1% | |
| Water | ±1% | |
| Admixture | ±1% | |
