Quick Details
-
Brand Name:
-
WOSOM
-
Model Number:
-
TS2
-
Mechanical Life:
-
500,000 times
-
Certificate:
-
CE
-
Product name:
-

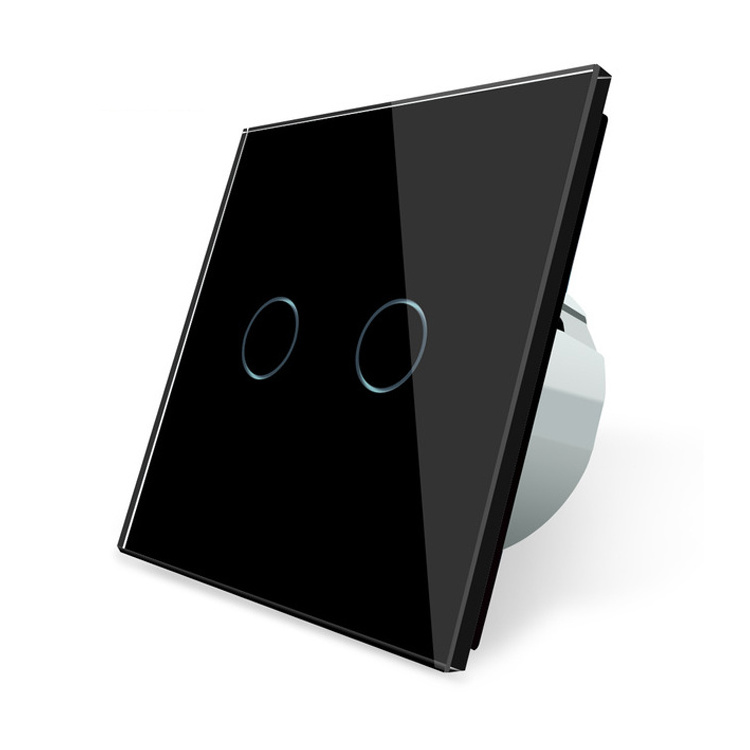

2 Gang 1 Way Wall touch light switch
-
Color:
-
White Black Gold
-
Function:
-
Touch Panel Light Wall Switch
-
Application:
-
Smart Home System
-
Type:
-
Touch Wall Light Switch
-
Feature:
-
Easy Installation
-
Panel Material:
-
Crystal Tempered Glass Panel
-
Max power:
-
300W
-
Material:
-
Flame Retardant PC
Quick Details
-
Max. Current:
-
10A
-
Max. Voltage:
-
220V-250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WOSOM
-
Model Number:
-
TS2
-
Mechanical Life:
-
500,000 times
-
Certificate:
-
CE
-
Product name:
-
2 Gang 1 Way Wall touch light switch
-
Color:
-
White Black Gold
-
Function:
-
Touch Panel Light Wall Switch
-
Application:
-
Smart Home System
-
Type:
-
Touch Wall Light Switch
-
Feature:
-
Easy Installation
-
Panel Material:
-
Crystal Tempered Glass Panel
-
Max power:
-
300W
-
Material:
-
Flame Retardant PC
Product Description
|
Product name
|
2 Gang 1 Way Wall Touch Light Switch
|
|
Model
|
TS2
|
|
Rated current
|
10A
|
|
Rated voltage
|
220-250V AC
|
|
Rated frequency
|
50/60HZ
|
|
Color
|
white, black, gold, gray
|
|
Size
|
86mm*86mm、86mm*157mm、86mm*228mm
|
|
Mounting hole distance
|
60mm
|
|
Product Certification
|
CE
|
|
Packing accessories include
|
1 switch, 2 mounting screws, 1 safety capacitor, 1 user's manual
|
|
Warranty
|
2 years
|
|
Rated load
|
3-300W/way (SCR)
|
|
Wiring method
|
single live wire
|
|
Processing chip
|
imported microcomputer intelligent MCU chip
|
|
Product material
|
high-grade tempered glass, imported ABS fire-retardant and flame-retardant injection material
|
|
Service life
|
500,000 times
|
|
Standby power consumption
|
<0.04mA
|
|
Working environment temperature
|
-20~+70C°
|
|
Working environment humidity
|
relative humidity <95%
|
|
Production process
|
injection molding-cold punching-riveting-assembly-debugging-inspection-packaging
|
|
Features:
|
|
1.Tempered glass panel, unique design, high-grade appearance; at the same time prevent the occurrence of safety hazards such as
electric leakage and electric shock. |
|
2.Panel design is diversified, you can customize different colors and patterns according to customer requirements.
|
|
3.The outer casing adopts imported ABS fireproof injection molding material to effectively prevent the switch from accidentally
catching fire and causing fire. |
|
4.With LED light indication, display the position of the switch in the dark, highlighting the honor.
|
|
5.Electronic start, changed the traditional mechanical switch sparking problem.
|
|
6.Humanized design, the power switch will keep off automatically after power failure.
|
|
7. Single fire line control, easy to install, no need to re-wire, directly replace the original switch.
|
|
8.The new imported IC, the performance is superior, the touch is more sensitive.
|
|
9. For families, offices, hotels, hospitals, factories and other places.
|
|
10.Can control such as incandescent lamps, energy-saving lamps, lamps, LED lights and other types of lamps on the market.
|
