Quick Details
-
Brand Name:
-
SIMITIE
-
Model Number:
-
SCYT-I208G
-
Place of Origin:
-
Guangdong, China
-
Products name:
-
Industrial Poe Switch
-
Forwarding Mode:
-
Store and Forward
-
PoE Standard:
-
IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab
-
Distancce:
-
100M
-
Installation:
-
DIN-Rail or wall mounting
-
Dimension:
-
163*118*58mm
-
Weight:
-
850g(About)
-
Shell:
-
Aluminum Alloy Housing
-
Certification:
-
CCC,FCC,CE,RoHS
-
Warranty:
-
5 Years
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full & Half-Duplex; MDI/MDI-X auto-adaptation
-
Switch Capacity:
-
28G
-
Brand Name:
-
SIMITIE
-
Model Number:
-
SCYT-I208G
-
Place of Origin:
-
Guangdong, China
-
Products name:
-
Industrial Poe Switch
-
Forwarding Mode:
-
Store and Forward
-
PoE Standard:
-
IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab
-
Distancce:
-
100M
-
Installation:
-
DIN-Rail or wall mounting
-
Dimension:
-
163*118*58mm
-
Weight:
-
850g(About)
-
Shell:
-
Aluminum Alloy Housing
-
Certification:
-
CCC,FCC,CE,RoHS
-
Warranty:
-
5 Years
Products Description

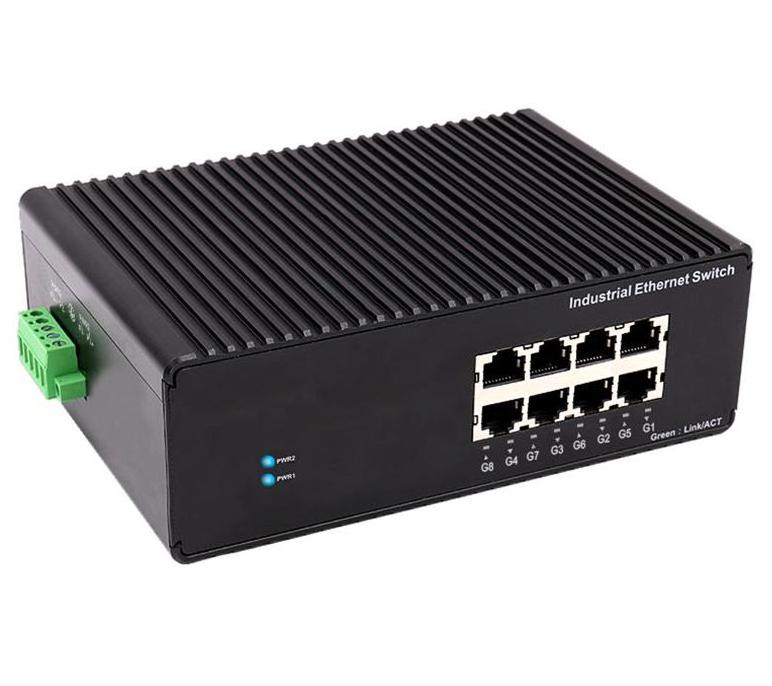

Industrial 30w Poe Injector Poe Function Poe Extender Ieee802 Ethernet Switch For Barrier Gate Ip Camera 8 Port Switches
ODM/OEM WELCOME!
Main Features
- Supports Eight 10/100/1000BASE-T Ethernet ports.
- DC10-58V redundancy power, reverse polarity protection.
- Passed the EMC industry class 4 standard.
- Adopt American Marvell industrial-grade low-power switching chip, more stable performance
- Using industrial grade materials, IP40 rated protection, low power consumption, -40-85°C operating temperature.
- Corrugated high-strength aluminum alloy shell, DIN-rail installation
- Passed testing and certification by the Ministry of Industry and Information Technology, CCC, FCC, CE, RoHS, etc.
- Support PoE extension, IEEE802.3af: maximum power 15.4W, IEEE802.3at: maximum power 30W.
Specification
|
Standards
|
IEEE802.3，IEEE802.3u，IEEE802.3z，IEEE802.3ab
|
|
|
|
|||
|
Switching Characteristics
|
Forwarding Rate: 11.9Mpps
|
|
|
|
|||
|
|
Transfer Mode: store-and-forward
|
|
|
|
|||
|
|
Packet Buffe: 2M
|
|
|
|
|||
|
|
Switching Capacity: 28Gbps
|
|
|
|
|||
|
|
Delay Time: ＜10μs
|
|
|
|
|||
|
MAC address table
|
16K
|
|
|
|
|||
|
Interface
|
Electrical Port: 10/100/1000 Base-T(X), RJ45 auto speed control
|
|
|
|
|||
|
|
Half/full duplex and MDI/MDI-X auto-adaptation
|
|
|
|
|||
|
Transmission Distance
|
Twisted Pair: 100M
Fiber Optic：550M(Multi-mode)
20km/40km/60km/80km/100km/120km (single mode optional)
|
|
|
|
|||
|
PoE Protocol
|
IEEE802.3af: max15.4W,IEEE802.3at: max 30w
|
|
|
|
|||
|
Indicator
|
Power Indicator: PWR1 PWR2（Blue）POE （Yellow）
|
|
|
|
|||
|
|
Port Indicator: Link/ACT
|
|
|
|
|||
|
Power
|
Input Voltage: DC10-58V Dual Power Supply Redundancy
|
|
|
|
|||
|
|
Access terminal: 5-core 5.08mm spacing plug-in terminal
|
|
|
|
|||
|
|
Power: ＜7W
|
|
|
|
|||
|
|
POE single port maximum power: 30W
|
|
|
|
|||
|
|
Overload Protection: Support
|
|
|
|
|||
|
|
Reverse Connection Protection: Support
|
|
|
|
|||
|
|
Redundancy Protection: Support
|
|
|
|
|||
|
Physical Characteristics
|
Shell: aluminum alloy housing
|
|
|
|
|||
|
|
Heat dissipation：Fanless design, natural heat dissipation
|
|
|
|
|||
|
|
Protection: IP40
|
|
|
|
|||
|
|
Dimensions：163mm * 118mm * 58mm( L*W*H )
|
|
|
|
|||
|
|
Weight：850g(About)
|
|
|
|
|||
|
|
Installation：DIN-Rail mounting, wall mounting
|
|
|
|
|||
|
Environmental Conditions
|
Operating Temperature: -40~85℃
|
|
|
|
|||
|
|
Storage Temperature: -40~85℃
|
|
|
|
|||
|
|
Ambient Relative Humidity: 5%~95% (non-condensing)
|
|
|
|
|||
|
Warranty
|
MTBF:450000h
|
|
|
|
|||
|
|
Warranty Period：5 years
|
|
|
|
|||
|
Certification
|
CCC、FCC、CE、RoHS
|
|
|
|
|||
|
Industry Standard
|
EMI：FCC CFR47 Part 15,EN55022/CISPR22,Class A
|
|
|
|
|||
|
|
EMS
|
IEC 61000-4-2(ESD) ±8kV(contact),±15kV(air)
|
|
|
|||
|
|
|
IEC 61000-4-3(RS) 10V/m(80MHz-2GHz)
|
|
|
|||
|
|
|
IEC 61000-4-4(EFT) Power Port:±4kV；Data Port:±2kV
|
|
|
|||
|
|
|
IEC 61000-4-5(Surge) Power Port:±2kV/DM,±4kV/CM; Data Port:±2kV
|
|
|
|||
|
|
|
IEC 61000-4-6(CS) 3V(10kHz-150kHz)；10V(150kHz-80MHz)
|
|
|
|||
|
|
Physical
|
IEC 60068-2-6(Vibration)
|
|
|
|||
|
|
|
IEC 60068-2-27(Shock)
|
|
|
|||
|
|
|
IEC 60068-2-32(Free Fall)
|
|
|
|||
Certifications
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
About Us
SIMITIE CORPORATION
SIMITIE CORPORATION
is an innovative enterprise specializing in
Industrial Switches,
Video Conferencing All-in-one Machines and PTZ Cameras. Here is our product introduction and advantages:
Video Conferencing All-in-one Machine:
Our video conferencing all-in-one machine uses high-definition cameras and high-quality speakers to achieve high-definition video and clear sound in video conferencing. At the same time, our product supports multiple platforms and software, such as Zoom, Teams, Skype, etc., making it easy to conduct remote video conferences with others.
PTZ Camera:
Our PTZ camera has excellent image quality and a wide viewing angle, capturing every corner of the meeting room. At the same time, our camera also has autofocus, light compensation and other functions, providing clear images under different lighting conditions.
Advantages:
Our company has rich experience and professional knowledge in video conferencing and camera technology. Our products not only have a beautiful appearance and excellent performance, but also a reasonable price, making them your best choice for video conferencing and filming. In addition, we provide comprehensive after-sales service to provide you with all-round support for your use.
One-stop Service
Complete R&D team, SMT workshop, assembly factory, full control from product concept to finished product to delivery.
IS09001 Factory
ISO9001 international quality management system, standardized production process and product quality inspection.
R&D and innovation
Complete R&D system with over 20 years of experience in the industry, releasing over 10 new products every year.
Why Choose Us
1. Professional R&D center: SIMITIE has 10+ years of experience designing and manufacturing video cameras. With professional R&D staff representing 40% of our workforce, we have used this wealth of technical and design expertise to obtain over 39 patents for a comprehensive range of technologies. SIMITIE has become a successful creator of smart solutions by satisfying clients through technological innovation and excellent quality
2. High quality: Using high quality material and establishing a strict quality control system, assigning specific persons in charge of each part of production, from raw material purchase to assembly.
3. Small order accepted: Low MOQ accepted. 1pc is available.
2. High quality: Using high quality material and establishing a strict quality control system, assigning specific persons in charge of each part of production, from raw material purchase to assembly.
3. Small order accepted: Low MOQ accepted. 1pc is available.
FAQ
1. What's your payment term and payment method?
FOB / EXW. 30% TT in advance and balance before shipment. We Accept T/T, Cash asthe payment method.
2. What's your warranty period?
The warranty period is 3 years.
3. Could I put my own Logo on products?
Yes, we support OEM(Original Equipment Manufacturer), ODM(Original Design Manufacturer) and JDM(Joint design and manufacturing). Please share your idea and we will satisfy your need. First-class quality and Best Price for you.
Contact us can get more discount.
4.How do you guarantee the quality?
After finishing the machine aging test, Our QC Team will inspect all goods before packing, andensure that all machines leaving the factory are qualified products.
5. Do you have any Certification?
Sure, we haveCE/FCC/RoHS/UKCA/WEEE Certifications.
6. Where is your company?
We located in Shenzhen,Guangdong Province.
7. What is your MOQ?
One Set
8. What is delivery time?
Sample orders can be delivered successfully within 2-7 days. Bulk orders are shipped from our factory by sea, by air or by express. (Depends on order quantity and requirements.), usually within 30 days to complete the preparation and delivery. Contact us today.
