Super thin Resin Metal Bond Diamond Bronze sintered cutting disc CBN grinding wheel Glass cutting disc

Super thin Resin Metal Bond Diamond Bronze sintered cutting disc CBN grinding wheel Glass cutting disc

FOB Reference Price: Get Latest Price

≥10 Pieces

US $50

≥30 Pieces

US $30

≥100 Pieces

US $20

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: RZ

Model Number:: 1A1

Product name:: Diamond cutting dics

Grit:: #60-#220

Shape:: 1A1

Bond:: Resion metal Bond

MOQ:: 5PCS

Body Material:: Alumium

Packed:: Carton

Advantage:: High cutting accuracy

Abarasive material:: diamond

Applicable machine:: Grinder machine

Quick Details

Type:: Abrasive Disc

Warranty:: 1

Place of Origin:: Henan, China

Brand Name:: RZ

Model Number:: 1A1

Product name:: Diamond cutting dics

Grit:: #60-#220

Shape:: 1A1

Bond:: Resion metal Bond

MOQ:: 5PCS

Body Material:: Alumium

Packed:: Carton

Advantage:: High cutting accuracy

Abarasive material:: diamond

Applicable machine:: Grinder machine

Products Description

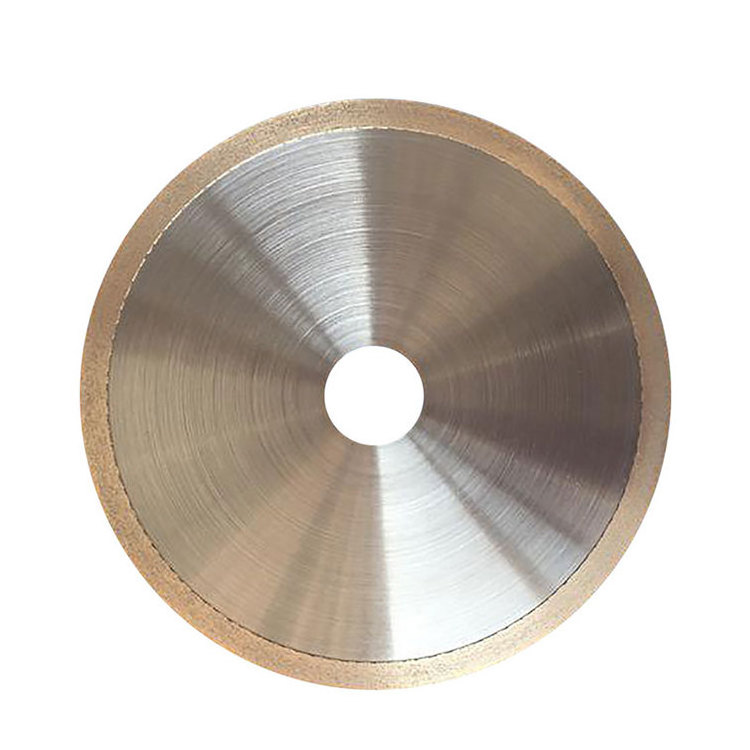

Super thin Resin Metal Bond Diamond Bronze sintered cutting disc CBN grinding wheel Glass cutting disc

Our comapny developed Super thin 1A1R Diamond and CBN Wheels, which can be used for Cut-off, Cutting, Grooving, Slotting, Dicing and etc. Resin Bond and metal bond are available for different applications. Diameter can be 50mm to 400mm. Thickness is from 0.5mm to 2mm. Grits can be, D151, D181, D126, D107, D91, D76, D64, D46 and others. Cutting material can be: tungsten carbide, ceramic, glass, stone, Gem and gemstones, steel and many other materials.

Specification	D (mm)	T (mm)	E(mm)	H (mm)	X (mm)	Grit
1A1R 100x1.0x31.75x10mm	100	1.0	0.8	31.75	10	D126 or any other
1A1R 125x1.0x31.75x10mm	125	1.0	0.8	31.75	10	D126 or any other
1A1R 150x1.0x31.75x10mm	150	1.0	0.8	31.75	10	D126 or any other
1A1R 150x0.8x31.75x10mm	150	0.8	0.6	31.75	10	D126 or any other
1A1R 150x0.5x31.75x10mm	200	1.0	0.8	31.75	10	D126 or any other
1A1R 200x1.0x31.75x10mm	200	1.0	0.8	31.75	10	D126 or any other
1A1R 300x1.0x31.75x10mm	300	1.5	1.3	31.75	10	D126 or any other
1A1R 400x1.0x31.75x10mm	400	2.0	1.8	31.75	10	D126 or any other

Product Features.

1) Fast Cutting, improve cutting effeciency
2) Free of chipping, Excellent cutting surfaces and edges
3) High Precise Cutting and grooving, High accurancy.
4) Smooth cutting, no clipping of the blades
5) Much longer life than tradtional abrasive cutting wheels.

6 ) Customized design is available

Application

Notice

1. Before use, make sure that the grinding wheel is fixed in place and will not shake

2 . Use the grinding wheel at the required speed

Resin bond 1a1r diamond grinding wheels are compound of steel plate and superabrasive work layer. The steel plate has high
strength and high rigidity. ultra-thin cut off wheels are generally used for deep cutting and grooving.

Resin bond ultra-thin cut off wheels mainly used for slotting and cutting of ceramics, crystal, quartz, gems, carbide, magnetic
materials, electrical light wave glass tube and optical glass;

Resin bond CBN cutting wheels mainly used for slotting and cutting of tool steel, mould steel, bearing steel, heat resistance steel,stainless steel and cast iron.

Steel Body Diamond Wheel

Plastic Body Diamond Wheel

Soft Resin Diamond Wheel

Resin Faceting Wheel Discs

Diamond Faceting Wheel Discs

Metal Bond Diamond Saw Blade

Transportion

Packaging
Size	170mm (L) * 170mm (W) * 40mm (D)
Weight	2.0KG, 2.5KG
Packaging Details	The normal packages are below: Box Size: 17017040mm(For 150mm wheel) 240x240x50mm (For 200mm wheel) 350x350x70mm (For 250mm and 300mm wheel)

Packaging
Size	370mm (L) * 370mm (W) * 180mm (D)
Weight	35KG
Packaging Details	The outter package is Paper Carton. 370x370x180mm(For 150mm wheel) 500x300x160mm (For 200mm wheel) 380x380x220mm (For 250mm and 300mm wheel). Belt pacakged and Plastic film wrapped.
