Quick Details
-
Place of Origin:
-
Hebei, China
-
Material of frame:
-
360mm H shape steel welding
-
Thickness of middle plate:
-
25mm
-
Step of forming roller:
-
12steps
-
Diameter of shat:
-
95mm
-
Chain:
-
50.8 mm
-
Material of roller:
-
GCr15
-
Line speed:
-
About 9-12 m/min
-
Reducer:
-
8# cycloid reducer (high grade)
-
Power of main motor:
-
11KW
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Colored Steel
-
Production Capacity:
-
About 9-12 m/min
-
Place of Origin:
-
Hebei, China
-
Material of frame:
-
360mm H shape steel welding
-
Thickness of middle plate:
-
25mm
-
Step of forming roller:
-
12steps
-
Diameter of shat:
-
95mm
-
Chain:
-
50.8 mm
-
Material of roller:
-
GCr15
-
Line speed:
-
About 9-12 m/min
-
Reducer:
-
8# cycloid reducer (high grade)
-
Power of main motor:
-
11KW

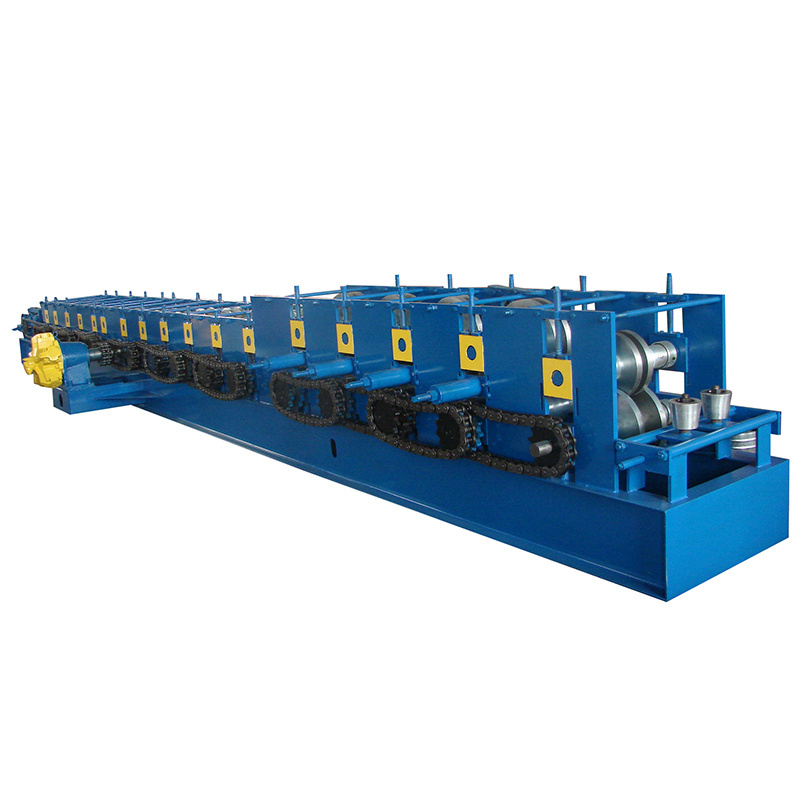

high speed C Channel Steel Roll Forming Machine/c z purlin roll forming machine
C&Z Purlin P rofile :
| C TYPE | Range for size |
| W | 80-300±1mm |
| H | 30-80±1mm |
| E | 10-22±1mm |
| Z TYPE | Range for size |
| W | 140-300±1mm |
| H | 50-80±1mm |
| E | 10-20±1mm |
Thickness of the material:1.5-3.0 mm
Feeding width:160-500mm
Material:Q235Mpa galvanized steel
Length tolerance : ±3mm
C/Z steel production process sketch:
Hydraulic Decoiler——Straightening——Roll forming M/C——PLC control System——
Hydraulic Pressing&Cutting——Production Stand
We design each machine according to customer's requirement. Contact for professional service ! Contact Us
