Quick Details
-
Marketing Type:
-
Hot product 2020
-
Application:
-
Workshop, Manufacture Plant, Clean room, Marine
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
YUANDA
-
Weight (KG):
-
500 kg
-
Product name:
-
Mobile A-frame Aluminum Gantry Crane Price
-
Material:
-
Aluminum alloy material
-
Crane feature:
-
rustproof, corrosion resistant
-
Control Method:
-
Remote Control
-
Lifting mechanism:
-
Electric Chain Hoist
-
Advantage:
-
Foldable, adjustable, disassembe, dismantle
-
Structure:
-
A frame, A-frame, aframe
-
Wheels:
-
Rubber tyre caster wheels
-
Keywords:
-
aluminum marine crane
Quick Details
-
Rated Loading Capacity:
-
150 Kg, 3 Ton, 250 kg, 2.5 TON, 125 KG, 6 TON, 350 KG, 100 kg, 200 Kg, 8 Ton, 7 ton, 5 ton, 300 KG, 4 TON, 1.5 Ton, 0.5 ton, 2 ton, 1 Ton, 500 kg, 1000 kg, 1500 kg, 2000 kg, 2500 kg, 3000 kg, 3500 kg, 4000 kg, 5000 kg, 6000 kg, 100kg, 150kg, 125kg, 200kg, 250kg, 300kg, 350kg, 500kg, 1000kg, 1500kg, 2000kg, 2500kg, 3000kg, 5000kg, 4000kg, 6000kg, 0.5t, 1t, 1.5t, 2t, 2.5t, 3t, 4t, 5t, 6t, 0.5ton, 1ton, 2ton, 3ton, 5ton, 6ton, 4ton
-
Max. Lifting Height:
-
2.5m, 3M, 7.5m, 5M, 10M, 4.5m, 4M, 2M, 15M, 6m, 20M, Other
-
Span:
-
2 3 4 5 6 7 8 9 10 meter
-
Marketing Type:
-
Hot product 2020
-
Application:
-
Workshop, Manufacture Plant, Clean room, Marine
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
YUANDA
-
Weight (KG):
-
500 kg
-
Product name:
-
Mobile A-frame Aluminum Gantry Crane Price
-
Material:
-
Aluminum alloy material
-
Crane feature:
-
rustproof, corrosion resistant
-
Control Method:
-
Remote Control
-
Lifting mechanism:
-
Electric Chain Hoist
-
Advantage:
-
Foldable, adjustable, disassembe, dismantle
-
Structure:
-
A frame, A-frame, aframe
-
Wheels:
-
Rubber tyre caster wheels
-
Keywords:
-
aluminum marine crane
500kg 1000kg 2000kg 3000kg 5000kg 5 ton Mini small a frame adjustable height span Foldable portable aluminum alloy gantry cranes
Adjustable Height Aluminum Gantry Crane

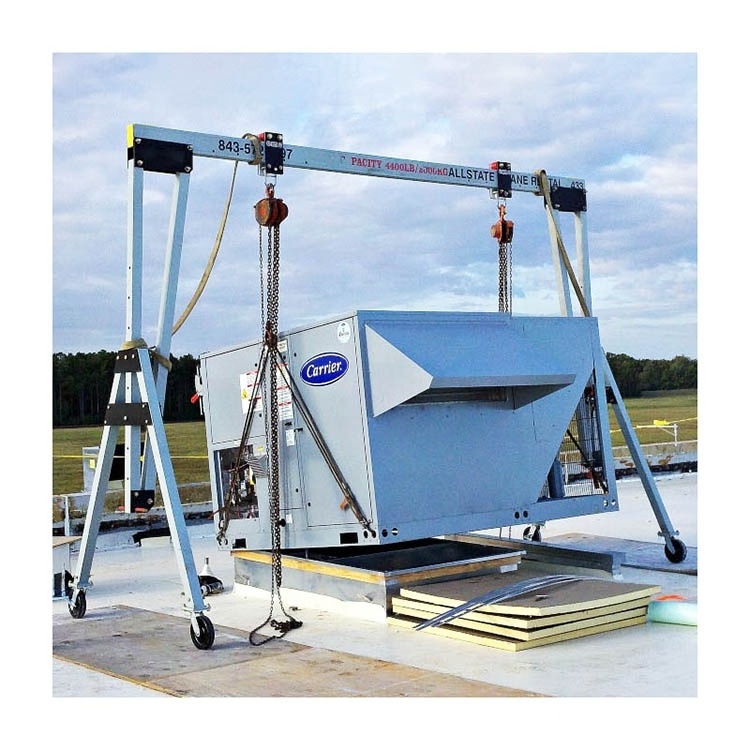

Made from lightweight extruded materials, the components of the Adjustable Height Aluminum Gantry Crane are easily lifted by one person. This provides cost-effective transport to a job site, and allows for ease of use in a multitude of work areas—for example, carrying material up a ladder or staircase to a rooftop work area.
Lightweight
– easily move for use in any location in your facility
Square tubing uprights and channel base
– provides stability when lifting loads and during movements
Adjustable Height and Span
– provides maximum lift in many applications and can easily be adjusted to fit any span
Collapsible for easy storage
– doesn’t take up valuable production space - when not in use
|
Item |
Rated Load (ton) |
Total Height (mm) |
Max. Lifting Height (mm) |
Outside Span (mm) |
Inner Span (mm ) |
H Height |
|
LT-1 |
0.5 |
3000 |
2420 |
2000 |
1880 |
460 |
|
0.5 |
3000 |
2420 |
3000 |
2880 |
460 |
|
|
0.5 |
4000 |
3420 |
3000 |
2880 |
460 |
|
|
0.5 |
4000 |
3420 |
4000 |
3880 |
460 |
|
|
1 |
3000 |
2470 |
2000 |
1880 |
410 |
|
|
1 |
3000 |
2470 |
3000 |
2880 |
410 |
|
|
1 |
4000 |
3470 |
3000 |
2880 |
410 |
|
|
1 |
4000 |
3470 |
4000 |
3880 |
410 |
|
|
2 |
3000 |
2215 |
2000 |
1800 |
535 |
|
|
2 |
3000 |
2215 |
3000 |
2800 |
535 |
|
|
2 |
4000 |
3215 |
3000 |
2800 |
535 |
|
|
2 |
4000 |
3215 |
4000 |
3800 |
535 |
|
|
3 |
3000 |
2122 |
2000 |
1800 |
685 |
|
|
3 |
3000 |
2122 |
3000 |
2800 |
685 |
|
|
3 |
4000 |
3122 |
3000 |
2800 |
685 |
|
|
3 |
4000 |
3122 |
4000 |
3800 |
685 |
|
|
5 |
Customized made. Pls contact supplier for further details. |
|||||
|
10 |
||||||
And the dimension and capacity all can be customized made as you need , even if you do not know the specific data clearly, pls tell us the problem you meet now and the objects you need to lift. Then our engineer team can suggest a best design and solution for you.
