Quick Details
-
Hydrant Material:
-
Ductile Cast
-
Normal Medium:
-
Clean Water or Foam Mixture Liquid
-
Working Pressure:
-
1.6 MPa, 16 Bar
-
Strength Test Pressure:
-
2.4 MPa, 24 Bar
-
Hydrant Color:
-
Red Mostly or Buyer's Requirement
-
Certificate:
-
ISO and Chinese CCCF
-
Guarantee Period:
-
1 year after delivery
-
Installation:
-
Used is Supply Water City Garden
-
Coupling Size:
-
65mm, 80mm, 100mm, 150mm
-
Manufacturer:
-
Fujian Guangbo Fire Fighting Equipment Co., Ltd
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
GuangBo or No Brand
-
Model Number:
-
Outdoor Fire Hydrant DN100 or DN150
-
Hydrant Material:
-
Ductile Cast
-
Normal Medium:
-
Clean Water or Foam Mixture Liquid
-
Working Pressure:
-
1.6 MPa, 16 Bar
-
Strength Test Pressure:
-
2.4 MPa, 24 Bar
-
Hydrant Color:
-
Red Mostly or Buyer's Requirement
-
Certificate:
-
ISO and Chinese CCCF
-
Guarantee Period:
-
1 year after delivery
-
Installation:
-
Used is Supply Water City Garden
-
Coupling Size:
-
65mm, 80mm, 100mm, 150mm
-
Manufacturer:
-
Fujian Guangbo Fire Fighting Equipment Co., Ltd
Keyword: SSF100/65-1.6 Customized Anti Collision Pillar Post Fire hydrant Valve Used in Firefighting Protection Equipment

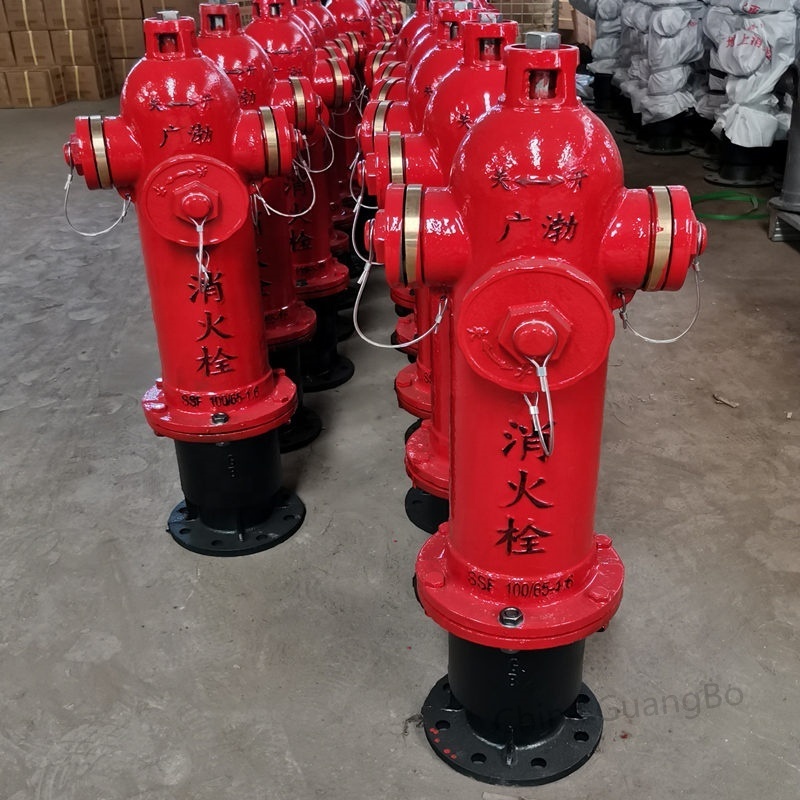

Ground Outdoor Hydrant has many kinds of types, SSF100/65-1.6 MPa
is one good selling
kind.
SS type ground fire hydrant is designed according to GB4452-2011 "Outdoor Fire Hydrant" standard. This product has the advantages of beautiful appearance, reasonable structure and convenient maintenance. It is the main equipment for the urban pipe network to supply water to the fire site. It is installed on the outdoor fire water supply pipe network for fire trucks or fire pumps to take water to extinguish the fire. For example, areas with high-pressure water sources in the pipe network can be directly connected to the hose to extinguish the fire. Suitable for areas with high temperatures.
|
Model Specification
|
Ground Type SS100/65-1.6 SSF100/65-1.6 SSFT100/65-1.6 Underground Type SA100/65-1.6 SA150/80-1.6 |
Ground Type SS150/80-1.6 (SS150/65-1.6) SSF150/80-1.6 SSFT150/80-1.6 |
|
Nominal pressure
|
1.6 | 1.6 |
|
Nominal diameter
|
100
|
150 |
|
Inlet diameter
|
100 | 150 |
|
Outlet diameter / interface
|
100 / 2-KWS65 100 / 2-KWA65 |
150 / 2-KWS80 |
|
Opening height (mm)
|
50 | 55 |
|
Flange connection size D
|
220 | 285 |
|
Flange connection size D1
|
180
|
240 |
|
Flange connection size n-d
|
8 - ø 17.5 | 8 - ø22 |
|
Applicable medium
|
Water / foam mixture | |
Please see bellow picture details
1.Are you manufacturer or trading company?
We are Chinese factory specialized in fire fighting equipment. For some old buyers, we also help them to export other legal fire protection products.
2.How long is your delivery time?
For regular products, 2-5 days. For OEM service goods, 8-15 days or negotiation.
3.Technical Data
We are sales team and engineer research development team, with all techinical support before and after sales.
4.Professional Sales
Your value sending enquiry is important, business is start from your click sending out firstly, then we could talking cooperation.
5.Can I get free sample?
Small pieces, for free, please send your consignee address. Big pieces, please contact us for packing details and transportation costs.
Hello, Customers, If You Can Send Inquiry to bellow email. We Could Talk More Easily.
Our company provides technical support for who use our Firefighting products.
Please contact the technical department of our company, if any problem in the procurement, installation, use and maintenance process, our technical staff will immediately provide related technical support.
