Quick Details
-
Applicable Industries:
-
machinery, industry
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YUKAI
-
Dimension(L*W*H):
-
Custom Size
-
Weight:
-
KG
-
Warranty:
-
12 Months
-
Core Components:
-
heater
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
DC 5v 12v 24v 36v right angel waterproof heating pipe
-
Application:
-
Industry Heating Process
-
Shape:
-
Depends upon the application
-
Insulation material:
-
High-purity Mgo Powder
-
Sheath material:
-
SUS304/316L/201/Incoloy 800
-
Heating wire:
-
Nickel Chrome Resistance Wire
-
Size:
-
customized
-
Usage:
-
High Temperature Electric Heating
Quick Details
-
Type:
-
Water Heater
-
Power Source:
-
Electric
-
Voltage:
-
customized
-
Applicable Industries:
-
machinery, industry
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YUKAI
-
Dimension(L*W*H):
-
Custom Size
-
Weight:
-
KG
-
Warranty:
-
12 Months
-
Core Components:
-
heater
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
DC 5v 12v 24v 36v right angel waterproof heating pipe
-
Application:
-
Industry Heating Process
-
Shape:
-
Depends upon the application
-
Insulation material:
-
High-purity Mgo Powder
-
Sheath material:
-
SUS304/316L/201/Incoloy 800
-
Heating wire:
-
Nickel Chrome Resistance Wire
-
Size:
-
customized
-
Usage:
-
High Temperature Electric Heating

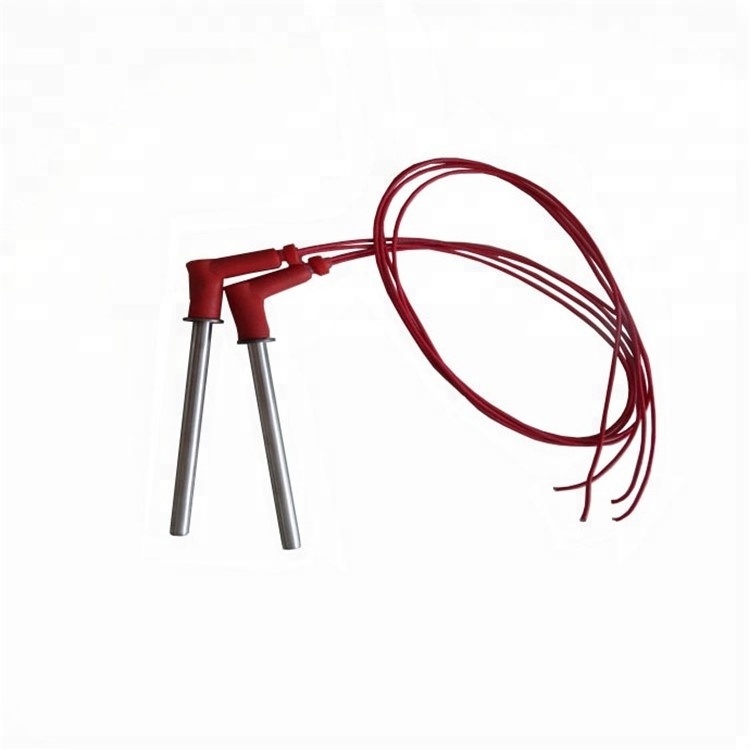

DC 12v 24v right angel waterproof heating pipe heater element
|
Diameter
|
from 3.0mm to 30mm;
|
|
Length tolerance
|
± 2% or 3.2mm (1/8"), whichever is greater
|
|
Voltages available
|
12V-480V or as customer's demand
|
|
Diameter tolerance
|
Diameter at each end may vary +0.05mm -0.1mm (+.002 -.004)
|
|
Internal thermocouple
|
type J or K;
|
|
Thermocouple Location
|
Disc End, Sheath, Center of Heater;
|
|
Maximum leakage current (cold)
|
≤ 0.5 mA;
|
|
Resistance tolerance
|
+10%, -5%
|
|
Wattage Tolerance
|
+5%, -10%
|
|
Wattage density
|
high/middle/low(5-25w/cm2)
|
|
Sheath Material
|
SUS 304/316L/201 Incoloy 800
|
|
Standard Cold Zone
|
5-10mm
|
1. Flexibility with minimum order requirements
2. On-time delivery
3. Technical support ( with overseas service available)
4. Simple ordering procedure: Email, fax or mail.
Packaging Details:10pcs/polybag,outerside with carton packing
Q:Are you trading company or manufacturer ?
A: Yes,we are a factory.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Yancheng , Jiangsu , China, about 4 hours bus ride from Shanghai.
Q: Are your products customized?
A:Yes,the products in the website are only the common type or the previous types from other customers, we can supply the new products according to your requirements or drawings.
Q:Where are the Cartridge Heater Applications?
A:Liquid Immersion, Plastic Molds, Dies, Labeling, Medical Equipment, Platens, Packaging Equipment, Hot Stamping, Sealing, Injection Molding etc..
