Quick Details
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
Multiple sizes
-
Panel Efficiency:
-
22%
-
Vmp:
-
16.50V
-
Imp:
-
12.12A
-
Voc:
-
19.80V
-
Isc:
-
12.36A
-
Cell Efficiency:
-
22%
-
Max System Votltage:
-
1000V DC(IEC)/600V DC
-
Power Tolerance:
-
+/-5%
-
Weight:
-
3.85kg
-
Product name:
-
USA SunPower marine 12V 24V 200W semi flexible solar panel
-
Type:
-
Flexible solar panel
Quick Details
-
Cell size:
-
Multiple sizes
-
Brand Name:
-
SUNSUN
-
Model Number:
-
SS-S200WP
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
Multiple sizes
-
Panel Efficiency:
-
22%
-
Vmp:
-
16.50V
-
Imp:
-
12.12A
-
Voc:
-
19.80V
-
Isc:
-
12.36A
-
Cell Efficiency:
-
22%
-
Max System Votltage:
-
1000V DC(IEC)/600V DC
-
Power Tolerance:
-
+/-5%
-
Weight:
-
3.85kg
-
Product name:
-
USA SunPower marine 12V 24V 200W semi flexible solar panel
-
Type:
-
Flexible solar panel
Product Information

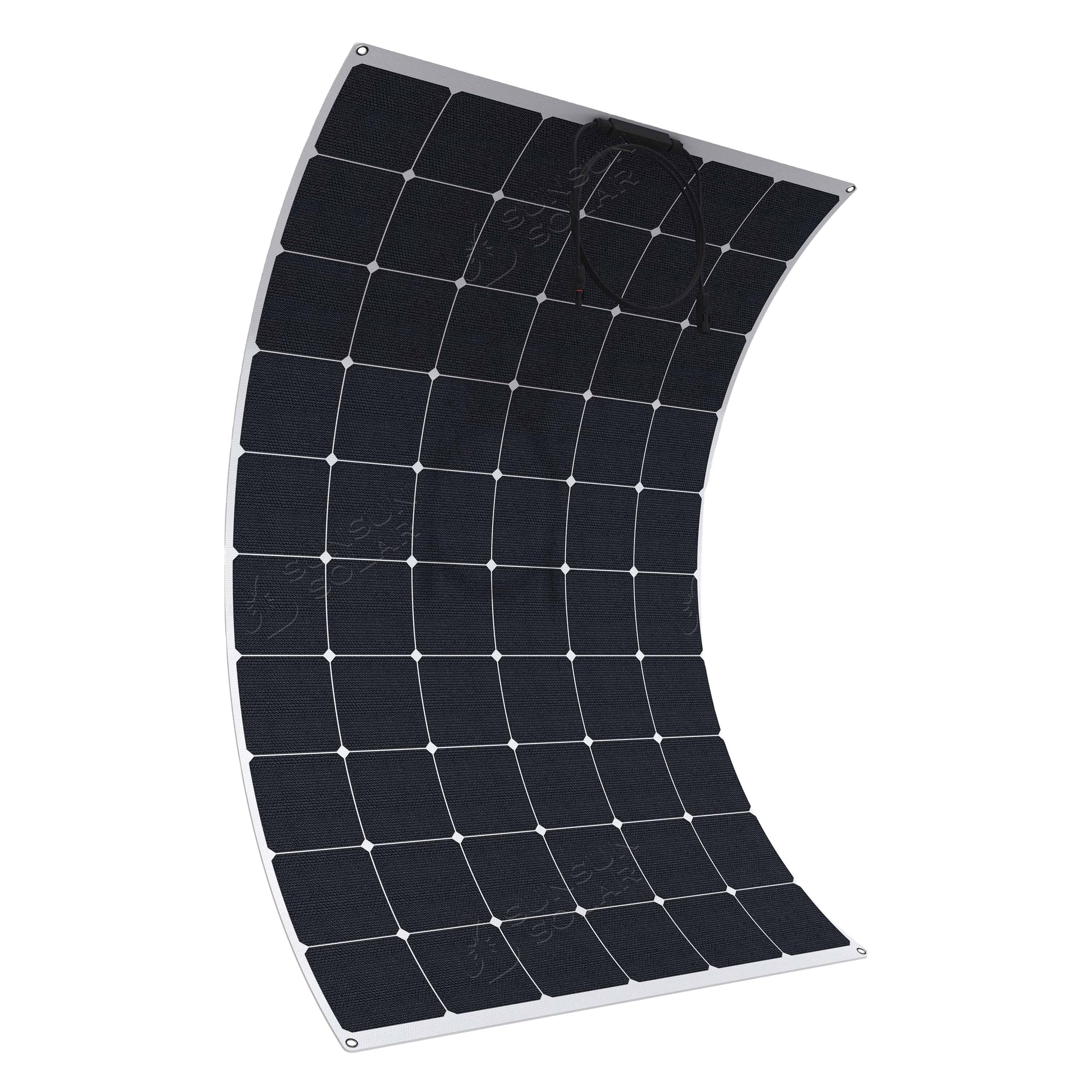

OEM/ODM 12V 24V 200w Portable ETFE/PET sunpower solar panel Strips semi flexible solar panel
1).Description
Water-proof,perfect to use on yacht,car,boat,snow mobile,golf-cart....etc
Light weight for easy carrying flexible solar panel
High efficiency crystalline solar cell flexible solar panel
2).Semi Flexible
Bending angle up to 30 degrees flexible solar panel
Water-proof,perfact to use on yacht,car,boat,snow mobile,golf-cart....etc
Light weight for easy carrying flexible solar panel
3).Standard Test Condition
Est each module at lOOOW/m2,AMl.5,25'C before packing flexible solar panel
Water-proof,perfect to use on yacht,car,boat,snow mobile,golf-cart....etc
Light weight for easy carrying flexible solar panel
High efficiency crystalline solar cell flexible solar panel
2).Semi Flexible
Bending angle up to 30 degrees flexible solar panel
Water-proof,perfact to use on yacht,car,boat,snow mobile,golf-cart....etc
Light weight for easy carrying flexible solar panel
3).Standard Test Condition
Est each module at lOOOW/m2,AMl.5,25'C before packing flexible solar panel
|
Model
|
SS-S200WP
|
|
Maximum Power at STC (Pmax)
|
200 W
|
|
Optimum Operating Voltage (Vmp)
|
16.50 V
|
|
Optimum Operating Current (Imp)
|
12.12A
|
|
Open - Circuit Voltage (Voc)
|
19.80V
|
|
Short - Circuit Current (Isc)
|
12.36A
|
|
Cell Efficiency
|
22.0%
|
|
Operating Module Temperature
|
-20 °C to +65 °C
|
|
Maximum System Voltage
|
1000 V DC (IEC) / 600 V DC (UL)
|
|
Maximum Series Fuse Rating
|
20 A
|
|
Power Tolerance
|
±5 %
|
|
Solar Cell
|
Sunpower
|
|
No. of Cells
|
60
|
|
Dimensions
|
1310 × 780× 2.8mm
|
|
Weight
|
3.85 kgs
|
|
Front Glass
|
PET
|
|
Frame
|
N/A
|
|
Junction Box
|
IP67 rated
|
|
Output Cables
|
TUV (2Pfg1169:2007), UL 4703, UL 44
|
|
|
Optional
4.0 mm2,symmetical lengths(-)1000mm and (+)1000mm |
|
Connectors
|
SOLAR MC4
integrated twist locking connectors |
