Quick Details
-
Dimension(L*W*H):
-
1335*1721*2488
-
Motor Power (kW):
-
5.5
-
Model Number:
-
electrical puncher
-
Weight (T):
-
3.8
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Certification:
-
CE ISO
-
CNC or Not:
-
Normal
-
Material:
-
Steel Material
-
Keyword:
-
automatic punching machine
-
Color:
-
Optional
-
Name:
-

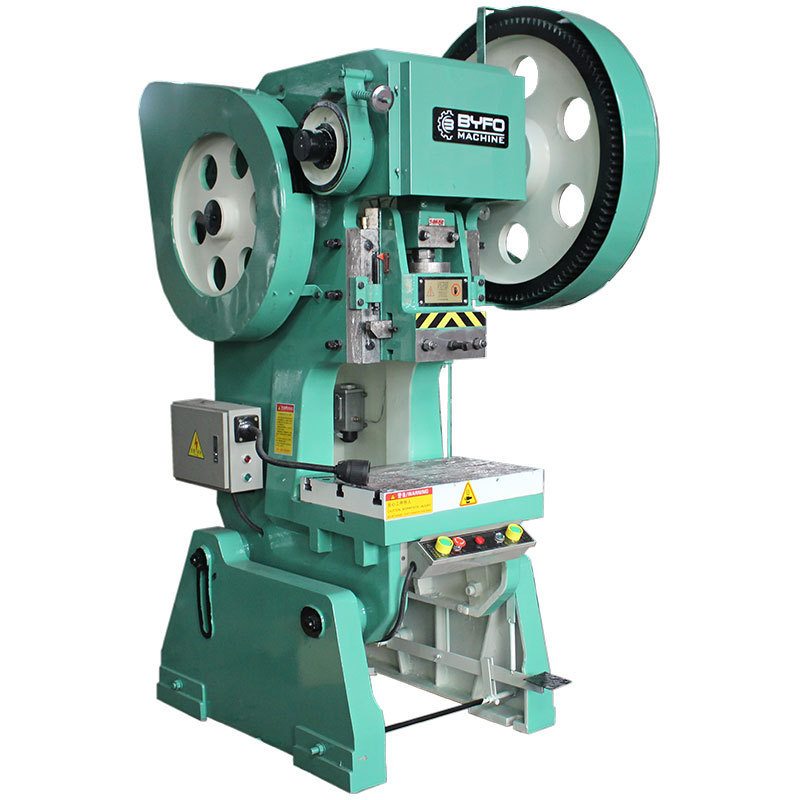

JB23-40T Hvac duct G Clamp punching machine
-
Function:
-
tdf or tdc corner punch
-
Nominal Force (kN):
-
400
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BYFO
-
Voltage:
-
380V 50HZ 3PH, 380V/220V Optional
-
Dimension(L*W*H):
-
1335*1721*2488
-
Motor Power (kW):
-
5.5
-
Model Number:
-
electrical puncher
-
Weight (T):
-
3.8
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Certification:
-
CE ISO
-
CNC or Not:
-
Normal
-
Material:
-
Steel Material
-
Keyword:
-
automatic punching machine
-
Color:
-
Optional
-
Name:
-
JB23-40T Hvac duct G Clamp punching machine
-
Function:
-
tdf or tdc corner punch
-
Nominal Force (kN):
-
400
TDF punching machine
PRODUCT SPECIFICATIONS
|
Parameter
|
|
Unit
|
JB23-40
|
JB23-63
|
|
|
Nominal Capacity
|
|
KN
|
400
|
630
|
|
|
Nominal Stroke
|
|
mm
|
6
|
6
|
|
|
Slide Stroke
|
|
mm
|
90
|
110
|
|
|
Slide Stroke Per Minute
|
|
T/M
|
45
|
50
|
|
|
Maximum Die Set Height
|
|
mm
|
320
|
360
|
|
|
Die Height Adjustment
|
|
mm
|
65
|
80
|
|
|
Throat Depth
|
|
mm
|
250
|
260
|
|
|
Distance Between Uprights
|
|
mm
|
340
|
350
|
|
|
Slide Bottom Size
|
L x R
|
mm
|
300
|
300
|
|
|
|
F x B
|
mm
|
260
|
260
|
|
|
Stem hole Size
|
Dia
|
mm
|
50
|
50
|
|
|
|
Depth
|
mm
|
70
|
70
|
|
|
Bolster Size
|
L x R
|
mm
|
700
|
760
|
|
|
|
F x B
|
mm
|
460
|
480
|
|
|
Diameter of Blanking Hole
|
|
mm
|
150
|
180
|
|
|
Bolster Thickness
|
|
mm
|
65
|
80
|
|
|
Max. Angle of Inclination
|
|
.
|
30
|
20
|
|
|
Bolster Surface Height
|
|
mm
|
850
|
810
|
|
|
Overall Size
|
F x B
|
mm
|
1721
|
1810
|
|
|
|
L x R
|
mm
|
1335
|
1350
|
|
|
|
H
|
mm
|
2488
|
2740
|
|
|
Distance between foundation bolts
|
F x B
|
mm
|
1060
|
1180
|
|
|
|
L x R
|
mm
|
750
|
850
|
|
|
Motor Power
|
|
Kw
|
5.5
|
5.5
|
|
|
Weight
|
|
Kg
|
2600
|
3800
|
|
PRODUCT CONFIGURATION
TDF CORNER
TDF DUCT FORMING
TDF CORNER MOULD
How about your machine quality? We are worry about the quality.
RE:Byfo company is a mature brand in CHINA,through our 19 years research in technology,our design including structure and detailed
security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute
worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our
machines,there are good reputation and terminal user satisfaction.
Whether the machine price can be more discount?
RE:1 .BYFO always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market
because of communication time costing after sales,So always,our machine has enough qaulity standard to make sure the machine can
work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.
RE:2 . we are sure to provide quality=price and price=quality ,the matched price and acceptable for the clients and durable for our
machines.We welcome your negotiate with us and get a good satisfaction.
RE:Byfo company is a mature brand in CHINA,through our 19 years research in technology,our design including structure and detailed
security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute
worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our
machines,there are good reputation and terminal user satisfaction.
Whether the machine price can be more discount?
RE:1 .BYFO always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market
because of communication time costing after sales,So always,our machine has enough qaulity standard to make sure the machine can
work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.
RE:2 . we are sure to provide quality=price and price=quality ,the matched price and acceptable for the clients and durable for our
machines.We welcome your negotiate with us and get a good satisfaction.
