Quick Details
-
Brand Name:
-
kexlimice
-
Model Number:
-
ESMCLM
-
Product name:
-

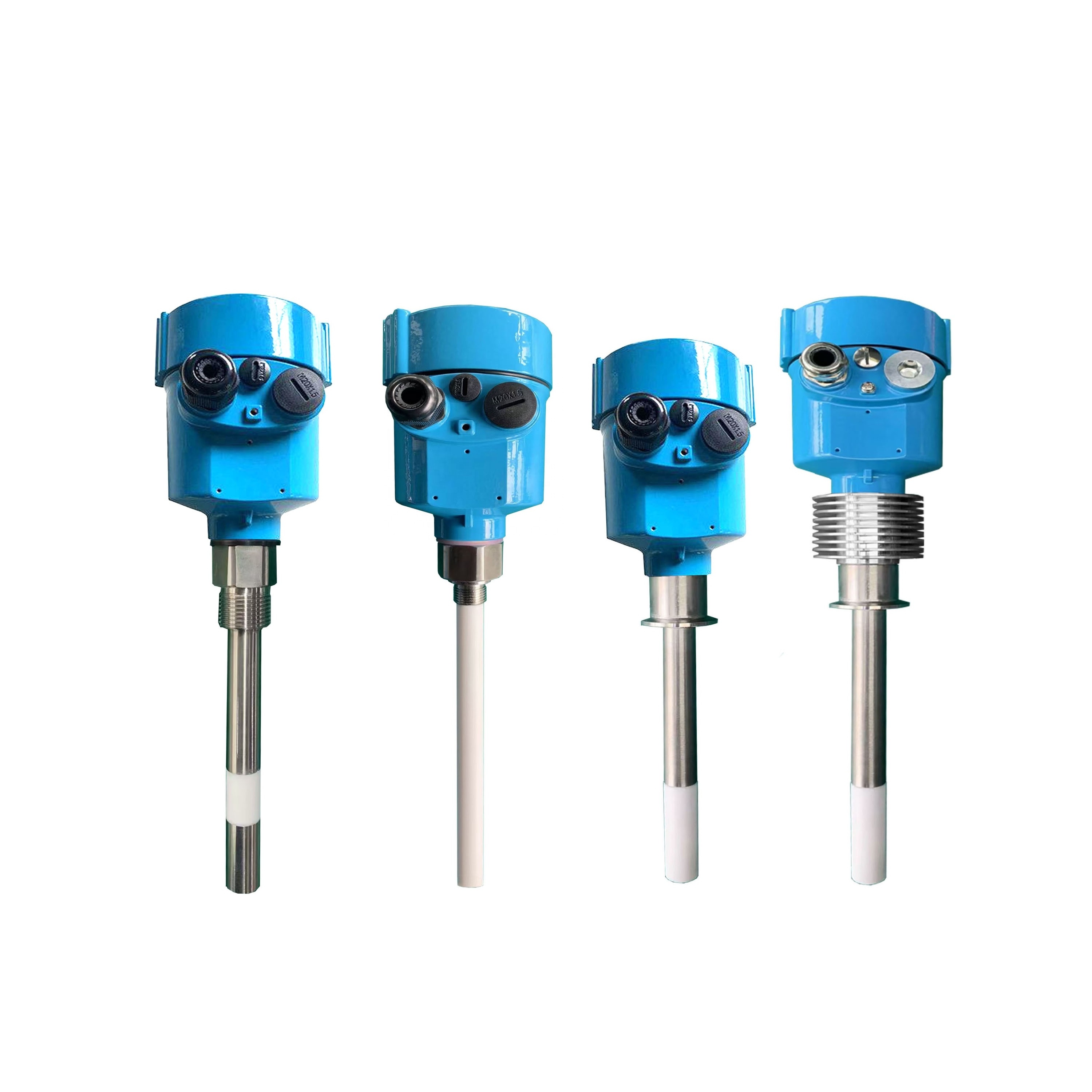

Electrostatic capacitive material level switch
-
Power supply:
-
DC 24V/AC220V/110V
-
Consumed power::
-
2w
-
Output way::
-
SPDT 5A/250AC/30VDC,NPN/PNP
-
The sensitivity::
-
0-16PF
-
The output delay::
-
1-30S
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1 years
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
kexlimice
-
Model Number:
-
ESMCLM
-
Product name:
-
Electrostatic capacitive material level switch
-
Power supply:
-
DC 24V/AC220V/110V
-
Consumed power::
-
2w
-
Output way::
-
SPDT 5A/250AC/30VDC,NPN/PNP
-
The sensitivity::
-
0-16PF
-
The output delay::
-
1-30S
Product Description
Specification
|
power supply
|
DC24V/AC220V/110V
|
|
|
||
|
Consumed power
|
2W
|
|
|
||
|
The environment temperature
|
-20~60℃
|
|
|
||
|
Medium temperature
|
-20~80℃
|
|
-20~200℃
|
||
|
Output way
|
SPDT 5A/250VAC/30VDC , NPN/PNP
|
|
|
||
|
The sensitivity
|
0~16PF
|
|
|
||
|
Process connection
|
G1
|
|
|
||
|
Rod material
|
SUS304/316
|
|
|
||
|
Insulation material
|
UPE
|
|
PTFE
|
||
|
Electrical interface
|
2-M20*1.5
|
|
|
||
|
The output delay
|
1-30S
|
|
|
||
|
Pressure of work
|
＜1.5Mpa
|
|
|
||
|
Terminal block
|
Aluminum alloy（IP65）
|
|
|
||
|
The weight of the
|
About 2.3kg
|
|
About 2.7kg
|
||
|
power supply
|
DC24V/AC220V/110V
|
|
|
||
|
Consumed power
|
2W
|
|
|
||
|
The environment temperature
|
-20~60℃
|
|
|
||
|
Medium temperature
|
-20~800℃
|
-20~80℃
|
-20~120℃
|
||
|
Output way
|
SPDT 5A/250vac/30vdc;NPN/PNP
|
|
|
||
|
The sensitivity
|
0-16PF
|
|
|
||
|
Process connection
|
DN65 PN1.0
|
DN40 PN1.0(materialPP)
|
Flange + 4 MMPVDF DN40 PN1.0 (SUS)
|
||
|
Rod material
|
SUS304/316
|
Sus304 coating PP (polypropylene), 304 don't contact with the liquid
|
Sus304 coating PP (polypropylene), 304 don't contact with the liquid
|
||
|
Insulation material
|
ceramic
|
UPE
|
PTFE
|
||
|
Electrical interface
|
2-M20*1.5
|
|
|
||
|
The output delay
|
1-30S
|
|
|
||
|
Pressure of work
|
AMT
|
＜1.5MPA
|
|
||
|
Terminal block
|
Aluminum alloy (IP65)
|
|
|
||
|
The weight of the
|
about 6.5kg
|
about 2.5kg
|
about 3.0kg
|
||
|
power supply
|
DC24V/AC220V/110V
|
|
|
||
|
Consumed power
|
2W
|
|
|
||
|
The environment temperature
|
-20~60℃
|
|
|
||
|
Medium temperature
|
-20~80℃
|
|
-20~200℃
|
||
|
Output way
|
SPDT 5A/250vac/30vdc;NPN/PNP
|
|
|
||
|
The sensitivity
|
0-16PF |
|
|
||
|
Process connection
|
G1
|
DN65PN1.0
|
G1
|
||
|
Rod material
|
SUS304/316
|
SUS304/316
|
|
||
|
Insulation material
|
UPE
|
|
|
||
|
Electrical interface
|
2-M20*1.5
|
|
|
||
|
The output delay
|
1-30S
|
|
|
||
|
Pressure of work
|
< 1.5 Mpa
|
|
|
||
|
Terminal block
|
Aluminum alloy (IP65)
|
|
|
||
|
The weight of the
|
About2.3kg
|
|
About2.7kg
|
||
|
power supply
|
DC24V/AC220V/110V
|
|
|
||
|
Consumed power
|
2W
|
|
|
||
|
The environment temperature
|
-20~60℃
|
|
|
||
|
Medium temperature
|
-20~200℃
|
-20~80℃
|
|
||
|
Output way
|
SPDT 5A/250vac/30vdc;NPN/PNP
|
|
|
||
|
The sensitivity
|
0-16PF
|
|
|
||
|
Process connection
|
G1
|
|
|
||
|
Rod material
|
SUS304/316
|
|
|
||
|
Insulation material
|
PTFE
|
|
|
||
|
Electrical interface
|
2-M20*1.5
|
|
|
||
|
The output delay
|
1-30S
|
|
|
||
|
Pressure of work
|
＜1.5MPA |
|
|
||
|
Terminal block
|
Aluminum alloy (IP65) |
|
|
||
|
The weight of the
|
About 2.3kg
|
About 2.7kg
|
|
||
Packing & Delivery
standard package
