Quick Details
-
H.S.Code:
-
5431499900
-
Application:
-
Rubber track chassis used for lawn mower, snowblower etc
-
Product name:
-
Rubber track chassis undercarriage platform
-
Material:
-
Rubber&alloy aluminum frame
-
Production capacity:
-
1000pcs/month
-
Package:
-
Plywood Box
-
Delivery:
-
5-15 working Days
-
Color:
-
Black or as per customer's demand
Quick Details
-
Place of Origin:
-
Shanghai, China, Shanghai,China
-
Brand Name:
-
KCM
-
Minimum Order Quantity::
-
1 Piece
-
H.S.Code:
-
5431499900
-
Application:
-
Rubber track chassis used for lawn mower, snowblower etc
-
Product name:
-
Rubber track chassis undercarriage platform
-
Material:
-
Rubber&alloy aluminum frame
-
Production capacity:
-
1000pcs/month
-
Package:
-
Plywood Box
-
Delivery:
-
5-15 working Days
-
Color:
-
Black or as per customer's demand
We have developed various tracked undercarriage systems
the load capacity is from 0.5 ton to 20 ton.
It has been widely applied in drilling machines (core drill, horizontal directional drilling rig, belt engineering drill, and engineering rig), engineering machines, mining, colliery, agricultural and gardening machines. Meanwhile, we have a lot of experience engineers who can provide you technical support and technical consultancy to meet your needs. If you are just in need to customize a rubber track chassis, please feel to consult us at any time.

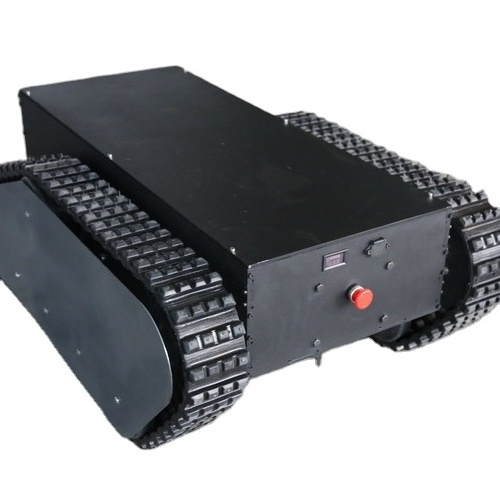

Electric walking rubber crawler
robot chassis
1, The crawler adopts high-strength tensile fiber wear-resistant rubber crawler width 130 m m
2, The wheels are made of high molecular weight polyethylene
3. The size of the chassis is 1600mm long, 1080mm wide and 780mm high. It can bear 300 kg and its own weight is 300 kg.
4.2 pcs electric motor 1000wt with romot control effective distance up to 300 mm
5. The body is made of aviation aluminum, and the overall weight is light.
6, The climbing ability is very good, and it has good passability on unconventional roads such as snow. It is an all-terrain chassis with a driving speed of about 5 kilometers per hour.
Specifcation as below:
|
Length( mm) |
Width ( mm) |
Height ( mm) |
Off From Ground ( mm) |
E lec tric motor ( mm) |
Weight( kg s ) |
Load bearing |
Speed |
|
1600 |
1080 |
780 |
|
24V /10 00 K ilowatt |
customized |
300kgs |
--- Kilometer |
The feature of rubber tracks:
(1). Less round damage
Rubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground than either steel tracks of wheel products.
(2). Low noise
A benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.
(3). High speed
Rubber track permit machines to travel at a higher speed than steel tracks.
(4). Less vibration
Rubber tracks insulate machine and operator from vibration, extending the machine's lifetime and lowering operate fatigue.
(5). Low ground pressure
The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ CMM, a major reason for its use on the wet and soft terrain.
(6). Superior traction
The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the sane weight.
