Quick Details
-
Model Number:
-
TB-35
-
Max. Current:
-
10A
-
Display:
-
Week Program Digital Time Switch
-
Certifications:
-
CE ROHS
-
Item:
-

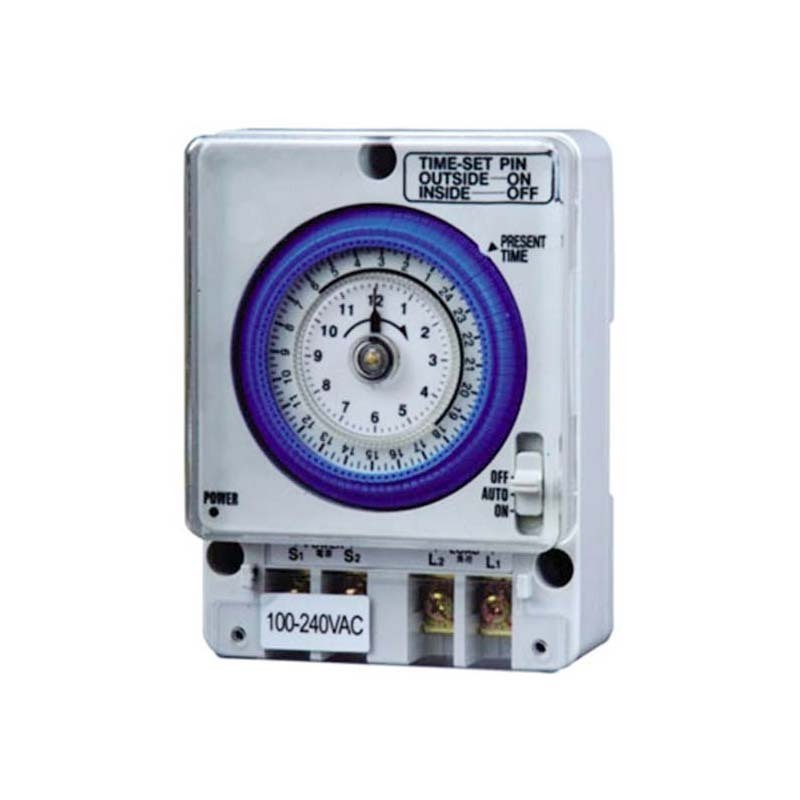

Analogue Time Switch TB-35
-
Color:
-
White
-
Frequency:
-
50-60 Hz
-
Type:
-
Mini
-
Installation:
-
Din Rail
-
Name:
-
Digital Programmable Timer Switch
-
Contact Capacity:
-
16A/250VAC
-
Function:
-
7 Days 24hrs Programmable Time Switch
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
AC230V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Winston
-
Model Number:
-
TB-35
-
Max. Current:
-
10A
-
Display:
-
Week Program Digital Time Switch
-
Certifications:
-
CE ROHS
-
Item:
-
Analogue Time Switch TB-35
-
Color:
-
White
-
Frequency:
-
50-60 Hz
-
Type:
-
Mini
-
Installation:
-
Din Rail
-
Name:
-
Digital Programmable Timer Switch
-
Contact Capacity:
-
16A/250VAC
-
Function:
-
7 Days 24hrs Programmable Time Switch
-
Certification:
-
CE
Technical parameters
| Classification | Timer | Timer | Timer | Timer | |
| Specification/Model | TB-35 | TB-38B | SUL181h | E8 | |
| Contact Capacity | AC220V 20A | AC220V 20A | AC220V 16A | AC220V 10A | |
| Full Timing Range | 24h | 24h | 24h | 7m | |
| Contact Resistance | ≥50mΩ | ≥50mΩ | ≥50mΩ | ≥50mΩ | |
| Insulation Resistance | ≤100MΩ | ≤100MΩ | ≤100MΩ | ≤100MΩ | |
| Coil Voltage | 100~240V AC | 100~240V AC | 110,230V AC | 110,230V AC | |
| Life | Electrical | 10 5 Times | 10 5 Times | 10 5 Times | 10 5 Times |
| Mechanical | 10 7 Times | 10 7 Times | 10 7 Times | 10 7 Times | |
| Operating Temperature | -40 o C~+55 o C | -40 o C~+55 o C | -40 o C~+55 o C | -40 o C~+55 o C | |
| Storage Battery (Working Reserve) | Without Battery | Time 150h | Time 150h | - | |
| Minimum Setting Unit | 15Minutes | 15Minutes | 30Minutes | 0.5Minutes | |
| Set Up Times | 15 m/per times 96 times | 15 m/per times 96 times | 30 m/per times 48 times | 1M,1.5M,2M,2.5M, 3M,3.5M,4.5M,5M, 5.5M,6M,6.5M,7M | |
Outline dimension
