Quick Details
-
Weight (KG):
-
500
-
Power (kW):
-
1.5kw
-
Dimension(L*W*H):
-
2300*1200*2500MM
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
name:
-
High Efficient Miniature Small Herbal Extraction Concentration Machine
-
material:
-
S.S.316L or SUS304
-
function:
-
extracting
-
Type:
-
EXTRACTOR
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XL
-
Model Number:
-
XL
-
Weight (KG):
-
500
-
Power (kW):
-
1.5kw
-
Dimension(L*W*H):
-
2300*1200*2500MM
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
name:
-
High Efficient Miniature Small Herbal Extraction Concentration Machine
-
material:
-
S.S.316L or SUS304
-
function:
-
extracting
-
Type:
-
EXTRACTOR
High Efficient Miniature Small Herbal Extraction Concentration Machine
Product Description
High Efficient Miniature Small Herbal Extraction Concentration Machine
Summary:
This equipment can be used for herbal. Plant, food's decoction, warm soaking, heat reflux, forced circulation, permeability
percolation, aromatic oil extraction and organic solvent recovery process under atmospheric pressure or pressure. It has advantage
of high efficiency and easy operation. Therefore,it is widely used in pharmaceutical,food, chemical and other industries. This
equipment's extraction technique can choose straight cylinder, cone, oblique cone, mushrooms and other forms.
This equipment can be used for herbal. Plant, food's decoction, warm soaking, heat reflux, forced circulation, permeability
percolation, aromatic oil extraction and organic solvent recovery process under atmospheric pressure or pressure. It has advantage
of high efficiency and easy operation. Therefore,it is widely used in pharmaceutical,food, chemical and other industries. This
equipment's extraction technique can choose straight cylinder, cone, oblique cone, mushrooms and other forms.
Specification
|
|
TQ0.5
|
TQ1.0
|
TQ2.0
|
TQ3.0
|
TQ4.0
|
TQ5.0
|
TQ6.0
|
TQ8.0
|
|||||||
|
Volume L
|
560
|
1300
|
2300
|
3300
|
4400
|
5500
|
6500
|
8900
|
|||||||
|
Inner tank design pressure MPa
|
0.09
|
|
|
|
|
|
|
|
|||||||
|
Jacket design pressure MPa
|
0.3
|
|
|
|
|
|
|
|
|||||||
|
Heat exchange area m2
|
2.1
|
4
|
5
|
5.8
|
7.3
|
8.5
|
9.5
|
11
|
|||||||
|
Condense area m2
|
3.0
|
5.0
|
5.0
|
8.0
|
10.0
|
10.0
|
10.0
|
12.0
|
|||||||
|
Cooling area m2
|
1.0
|
1.0
|
1.0
|
1.0
|
1.0
|
1.5
|
1.5
|
1.5
|
|||||||
|
Filter area m2
|
0.25
|
0.25
|
0.25
|
0.25
|
0.25
|
0.50
|
0.50
|
0.50
|
|||||||
|
Waste discharge port mm
|
600
|
800
|
1000
|
1200
|
1200
|
1300
|
1400
|
1500
|
|||||||
|
Man hole mm
|
300
|
400
|
400
|
400
|
450
|
450
|
450
|
500
|
|||||||
|
Steam consumption kg/h
|
100
|
180
|
225
|
300
|
330
|
380
|
420
|
495
|
|||||||
|
Cool water consumption T/h
|
2.6
|
4.2
|
4.2
|
6.8
|
6.8
|
8.5
|
8.5
|
10
|
|||||||
Machine Drawing
Drawing for 50L-500L Extractor and Concentrator Tank
Drawing for 500L-8000L Extractor and Concentrator Tank
Machine Photos

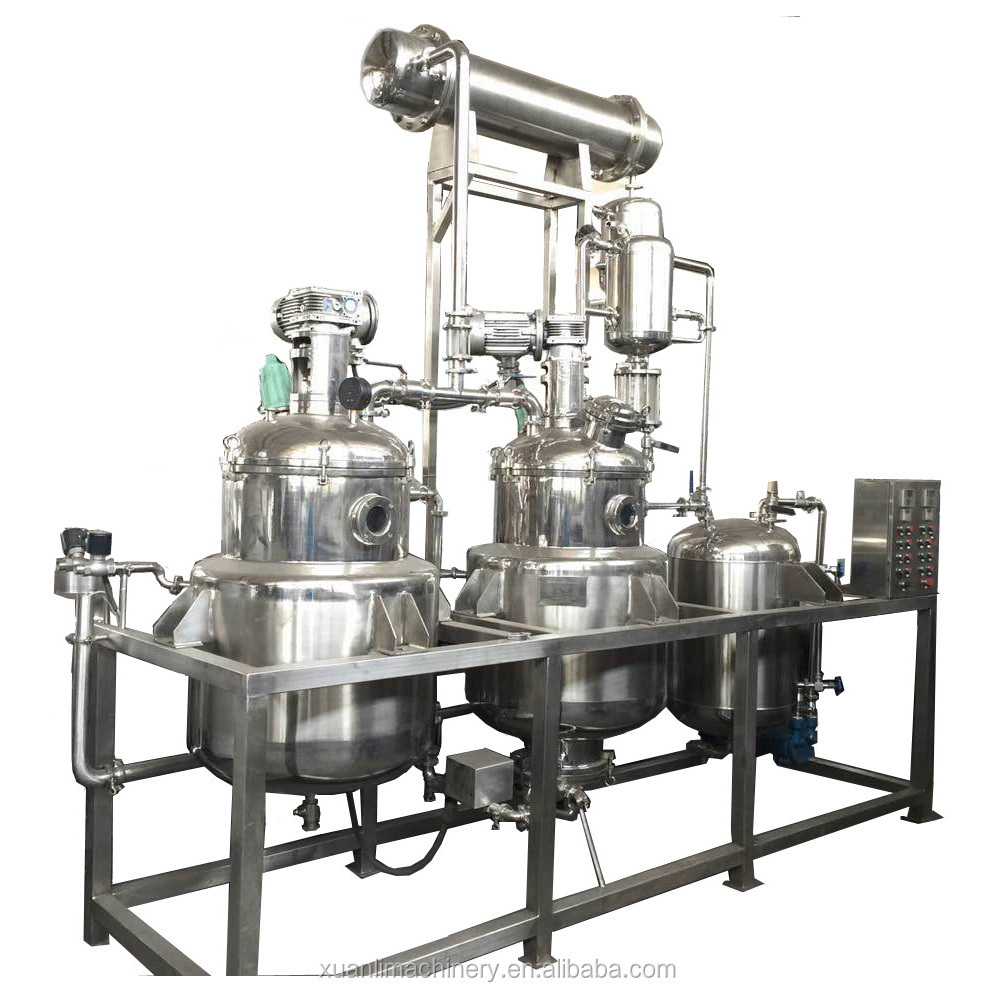

Static Extractor and Concentrator
1. Extraction tank with agitator
2. Concentration tank with agitator
3. Steam jacket heating
3. Steam jacket heating
Electric Extractor and Concentrator
1. Extraction tank with electric heater
2. Concentration tank with electric heater
3. heat conduct oil heating
3. heat conduct oil heating
samples of 8000L extractor Tank
Samples of concentration tank
Project Samples
Packing & Delivery
Samll tanks with use woodcase for package
Big tanks or container shippment, the goods will be wrapped by clothes and shipped
