China 5 ton 8 ton telescopic spider crane mini crawler crane 16m 22m lifting cheapest price crane spider

China 5 ton 8 ton telescopic spider crane mini crawler crane 16m 22m lifting cheapest price crane spider

FOB Reference Price: Get Latest Price

≥1 Sets

US $8900

≥3 Sets

US $7900

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Rated Loading Capacity:: 5000kg

Rated Lifting Moment:: 14.8m*0.3ton

Max. Lifting Height:: 16m

Span:: Left/Right 5600mm Front 5560mm Back 5000mm

Place of Origin:: Shandong, China

Brand Name:: YUANXING

Showroom Location:: USA

Product name:: Spider Crane

Key words:: Hydraulic Mobile Lift Floor Crane

vehicle size:: vehicle size

Track size:: 2200mm*300mm

Color:: Customer Requirements

Maximum ground lift:: 16m* 0.9t

Start mode:: Electric Start

Telescopic Boom:: 5m-16.5m

Dual Power:: Diesel engine and electric motor

Quick Details

Weight (KG):: 6300

Marketing Type:: Hot Product 2024

Application:: Construction,farm,indoor work

Rated Loading Capacity:: 5000kg

Rated Lifting Moment:: 14.8m*0.3ton

Max. Lifting Height:: 16m

Span:: Left/Right 5600mm Front 5560mm Back 5000mm

Place of Origin:: Shandong, China

Brand Name:: YUANXING

Showroom Location:: USA

Product name:: Spider Crane

Key words:: Hydraulic Mobile Lift Floor Crane

vehicle size:: vehicle size

Track size:: 2200mm*300mm

Color:: Customer Requirements

Maximum ground lift:: 16m* 0.9t

Start mode:: Electric Start

Telescopic Boom:: 5m-16.5m

Dual Power:: Diesel engine and electric motor

Product Show

Dual Power

Diesel engine and electric motor

There are two power systems on the machine
Power 1, diesel engine + hydraulic pump
Power 2, electrical motor+hydraulic pump
When the crane comes into the indoor, you can close the diesel engine and connect the 380V/220V wire.

5-ton spider crane with the fly jib

Max lift capacity: 5000 KG

Max lifting height: 21M*0.6 T

A 5-ton model

5 sections of boom

plus the fly jib

Hydraulic outriggers take up less space when working, and the outriggers can also be adjusted . Crawler chassis, more stable, suitable for difficult and complex working environment.

Production Details

Every detail is customized for you, colors, logo, engine...

Yanmar 3TNV88F engine, meets EPA 4 EURO 5 emission standard

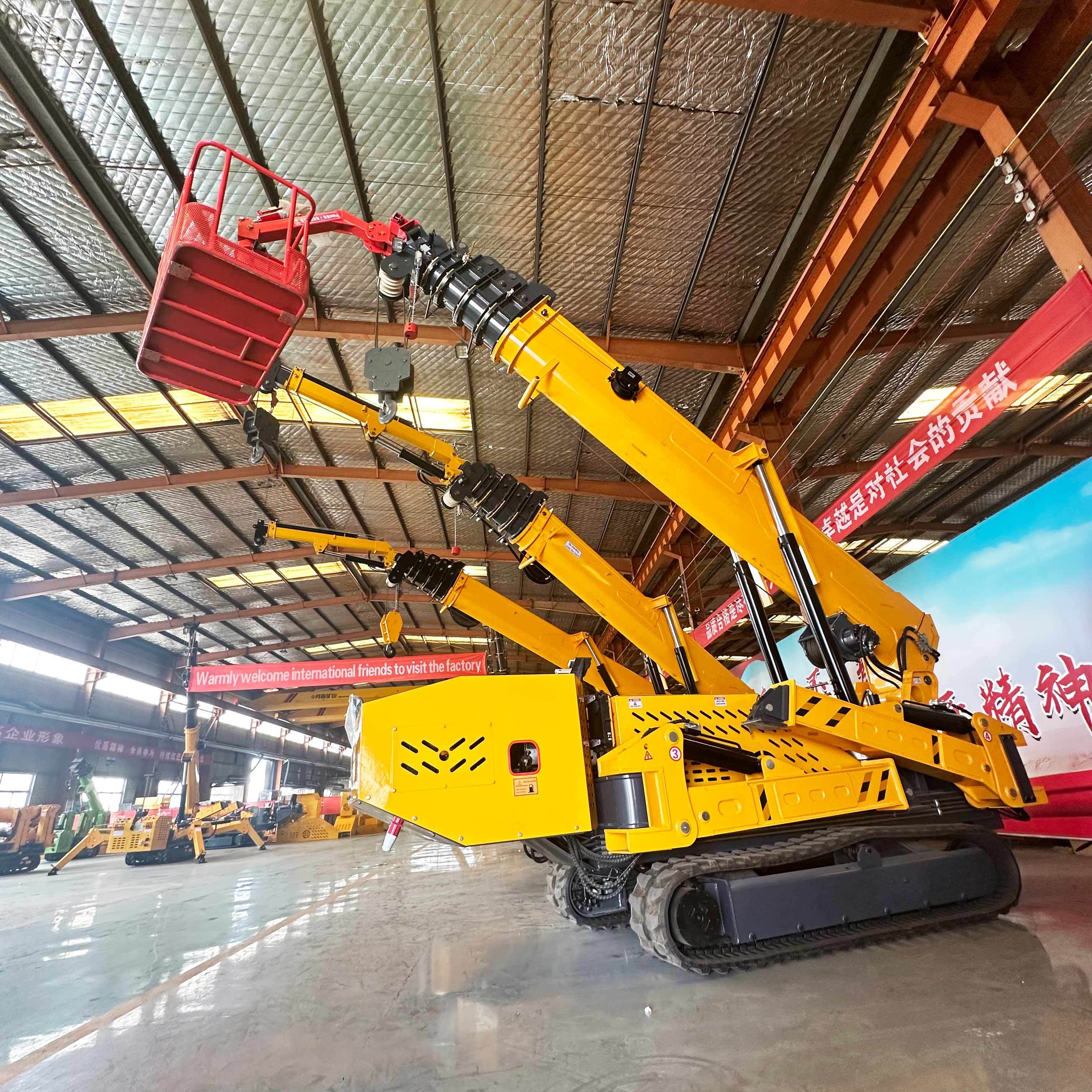

Vacuum glass lifter and hanging basket can be optional

Specification

size

L*W*H: 4650*1400*2160MM

WEIGHT:6300KG

5-ton Crawler Crane
Dual Power	Diesel engine and electric motor
Max working radius	14.8m*0.3ton
Max Ground Lifting Height	15.6m
Hook lifting speed	0-11m/min (high speed 11m/min, low speed 6m/min)
Telescopic Wire rope	Φ12mmx70m（Max)
Telescopic Boom type	Hexagonal fully automatic 5-section
Telescopic Boom length	5m-16.5m
Telescopic Boom length/time	40sec (fully extended)
Undulating Boom angle/time	0~78°/46sec
Gyratory angle/time	0-360°（continuous）120sec
Outrigger Operating type	Manual unscrewing + hydraulic expansion
Outrigger Max extended dimensions	Left/Right 5600mm Front 5560mm Back 5000mm
Traveling type	Hydraulic motor driven
Traveling speed	low speed 0-0.8km/h high speed 0-2km/h
Gradeability	20°
Track size	2200mm*300mm
Engine Brand	Yunnei YN25GB 37KW/ ChangChai /Yanmar 4TNV98C
Engine Starting method	Electric
Fuel	Diesel
Fuel tank capacity	45L
Electric Motor model	YE2-180-6 (Three-Phase AC Asynchronous Motor)
Motor Voltage	AC380V(50Hz) customizable
Motor Power/Speed	15KW/ 970 rpm/min
vehicle size	4650mm1400mm2160mn
vehicle weight	6300kg
Hydraulic Oil Tank Capacity	100L
Safety Devices optional	Remote Control System Safe Load Moment Indicator Anti-Tipping Device One-Click Leveling etc.
