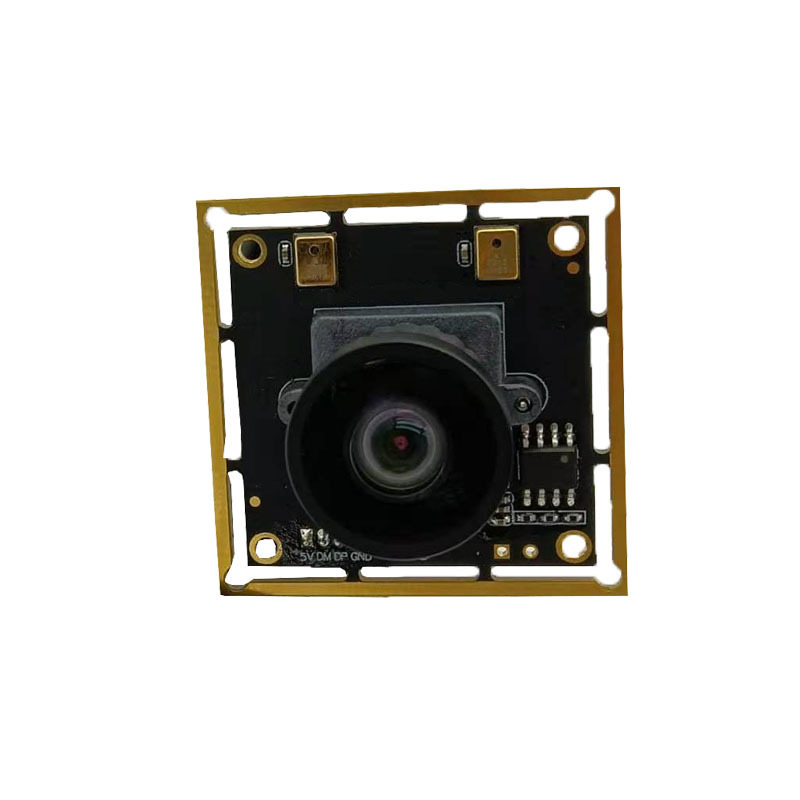

1. IMX377 4K USB2.0 Camera Module.
2. Most effective pixels is 3840(H) x 2880(V)@20FPS (MJPEG).
3. Fixed focus,UVC compliant, plug and play interface standard.
4. Fast speed and large target area
5. Can be equipped with small lens or large lens at the same time
6. The image is delicate, super clear, and the resolution is 12MP
7. Original imaging ratio; 4:3
8. 38*38MM, Support built-in microphone
9. Main application video conference, live broadcast 4H
- Product Details
- {{item.text}}
Quick Details
-
Packaging Type:
-
BAG
-
Application:
-
face recognition, drones, Video webcam
-
Type:
-
Customized support: OEM, ODM
-
Features:
-
4k camera module
-
Mounting Type:
-
face recognition, drones, Video webcam
-
Description:
-
Sony IMX377 12MP 4k USB camera module
-
Keywords:
-
Sony IMX377 12MP USB camera module
-
Sensor:
-
1/2.3''CMOS
-
Resolution:
-
3840(H) x 2880(V)
-
FOV(Diagonal):
-
80°
-
Focus type:
-
Fixed focus
-
Max Dynamic Range:
-
TBD
-
Cable length:
-
1M
-
Dimension:
-
38mm*38mm
-
Interface type:
-
High speed USB 2.0
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
cbritech
-
Model Number:
-
CBT-12MPFF32-V1.0
-
Packaging Type:
-
BAG
-
Application:
-
face recognition, drones, Video webcam
-
Type:
-
Customized support: OEM, ODM
-
Features:
-
4k camera module
-
Mounting Type:
-
face recognition, drones, Video webcam
-
Description:
-
Sony IMX377 12MP 4k USB camera module
-
Keywords:
-
Sony IMX377 12MP USB camera module
-
Sensor:
-
1/2.3''CMOS
-
Resolution:
-
3840(H) x 2880(V)
-
FOV(Diagonal):
-
80°
-
Focus type:
-
Fixed focus
-
Max Dynamic Range:
-
TBD
-
Cable length:
-
1M
-
Dimension:
-
38mm*38mm
-
Interface type:
-
High speed USB 2.0
Product Description
|
Product Name
|
Sony IMX377 12MP USB camera module
|
|
Sensor
|
1/2.3’’ Sony IMX377
|
|
Resolution
|
3840×2880@20FPS
|
|
FOV（Diagonal）
|
80° （ Lens can be option)
|
|
Focus type
|
Fixed focus
|
|
Compression format/Video stream form
|
MJPEG / YUV2 (YUYV)
|
|
Shutter Type
|
Electronic rolling shutter
|
|
Max Dynamic Range
|
TBD
|
|
S/N ratio
|
TBD
|
|
Cable Length
|
1.5 Meters
|
|
Object distance
|
2cm to 100m
|
|
Dimension
|
38mm*38mm
|
|
UVC compliant
|
USB Video Class（UVC）
|
|
Support OS
|
WinXP/Vista/Win7/Win8; Linux with UVC（above linux-2.6.26; MAC-OS X 10.4.8 or later;Android 4.0 or above with UVC, raspberry pi
|
|
Support SDK
|
NO
|
-
Key Features:
-
Details Images
8MP usb2.0 UVC camera module is used for Sony IMX317
CMOS
image sensor , the reslution is
3264×2448
frame rate is 30FPS. It can be
applied to face recognition, high shot equipment.
Standard USB Cable length is 1meter. If you want to longer or shorter, kindly tell us.
UVC standard,support WinXP/Vista/Win7/Win8; Linux with UVC（above linux-2.6.26; MAC-OS X 10.4.8 or later);Android 4.0 or above with UVC, raspberry pi
Recommend Products
Product Application
Packing&Shipping
1000pcs per carton
Company Introduction
Shenzhen Brilliant CMOS Technology Co., Ltd. is specialized in manufacturing camera module, mainly providing USB interface cameramodule, MIPI / DVP interface camera module, miniature endoscope module. We can provide SDK for most USB camera modules,support OEM service.
1K Class Workshop
Our Services & Strength
R&D Department: 5 people, we can support SDK for USB Camera module
Lable: Different styles lable for your choice
FAQ
1. How to buy our product?
You can buy the products from our company directly. Normally the procedure is, sign the contract, make
the payment by T/T, Paypal, Alibaba or Western Union, then ship the goods to your address.
2. What's the warranty?
The free warranty is 2years from the date of commissioning qualified. During the free warranty period, if there's any fault
because of our produce, it's our duty to repair it and change the fault assembly for free.
3. Can we visit your camera module manufacturer?
Of course, we will arrange everything if you can tell me in advance. So please feel free to contact me and I will do my best tomake your trip worthwhile.
4. How to customize camera modules as our requirement?
For customization service, it's warmly welcome.
Our company has been in camera module industry for over 10 years and has a rich experience on customized services.
We'll try our best to meet your requirements.
In order to know well clients' requirements, we should know parameters as below,
a) Form factor
b) Dimensions
c) Pixel
d) Frame rate
e) FOV-horizontal, diagonal, vertical
f) Interface-MIPI, USB, ANALOG etc.
g) Pin description
h) Image Effect, monochrome or colorful
i) Any other function requirement? IR Light, IR Cut? What's the wavelength?
the payment by T/T, Paypal, Alibaba or Western Union, then ship the goods to your address.
2. What's the warranty?
The free warranty is 2years from the date of commissioning qualified. During the free warranty period, if there's any fault
because of our produce, it's our duty to repair it and change the fault assembly for free.
3. Can we visit your camera module manufacturer?
Of course, we will arrange everything if you can tell me in advance. So please feel free to contact me and I will do my best tomake your trip worthwhile.
4. How to customize camera modules as our requirement?
For customization service, it's warmly welcome.
Our company has been in camera module industry for over 10 years and has a rich experience on customized services.
We'll try our best to meet your requirements.
In order to know well clients' requirements, we should know parameters as below,
a) Form factor
b) Dimensions
c) Pixel
d) Frame rate
e) FOV-horizontal, diagonal, vertical
f) Interface-MIPI, USB, ANALOG etc.
g) Pin description
h) Image Effect, monochrome or colorful
i) Any other function requirement? IR Light, IR Cut? What's the wavelength?
