Model Number:
-
RTQ944F/H-16P
-
Brand Name:
-
ROTK
-
Pressure:
-
PN16, PN25
-
Rated travel time:
-
15S/30S
-
rotation angle:
-
0-90 degree
-
Power voltage:
-
AC100V AC220V AC380V DC24V DC12V AC24V
-
Control Mode:
-
On Off Type or Regulation Type
-
Certificate:
-
CE certification
-
Product name:
-
WCB 4 inch motorized control flanged ball valve 4 way actuator valve
Quick Details
-
Port Size:
-
DN50-DN400, 2"~12", DN50~DN400
-
Warranty:
-
1 years
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
RTQ944F/H-16P
-
Brand Name:
-
ROTK
-
Pressure:
-
PN16, PN25
-
Rated travel time:
-
15S/30S
-
rotation angle:
-
0-90 degree
-
Power voltage:
-
AC100V AC220V AC380V DC24V DC12V AC24V
-
Control Mode:
-
On Off Type or Regulation Type
-
Certificate:
-
CE certification
-
Product name:
-
WCB 4 inch motorized control flanged ball valve 4 way actuator valve
Product Description
Our Advantages
•
Guangzhou ROTK Valve Technology Co., ltd
aims to provide our customers the best quality products with the most competitive pricing, on-time delivery and full warranty service.
• Over 30 YEARS manufacturer of actuated valves , MASS CUSTOMIZATION acceptable.
• 3 production base, large stock, SHORT LEAD TIME, same day shipping.
• German imported manufacturing facilities , 100% Q.C passed before shipping, quality assured. Industrial standard 1 YEAR (12 months) warranty.
• ISO 9001 certificated, with extra certifications include CE, RoHS, SGS
• OEM / ODM service available.
• Over 30 YEARS manufacturer of actuated valves , MASS CUSTOMIZATION acceptable.
• 3 production base, large stock, SHORT LEAD TIME, same day shipping.
• German imported manufacturing facilities , 100% Q.C passed before shipping, quality assured. Industrial standard 1 YEAR (12 months) warranty.
• ISO 9001 certificated, with extra certifications include CE, RoHS, SGS
• OEM / ODM service available.

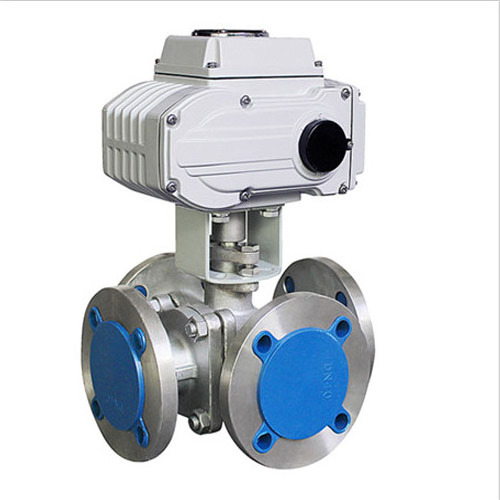

WCB 4 inch motorized control flanged ball valve 4 way actuator valve
Three ways electric ball valve with RTKD type, rotary electric actuator, AC220V, AC380V, or DC24V as the power supply voltage, receiving industrial automation control instrumentation system input (4-20mA 5VOC) or current signal to voltage signal, the control operation can be realized, the process medium proportion adjustment or two switching control. The three - way ball valve is a new type of three - way switch type regulating valve developed by the advanced technology of foreign countries. The standard ball core has L type three way two port orifice. Changing the relative angle between the core and the pipe can achieve different combination control for the three pipe fluid. The T type channel can be used for adjusting and controlling the mixture ratio of the liquid, gas, steam and other media compared to the matching function. It is widely used in the automatic control system of food, environmental protection, light industry, oil, paper and chemical industry, fire fighting, air conditioning, water supply and drainage.
L pattern three-way valve can achieve flow direction switched in the pipeline, also can make two perpendicular ports connected or turn off. T pattern three-way valve not only can achieve flow direction, but also three ports can also communicate with each other. Or turn off any one port so that the other two ports can be connected. Flexible control the pipeline flow direction of medium. Electric three-way valve is suitable for water supply, petrochemical industry, metallurgy, ming, textile, energy, paper making, food, steel piping system.
L pattern three-way valve can achieve flow direction switched in the pipeline, also can make two perpendicular ports connected or turn off. T pattern three-way valve not only can achieve flow direction, but also three ports can also communicate with each other. Or turn off any one port so that the other two ports can be connected. Flexible control the pipeline flow direction of medium. Electric three-way valve is suitable for water supply, petrochemical industry, metallurgy, ming, textile, energy, paper making, food, steel piping system.
Product features
1. It has compact structure, rapid opening and closing, smooth flow passage and small fluid resistance.
2, good sealing performance: using four side seat material polytetrafluoroethylene elastic deformation to achieve leakage seal.
3, a valve multipurpose: any mouth can be used as an entrance without leakage, three can be made into the L type opening, and also can be made into the T type.
4, the maintenance is convenient: after the system is unloaded, the whole body can be checked and repaired without dismantling the whole body.
1. It has compact structure, rapid opening and closing, smooth flow passage and small fluid resistance.
2, good sealing performance: using four side seat material polytetrafluoroethylene elastic deformation to achieve leakage seal.
3, a valve multipurpose: any mouth can be used as an entrance without leakage, three can be made into the L type opening, and also can be made into the T type.
4, the maintenance is convenient: after the system is unloaded, the whole body can be checked and repaired without dismantling the whole body.
Electric actuator ( Optional)
|
Type
|
Control type
|
Function
|
|
Electric actuator
(optional) |
ON-OFF type
|
Feedback: the active signal, passive contact signal, resistance, 4-20mA
|
|
|
Regulation type
|
Input and output signal: 4-20mA, 0-10v, 1-5v, switch, MODBUS, PROFIBUS field bus
|
|
|
Filed operation
|
The field, remote control switch regulation and MODBUS, PROFIBUS field bus
|
|
|
|
|
Specification
|
Specification of Electric Actuator
|
|
|
|
|
|
|
|
|
||||||||
|
Items Parameter
|
RTKD-05
|
RTKD-10
|
RTKD-16
|
RTKD-30
|
RTKD-60
|
RTKD-125
|
RTKD-250
|
RTKD-400
|
||||||||
|
Output torque
|
50Nm
|
100Nm
|
160Nm
|
300Nm
|
600Nm
|
1250Nm
|
2500Nm
|
4000Nm
|
||||||||
|
Rated travel time
|
5S/10S/20S
|
15S/30S
|
|
|
30S/60S
|
100S
|
100S
|
100S
|
||||||||
|
Rotation angle
|
0°-90°
|
0°-90°
|
0°-90°
|
0°-90°
|
0°-90°
|
0°-90°
|
0°-90°
|
0°-90°
|
||||||||
|
Working current
|
0.25A
|
0.48A
|
0.68A
|
0.8A
|
1.2A
|
2A
|
2A
|
2.7A
|
||||||||
|
Starting power
|
0.25A
|
0.48A
|
0.72A
|
0.86A
|
1.38A
|
2.3A
|
2.3A
|
3A
|
||||||||
|
Motor power
|
10W/F
|
25W/F
|
30W/F
|
40W/F
|
90W/F
|
100W/F
|
120W/F
|
140W/F
|
||||||||
|
Weight
|
3kg
|
5kg
|
5.5kg
|
8kg
|
8.5kg
|
15kg
|
15.5kg
|
16kg
|
||||||||
|
Power
|
AC220V, AC24V, AC110V , AC220 , AC380, DC24V (choose options)
|
|
|
|
|
|
|
|
||||||||
|
Input signal
|
4-20mA (
Modulating type
)
|
|
|
|
|
|
|
|
||||||||
|
Output signal
|
4-20mA (
Modulating type
)
|
|
|
|
|
|
|
|
||||||||
|
Insulation resistance
|
100M/500VDC
|
|
|
|
|
|
|
|
||||||||
|
Pressure withstanding
|
1500 VAC , one minutes
|
|
|
|
|
|
|
|
||||||||
|
Inbreaking protection
|
IP65/IP67
|
|
|
|
|
|
|
|
||||||||
|
Installation angle
|
360° any angle
|
|
|
|
|
|
|
|
||||||||
|
Electrical Interperation
|
one G1/2 CNCO,one Power cord connection port,one signal wire connection port
|
|
|
|
|
|
|
|
||||||||
|
Ambient humidity
|
-30°C to +60°C
|
|
|
|
|
|
|
|
||||||||
|
Pilot circuit options
|
A:with limit position switch style (standard)
|
|
|
|
|
|
|
|
||||||||
|
|
B: with neutral position switch style ( passive contact)
|
|
|
|
|
|
|
|
||||||||
|
|
C:with potentiometer style
|
|
|
|
|
|
|
|
||||||||
|
|
D: both potentiometer and neutral position switch style
|
|
|
|
|
|
|
|
||||||||
|
|
E: with control module style ( Modulating Applications)
|
|
|
|
|
|
|
|
||||||||
|
|
F: DC motor control circuit style
|
|
|
|
|
|
|
|
||||||||
|
|
G:Three-phase current 380V control circuits style
|
|
|
|
|
|
|
|
||||||||
|
|
H:Three-phase current 380V, both neutral position switch and potentiometer style
|
|
|
|
|
|
|
|
||||||||
Product Picture
More type of electric actuator
Explosion-proof Type With handwheel Type Multiturn Type Small Type
ISO 5211 Mounting
Production Flow
Packing & Delivery
Packing:
Electric Actuators packed with foam in Carton or in Wooden box.
Delivery Time: 7-15 working days after payment confirmed.
Delivery Time: 7-15 working days after payment confirmed.
