Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Smart Automation
-
Model Number:
-
57HBL(S)01,02,03,04
-
Torque:
-
upto 0.1Nm
-
Certification:
-
ce
-
Certification 2:
-
RoHS
-
Certification 3:
-
TIV
Quick Details
-
Speed(RPM):
-
3500rpm
-
Continuous Current(A):
-
customed
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Smart Automation
-
Model Number:
-
57HBL(S)01,02,03,04
-
Torque:
-
upto 0.1Nm
-
Certification:
-
ce
-
Certification 2:
-
RoHS
-
Certification 3:
-
TIV

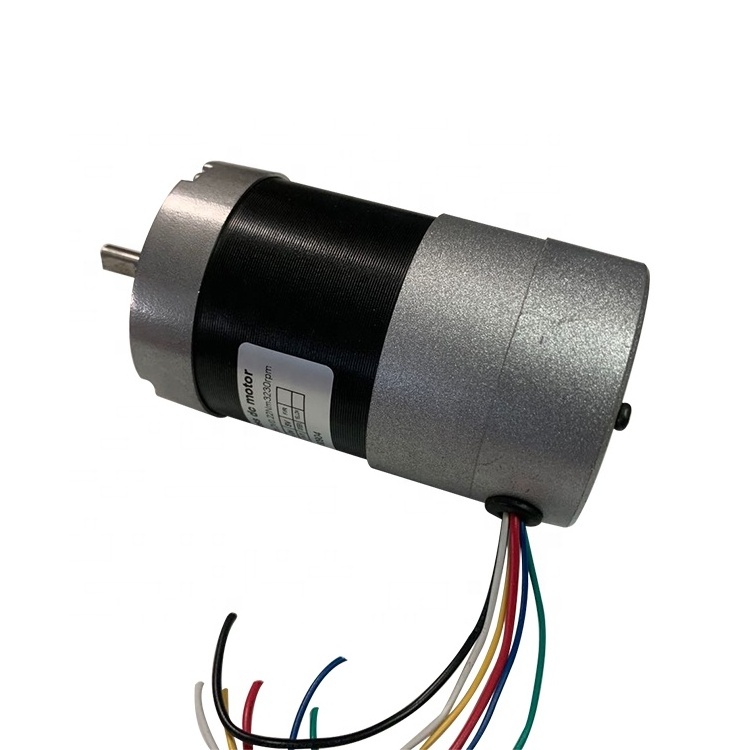

57mm Series Brushless Dc Motor for Lawn Mower
General specification:
|
Item |
Specification |
|
Winding type |
Star |
|
Hall effect angle |
120degree electrical angle |
|
Shaft run out |
0.025mm |
|
Radial play |
0.025mm@460g |
|
End play |
0.025mm@4000g |
|
Max.radial force |
75N@10mm from the flange |
|
Max.axial force |
15N |
|
Insulation class |
Class B |
|
Dielectric Strength |
500VDC for one minute |
|
Insulation resistance |
100MΩMin.500VDC |
BELOW IS ONLY TYPICAL MODEL
WE MAKE CUSTOMED VOLTAGE, WINDING, SHAFT, MOUNTING
Rated power supply 24 V DC
Rated output power 37 W
Poles 4
Phase 3
No load speed 4400±10%rpm rpm
Rated speed 3500±10%rpm rpm
Rated torque 0.1 N.m
Rated current <=2.2 A
Insulation class F 155°C
Protective enclosure rating IP54
