Quick Details
-
Brand Name:
-
Beacon
-
Model Number:
-
YYQ-5000A
-
type:
-
balancing machine
-
Power supply:
-
220V/380V
-
Color:
-
Customer Required
-
Material:
-
Steel Material
-
Package:
-
Plywood Case
-
Mass of workpiece:
-
300-5000
-
Distance between two supporting mm:
-
300-3500
-
Max.diameter of workpiece:mm:
-
5000
-
Balancing speed: r/min:
-
180-1800
Quick Details
-
Warranty:
-
1 years, 12 Months
-
Power:
-
Electronic
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Beacon
-
Model Number:
-
YYQ-5000A
-
type:
-
balancing machine
-
Power supply:
-
220V/380V
-
Color:
-
Customer Required
-
Material:
-
Steel Material
-
Package:
-
Plywood Case
-
Mass of workpiece:
-
300-5000
-
Distance between two supporting mm:
-
300-3500
-
Max.diameter of workpiece:mm:
-
5000
-
Balancing speed: r/min:
-
180-1800

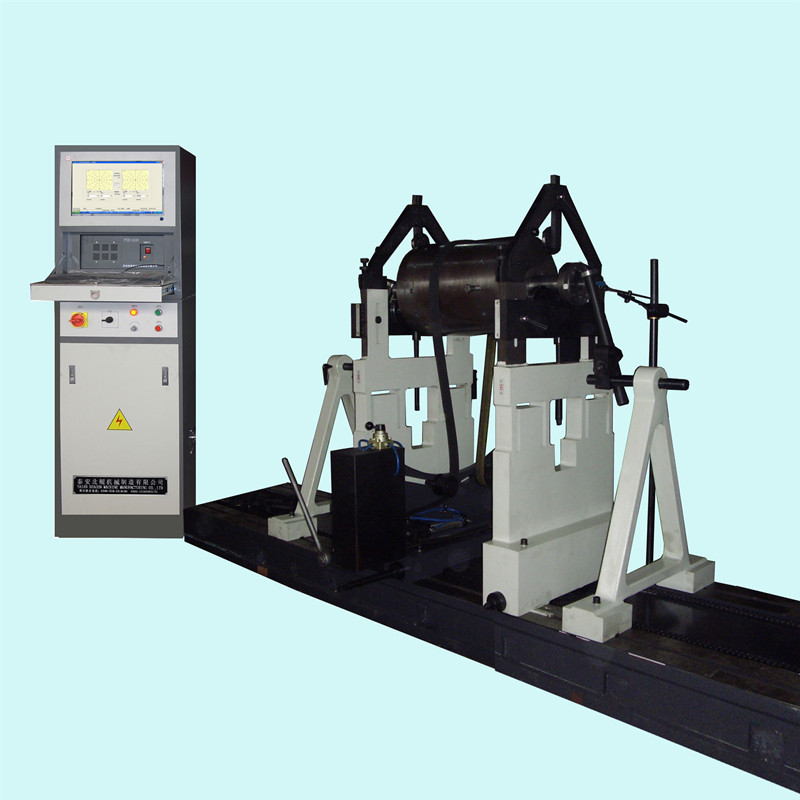

YYQ series horizontal soft support crankshaft dynamic balancing machine YYQ-5000A with roller bearing and gimbal couplings drive
This series is hard supporting horizontal dynamic balance machine, with roller bearing, the circle take drag, regular for double speed motor drive, "A" type for frequency conversion motor speed and frequency converter, the industrial control computer for data processing, color screen real-time display don’t balance phase Angle and value, real-time speed, lathe bed all use whole casting, the stability is good.Widely used in electric motors, blower, diesel engine, auto parts, etc, can be in the single side, double side and multiple correction plane balance measurement, suitable for axle, dish out and center of gravity of the rotor. Have high efficiency, precision accurate, show intuitional, reliable quality, easy maintenance, the characteristics of software with ordinary workpiece and standard rotor two calibration function, overcoming the other hard supporting balance machine measurement system to users to calibration equipment of the defect, and a variety of measurement method and function to choose, can realize the input parameters, preview, the experiment, the results storage, print, operating all adopt the localization menu structure, the man-machine dialogue, automatic hints.
Details at a glance
industrial control computer 19 "LCD color screens
Windows XP Chinese and English system double choice
With GB-2000 general microcomputer balance measuring system
Automatic program-controlled amplifier module
Any workpiece scaling function, arbitrary Angle clamp compensating and workpiece information storage
Qualified quantity showed that adjustment function measurement cycle
Signal amplifier amplification and manual adjustment, signal self-check, automatic diagnosis
Vector graphics, waveform and out of balance, shows at the same time
Surplus balancing g and unbalanced torque, the g cm, g mm can choose to display
Optional function
1. Balance Angle automatic tracking function
2. Parking automatic positioning function
3. Vector Angle function decomposition
4. Lathe bed according to user requirements lengthen
5. Supporting shaft neck can according the user demand increased
|
Model |
YYQ-2000 |
YYQ-3000 |
YYQ-5000 |
YYQ-8000 |
YYQ-20000 |
|
Working piece quantity range: kg |
30-2000 |
100-3000 |
300-5000 |
400-8000 |
1000-20000 |
|
Working piece diameter: mm |
Φ 1800 |
Φ 20 00 |
Φ 2400 |
Φ 2400 |
Φ 2800 |
|
Distance between two supporting ” mm |
200-2600 |
200-2600 |
300-3500 |
300-3500 |
300-5200 |
|
Shaft diameter range: mm |
Φ 20-130 |
Φ 20-130 |
Φ 20-150 |
Φ 40-180 |
Φ 50-260 |
|
Φ 120-240 |
Φ 130-260 |
Φ 120-320 |
|||
|
Φ 120-240Optional |
Φ 190-300 Optional |
Φ 210-360 Optional |
Φ 280-380 Optional |
Φ 240-500 |
|
|
Diameter range at the lap belt drag : mm |
Φ 40-800 |
Φ 40-900 |
Φ 250-900 Diameter can be increased to:1200 |
Φ 250-900 Diameter can be increased to:1200 |
Φ 300-2000 |
|
Balancing speed: r/min |
18 0-2500 |
18 0-2500 |
18 0 -18 00 |
180-1800 |
180-800 |
|
Min. achievable residual unbalance: gmm/kg |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.5 |
|
unbalance reduction ratio: % |
≥90 |
≥90 |
≥90 |
≥90 |
≥90 |
|
Driver power: KW |
7.5 |
11 |
15 |
15 |
37 |
|
speed adjustment mode: |
Frequency |
Frequency |
Frequency |
Frequency |
Frequency |
