Quick Details
-
Application:
-
Bathroom
-
Design Style:
-
Modern
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Shield
-
Model Number:
-
XPS.S-JSB
-
Type:
-
XPS Boards
-
Material:
-
XPS/EPS+fiberglass mesh+cement mortar
-
Xps Density:
-
32-36kg/m3
-
Compressive strength:
-
250kpa-500kpa
-
Xps color:
-
pink ,blue, white,green or others
-
Name:
-
Factory styrofoam sheets
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
Others
-
Application:
-
Bathroom
-
Design Style:
-
Modern
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Shield
-
Model Number:
-
XPS.S-JSB
-
Type:
-
XPS Boards
-
Material:
-
XPS/EPS+fiberglass mesh+cement mortar
-
Xps Density:
-
32-36kg/m3
-
Compressive strength:
-
250kpa-500kpa
-
Xps color:
-
pink ,blue, white,green or others
-
Name:
-
Factory styrofoam sheets
Products Description

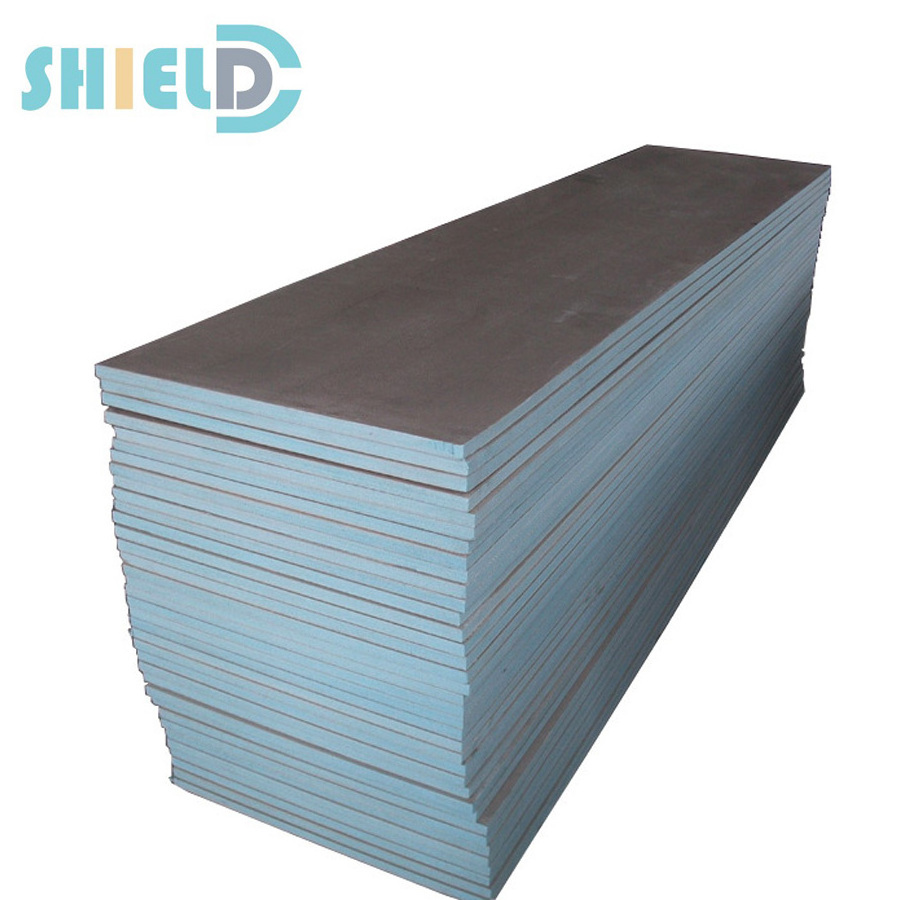

Shield Tile Backer Board is the innovative alternatives to traditional cement backers. Its waterproof XPS core, fiberglass
reinforced and cement coating gives the panels strength and vapor-retardant, making Shield panels are perfect choice for a variety
of interior and exterior applications, such as the interlayer to walls or floors and thermal insulation board in underfloor
heating systems, can be tiled with all types of ceramic, glass or stone tile whether they are mosaic or large format tiles.
Especially large and thin tile benefits of the durability of the Shield Tile Backer Board and the even surface it provides.
reinforced and cement coating gives the panels strength and vapor-retardant, making Shield panels are perfect choice for a variety
of interior and exterior applications, such as the interlayer to walls or floors and thermal insulation board in underfloor
heating systems, can be tiled with all types of ceramic, glass or stone tile whether they are mosaic or large format tiles.
Especially large and thin tile benefits of the durability of the Shield Tile Backer Board and the even surface it provides.
Characteristics of Shield Tile Backer Board
1. 100% waterproof, Environment friendly(free of CFC and HCFC)
2. High-rigidity and durability
3. Close bond to any tiling walls or floors
4. Available at various thickness and sizes
5. Compatibility to multiple substructures
6. Vapor retardant against mildew
7. Light-weight, easy to handle and cut with utility knife
2. High-rigidity and durability
3. Close bond to any tiling walls or floors
4. Available at various thickness and sizes
5. Compatibility to multiple substructures
6. Vapor retardant against mildew
7. Light-weight, easy to handle and cut with utility knife
Technical Data
|
Property
|
Assessed to
|
Rating
|
|
Thermal Conductivity (>5yrs)
|
BS EN 13164
|
0.030-0.036 Watt/mK
|
|
Compressive Strength (10% deflection)
|
EN 826
|
≥300kpa
|
|
Bond Strength
|
AS/NZS 2588
|
401N
|
|
Maximum Tile Loading Weight
|
CERAM 121107
|
62kg/m2
|
|
Flexural Strength
|
ASTM C203
|
2.05 ± 0.02 Mpa
|
|
Water Vapour Permeability (Sd )
|
DIN EN 12086
|
1.5 m
|
|
Resistance to Body Impact
|
ETAG003
|
3×120N/m
|
|
Bending Stiffness, EI (20mm/30mm )
|
EN 12089
|
285kNmm2/mm ,399kNmm/mm
|
|
Working Temperature Range
|
N/A
|
-50℃ to +80℃
|
|
Item
|
Thickness (mm)
|
Width (mm)
|
Length (mm)
|
Weigth (kg/piece)
|
Packaging (sheet/box)
|
|||||
|
TB24410
|
10
|
600
|
2440
|
4.21
|
10
|
|||||
|
TB24412
|
12
|
600
|
2440
|
4.24
|
5
|
|||||
|
TB24420
|
20
|
600
|
2440
|
4.76
|
5
|
|||||
|
TB24430
|
30
|
600
|
2440
|
5.15
|
5
|
|||||
|
TB24440
|
40
|
600
|
2440
|
5.71
|
5
|
|||||
|
TB24450
|
50
|
600
|
2440
|
6.28
|
5
|
|||||
|
TB24460
|
60
|
600
|
2440
|
6.84
|
5
|
|||||
|
TB24480
|
80
|
600
|
2440
|
7.79
|
5
|
|||||
|
TB12206
|
6
|
600
|
1220
|
1.77
|
20
|
|||||
|
TB12210
|
10
|
600
|
1220
|
2.11
|
10
|
|||||
|
TB12212
|
12
|
600
|
1220
|
2.12
|
10
|
|||||
|
TB12220
|
20
|
600
|
1220
|
2.38
|
5
|
|||||
|
TB12230
|
30
|
600
|
1220
|
2.56
|
5
|
|||||
|
TB12240
|
40
|
600
|
1220
|
2.86
|
5
|
|||||
|
TB12250
|
50
|
600
|
1220
|
3.14
|
5
|
|||||
|
Remark: other sizes can be customized.
|
|
|
|
|
|
|||||
1. Where is our company located?
-Hangzhou city of Zhejiang province, near Shanghai
2. Can you send samples to us?
-Yes. Free samples could be provided, but you should pay for the freight cost. (Except the shower tray baord with drain fittings).
3. What about the delivery time?
-25-30 days.
4. What's your delivery method?
-By sea, by air as your request.
5. Can you do OEM?
-Yes. OEM is welcomed here. We have high quality control system to make your design come true.
6. Why choose us?
-Hones supplier to worldwide buyers.
-Factory, direct supplier, competitive price.
-Know how to control the costing with long term producing experience.
-Warm and friendly service and tuide.
- 3 shifts workers for xps foam board for 24 hours production high capacity.
-2 XPS foam board production line for high production capacity and fast delivery.
- Small and big orders are welcomed from the world wide.
-Hangzhou city of Zhejiang province, near Shanghai
2. Can you send samples to us?
-Yes. Free samples could be provided, but you should pay for the freight cost. (Except the shower tray baord with drain fittings).
3. What about the delivery time?
-25-30 days.
4. What's your delivery method?
-By sea, by air as your request.
5. Can you do OEM?
-Yes. OEM is welcomed here. We have high quality control system to make your design come true.
6. Why choose us?
-Hones supplier to worldwide buyers.
-Factory, direct supplier, competitive price.
-Know how to control the costing with long term producing experience.
-Warm and friendly service and tuide.
- 3 shifts workers for xps foam board for 24 hours production high capacity.
-2 XPS foam board production line for high production capacity and fast delivery.
- Small and big orders are welcomed from the world wide.
