Quick Details
-
Material:
-
Body,Handle-zinc alloy,Lock panel-stainless steel 304
-
Finish:
-
black painted
-
Free sample:
-
Available, but freight collect
-
Certification:
-
ISO9001:2008
-
Application:
-
server rack,networking,electric boards
-
OEM/ODM,small order:
-
accept
-
IP Waterproof rating:
-
IP54
-
Maximum Static Load:
-
270N
-
Maximum Input Torque:
-
25N.m
Quick Details
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
LIPSON
-
Type:
-
L Handle Latch-Waterproof (Padlockable)
-
Material:
-
Body,Handle-zinc alloy,Lock panel-stainless steel 304
-
Finish:
-
black painted
-
Free sample:
-
Available, but freight collect
-
Certification:
-
ISO9001:2008
-
Application:
-
server rack,networking,electric boards
-
OEM/ODM,small order:
-
accept
-
IP Waterproof rating:
-
IP54
-
Maximum Static Load:
-
270N
-
Maximum Input Torque:
-
25N.m
LM-842 Industrial Handle Power Distribution Cabinet Door Switchboard Board Control Box Electrical Panel Lock Cam Latch
Product description for electrical panel lock
1.Material--
Body,Handle-zinc alloy,Lock panel-stainless steel 304
2.Finish--
Body,Handle-black painted
3.Feature--
Right and Left Side Opening
4.Application--Communication cubicle, control panel, cabinet door, machinery equipment.
Maximum Static Load: 270N
Maximum Input Torque: 25N.m

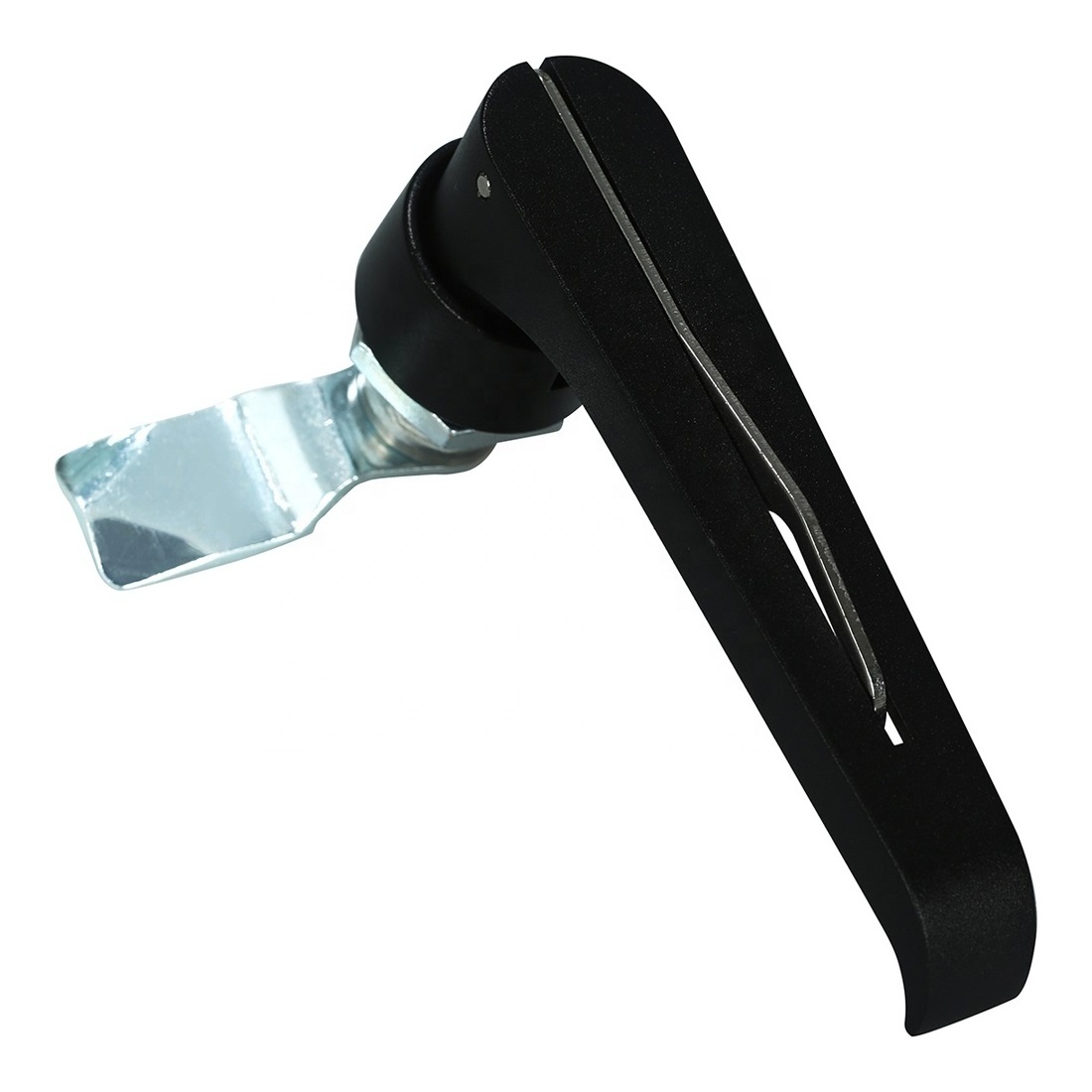

Pictures of electrical panel lock
Size specification of electrical panel lock
| Product Detail | |
| Product Name | panel handle lock, Swinghandle System, Flush Swing Handle, Industrial cabinet lock, lock for electrical panel, Electric panel lock, electric latch, electrical panel latch, industrial cabinet latch, electric cabinet latch, electric cabinet lock, swing cabinet latch, swing cabinet lock, flush lock, lever latches, electrical panel door lock, Swing Handle lock, Locking Cabinet Latch |
| Material | Body:Zinc Die Casting Body |
| Shaft, cylinder:Zinc alloy die cast | |
| Cam:Steel with zinc plating | |
| Finish | LM-713-A: Sliver powder coated |
| LM-713-B: Black Powder coated | |
| Feature | 1) Smallprotrusion from the panel surface. |
| 2) Handle can operate with the push-button when unlocking. | |
| 3) Push Buton is incorporated in the lift handle to increase the effective length of the grip so operation is easy | |
| 4) For both left hand and right hand use.(the left hand and right hand use can be changed by reversing the cam and stopper plate. | |
| Accessary Includes | 2keys, screws, stopper plate and installation plate. |
| Panel Drilling dimensions | 102.6*26.7mm |
| Usage and Feature | Automotive, distribution panel, Farm Equipment, Metal or nonmetal cabinet, public telephones, metro auto-gate, Intelligent Terminal Device, Financial Terminals, electrical cabinet,Vending Machine,Strongbox, Advertising Box and etc. |
| Sample | Free samples in reasonable quantity for checking quality, freight charge should be paid by customer. |
| MOQ | 100 PCS |
| Certification | ISO9001:2008 |
| Payment | T/T, L/C, Paypal or others for negotiation. |
| OEM/ODM orders are accepted | |
Packing information of box panel lock
packing information of plane lock
