Quick Details
-
Number of Row:
-
Single row
-
Model Number:
-
BB17-2K
-
Seals Type:
-
Sealed
-
Place of Origin:
-
China
-
Thickness:
-
12 mm
-
Weigth:
-
0.07KG
-
Material:
-
chrome steel (GCR-15)
-
H.S code:
-
84835090
-
Standard:
-
ISO9001:2008
-
Other brand:
-
As demands
-
Ex-stock:
-
2350 pieces
-
Small order:
-
accepted
-
Sample:
-
Free
-
Bearing type:
-
one way clutch bearing BB series
Quick Details
-
Applicable Industries:
-
Garment Shops, Machinery Repair Shops, Home Use, Retail, Energy & Mining
-
Bore Size:
-
0 - 30 mm
-
Precision Rating:
-
P0,P6,P5
-
Number of Row:
-
Single row
-
Model Number:
-
BB17-2K
-
Seals Type:
-
Sealed
-
Place of Origin:
-
China
-
Thickness:
-
12 mm
-
Weigth:
-
0.07KG
-
Material:
-
chrome steel (GCR-15)
-
H.S code:
-
84835090
-
Standard:
-
ISO9001:2008
-
Other brand:
-
As demands
-
Ex-stock:
-
2350 pieces
-
Small order:
-
accepted
-
Sample:
-
Free
-
Bearing type:
-
one way clutch bearing BB series
JAPAN one way cam clutch bearing BB17-2K
One way cam clutch bearing introduction :
General information of installation and usage for cam clutch
1. Bearing type Cam Clutch series are designed for press fit installation.
2. BB-1K and BB-2GD 1K series have a keyway on the inner race. Keyways, except size 25 are manufactured by
DIN 6885. 3, BB40-1K and BB40-2GD 1K is manufactured by DIN 6885. 1.
3. BB-2K series has a keyway on both the inner and outer race.
4. Correct interference dimensions at the shaft and the housing must be maintained to obtain maximum bearing
and clutch performance.
5. Refer to the table in next page for tolerance of the shaft and housing for each series.
6. BB-2GD and BB-2GD 1K series have special lip seals for the effective protection against dust.
7. The arrow on the inner race shows the direction of inner race engaging.
8. To install the clutch, use a press tool of the appropriate diameter to apply even pressure over the entire face of
the inner and outer race.
9. Do not hammer or apply other shock to the clutch.
10. Make sure the housing has enough strength to withstand the pressure required for the press fitting installation
of the Clutch.
11. Operating temperature range: –30°C to +100°C (Consult us for the temperature that exceeds this range)
Lubrication
1. Since grease is already applied before delivery, there is no need to apply and grease before use.
2. If the clutch is used with an oil lubricant, the oil lubrication should be applied inside the unit always.
3. Do not use greases or lubricants with EP additives.
One way cam clutch bearings design :
JAPAN one way cam clutch bearing BB17, BB17-1K, BB17-2K specfication:
Name | Value |
Brand | JAPAN,SYBR ,OEM |
Model | BB17,BB17-1K, BB17-2K |
Production Capacity | 50000 Piece/Pieces per Month |
Automatic Grade | P6 P5 P4 |
Material | GCr15 |
name | one way bearing |
Place of Origin | China |
Year | 2016 |
Certification | ISO9001:2000 |
Dimension(L*W*H) | 30X40X12mm |
Weight | 0.06kg |

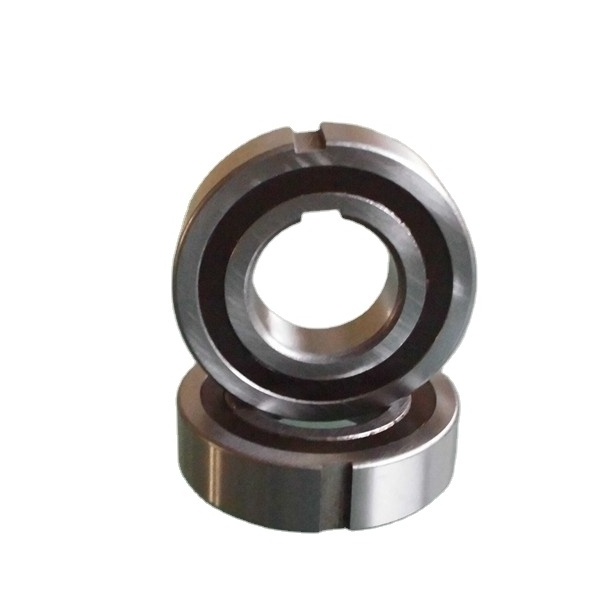

JAPAN one way cam clutch bearing BB Series BB17, BB17-1K, BB17-2K Pictures:
One way cam clutch bearings for your reference:
type | Size | Bearing series | Bearing loads | Weight | Drag torque | |||||||
dynamic | static | |||||||||||
CSK..P (BB..-1K ) (KK..P) (OW..P) |
d | TKN1) | nmax | D | L | b | t | C | C0 | TR | ||
[mm] | [Nm] | [min-1] | [mm] | [mm] | [mm] | [mm] | [kN] | [kN] | [kg] | [Ncm] | ||
12 | 6201 | 9.3 | 10000 | 32 | 10 | 6.1 | 2.77 | 0.04 | 0.7 | |||
15 | 6202 | 17 | 8400 | 35 | 11 | 7.4 | 3.42 | 0.06 | 0.9 | |||
17 | 6203 | 30 | 7350 | 40 | 12 | 7.9 | 3.8 | 0.07 | 1.1 | |||
20 | 6204 | 50 | 6000 | 47 | 14 | 9.4 | 4.46 | 0.11 | 1.3 | |||
25 | 6205 | 85 | 5200 | 52 | 15 | 10.7 | 5.46 | 0.14 | 2 | |||
30 | 6206 | 138 | 4200 | 62 | 16 | 11.7 | 6.45 | 0.21 | 4.4 | |||
35 | 6207 | 175 | 3600 | 72 | 17 | 12.6 | 7.28 | 0.3 | 5.8 | |||
40 | – | 325 | 3000 | 80 | 22 | 15.54 | 12.25 | 0.5 | 7 | |||
CSK..PP (BB..-2K) (KK..PP) (OW..PP) |
15 | 6202 | 17 | 8400 | 35 | 11 | 2 | 0.6 | 7.4 | 3.42 | 0.06 | 0.9 |
17 | 6203 | 30 | 7350 | 40 | 12 | 2 | 1 | 7.9 | 3.8 | 0.07 | 1.1 | |
20 | 6204 | 50 | 6000 | 47 | 14 | 3 | 1.5 | 9.4 | 4.46 | 0.11 | 1.3 | |
25 | 6205 | 85 | 5200 | 52 | 15 | 6 | 2 | 10.7 | 5.46 | 0.14 | 2 | |
30 | 6206 | 138 | 4200 | 62 | 16 | 6 | 2 | 11.7 | 6.45 | 0.21 | 4.4 | |
35 | 6207 | 175 | 3600 | 72 | 17 | 8 | 2.5 | 12.6 | 7.28 | 0.3 | 5.8 | |
40 | – | 325 | 3000 | 80 | 22 | 10 | 3 | 15.54 | 12.25 | 0.5 | 7 | |
CSK..P-2RS (BB..-2GD-1K) (KK..P-2RS) (OW..P-2RS) |
12 | – | 9.3 | 10000 | 32 | 14 | 6.1 | 2.77 | 0.05 | 3 | ||
15 | – | 17 | 8400 | 35 | 16 | 7.4 | 3.42 | 0.07 | 4 | |||
17 | – | 30 | 7350 | 40 | 17 | 7.9 | 3.8 | 0.09 | 5.6 | |||
20 | – | 50 | 6000 | 47 | 19 | 9.4 | 4.46 | 0.145 | 6 | |||
25 | – | 85 | 5200 | 52 | 20 | 10.7 | 5.46 | 0.175 | 6 | |||
30 | – | 138 | 4200 | 62 | 21 | 11.7 | 6.45 | 0.27 | 7.5 | |||
35 | – | 175 | 3600 | 72 | 22 | 12.6 | 7.28 | 0.4 | 8.2 | |||
40 | – | 325 | 3000 | 80 | 27 | 15.54 | 12.25 | 0.6 |
10
|
CSK bearings introduction:
1. CSK bearing is one way bearing with a sprag type.
2. CSK bearing has CSK..P, CSK..PP series.
3. CSK bearins series are composed of a 62 series ball bearing (except CSK8 and 40).
4. CSK bearing or One-way bearings are widely used in mining /hydraulic / textile / printing / washing machines, conveyor systems and so on.
5. One way bearing (freewheel bearing) CSK series, HF, HFL, FCB, B200 series.
6. One way clutch (overrunning clutch), GFR, MZ series.
CSK—P and CSK—PP series are available upon request. CSK--P has the same construction and outside dimensions as type CSK, but has a keyway on the inner race; CSK--PP features a keyway in both the inner and outer race. The Model CSK—P clutches must be secured to the shaft by customer supplied snap ring, set collar, spacer, etc. The outer race is secured with a press fit to a N6 tolerance. The Model CSK—PP clutches have a keyway on both races and must be secured by customer supplied snap ring, set collar, spacer, etc
One way clutch CSK type | ||||||||
Bearing No. | Dimension (mm) | Torque | Mass | |||||
(Stieber-Germany) | Japan | d | D | B | (N.m) | (kg) | ||
CSK8 | CSK 8P | CSK 8PP | 8 | 22 | 9 | 2.5 | 0.015 | |
CSK12 | CSK 12P | CSK 12PP | 12 | 32 | 10 | 7.5 | 0.04 | |
CSK15 | CSK 15P | CSK 15PP | BB15 | 15 | 35 | 11 | 13.5 | 0.05 |
CSK17 | CSK 17P | CSK 17PP | BB17 | 17 | 40 | 12 | 24.5 | 0.07 |
CSK20 | CSK 20P | CSK 20PP | BB20 | 20 | 47 | 14 | 40 | 0.11 |
CSK25 | CSK 25P | CSK 25PP | BB25 | 25 | 52 | 15 | 68 | 0.14 |
CSK30 | CSK 30P | CSK 30PP | BB30 | 30 | 62 | 16 | 110 | 0.21 |
CSK35 | CSK 35P | CSK 35PP | BB35 | 35 | 72 | 17 | 140 | 0.3 |
CSK40 | CSK 40P | CSK 40PP | BB40 | 40 | 80 | 22 | 260 |
0.5
|
One way clutch bearing CSK Series pictures : n w cluth bearing CSK seri
Application for ball bearing one way clutch bearing:
• Paper moving for copiers, fax machines, paper towel dispensers, etc.
• Exercise equipment,back stop applications.
• Appliances,free wheel drives ,starter systems.
• Two-speed gearboxes
• Rack indexing drives
• Converters, non-return devices and transcendental clutches.
• Fishing Reels, RC Cars, RC Helis, RC Engines
